TCAN1057AEVDRQ1: Features, Specs & More
In the rapidly evolving automotive electronics landscape, robust and efficient in-vehicle communication is non-negotiable. The TI TCAN1057AEVDRQ1 from Texas Instruments is a standout choice for automotive CAN (Controller Area Network) communication. In this comprehensive article, we'll delve into the intricacies of the TCAN1057AEVDRQ1, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TCAN1057AEVDRQ1's Manufacturer
TCAN1057AEVDRQ1's Overview
The TI TCAN1057AEVDRQ1 is a high-speed CAN transceiver that supports data rates up to 8 Mbps. It is designed to provide robust differential communication in automotive and industrial networks. Compliant with ISO 11898-2 standards, it operates with a 5V supply and offers both normal and silent modes for efficient power management and system flexibility.
Key Features
Let's delve into the standout features that make the TCAN1057AEVDRQ1 a standout in the world of electronics:
· Operates at data rates up to 8 Mbps.
· Supports both normal and silent power-down modes.
· Designed for a 5V power supply with a tolerance of 4.5V to 5.5V.
· Offers low supply current up to 130 mA max.
· Fully compliant with ISO 11898-2 CAN standard.
· Automotive AEC-Q100 qualified for harsh environments.
· Temperature range spans from -40°C to 150°C.

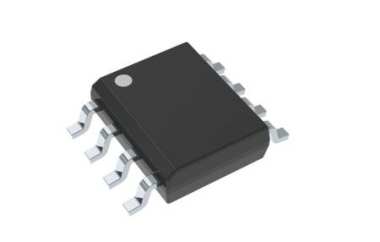

· 8-pin SOIC package for compact and reliable surface-mount integration.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TCAN1057AEVDRQ1:
Type | Parameter |
Product Category | Transceiver |
Maximum Data Rate | 8Mbps |
Number of Transceivers | 1 |
Standard Supported | ISO 11898-2 |
Minimum Operating Supply Voltage (V) | 4.5 |
Typical Operating Supply Voltage (V) | 5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Maximum Supply Current (mA) | 130 |
Power Down Mode | Normal|Silent |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 150 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.5(Max) |
Package Width | 3.98(Max) |
Package Length | 5(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | SOIC |
Pin Count | 8 |
Applications
The TCAN1057AEVDRQ1 finds its strength in a wide range of automotive applications:
· Advanced Driver Assistance Systems (ADAS): Reliable data communication between sensors and control units.
· Automotive Gateways: Enables fast and accurate communication across in-vehicle networks.
· Body Control Modules: Supports comfort, lighting, and safety features with stable CAN communication.
· Infotainment Systems: Ensures seamless interaction between the head unit and audio/video modules.
TCAN1057AEVDRQ1's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
As automotive systems become more intelligent and interconnected, the need for high-speed, high-reliability communication components grows. The TI TCAN1057AEVDRQ1 delivers exactly that—exceptional performance, rugged durability, and seamless integration into your CAN-based networks. It's a must-have for any automotive electronics designer looking to future-proof their systems.
