000MCIMX283CVM4B: Features, Specs & More
Today, we're diving into the realm of microprocessors with a spotlight on Freescale Semiconductor, Inc. (now part of NXP Semiconductors) and their impressive MCIMX283CVM4B. In this comprehensive article, we'll delve into the intricacies of the MCIMX283CVM4B, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MCIMX283CVM4B's Overview
The MCIMX283CVM4B is a member of the i.MX28 family, designed as a versatile applications processor with a core architecture based on ARM926EJ-S. This microprocessor stands out for its excellent performance and energy efficiency, making it an ideal choice for various embedded applications. With a maximum clock rate of 454 MHz, it offers robust processing capabilities for demanding tasks. Its flexible interfacing options, including Ethernet, I2C, SPI, UART, and USB, provide seamless connectivity with a range of devices.
Key Features
Let's delve into the standout features that make the MCIMX283CVM4B a standout in the world of electronics:
· The microprocessor's maximum clock rate of 454 MHz ensures fast and efficient data processing.
· With 128 KB of ROM and RAM, the chip can handle a wide array of applications and data storage needs.
· MCIMX283CVM4B supports multiple interfaces, including Ethernet, I2C, SPI, UART, and USB, for seamless device connectivity.
· The presence of 8 PWM channels offers flexibility for controlling motors and other peripherals.
· Operating between -40°C and 85°C, it can handle extreme temperatures while maintaining optimal performance.

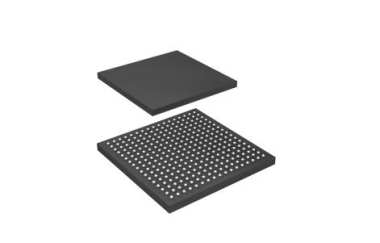

· Packaged in a 289-pin MAP-BGA tray, it is suitable for surface mounting, saving space and enhancing design options.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MCIMX283CVM4B:
Type | Parameter |
Family Name | i.MX28 |
Device Core | ARM926EJ-S |
Maximum Clock Rate (MHz) | 454 |
Program Memory Type | ROM |
Data Bus Width (bit) | 32 |
Program Memory Size | 128KB |
RAM Size | 128KB |
Type | Applications Processor |
Processing Unit | Microprocessor |
PWM | 8 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Interface Type | Ethernet/I2C/SPI/UART/USB |
SPI | 4 |
I2C | 2 |
I2S | 0 |
UART | 6 |
Data Cache Size | 32KB |
USB | 2 |
Instruction Cache Size | 16KB |
USART | 0 |
CAN | 0 |
PCI | 0 |
Ethernet | 1 |
Programmability | Yes |
Core Architecture | ARM |
Ethernet Speed | 10Mbps/100Mbps |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.03(Max) |
Package Width | 14 |
Package Length | 14 |
PCB changed | 289 |
Standard Package Name | BGA |
Supplier Package | MAP-BGA |
Pin Count | 289 |
Lead Shape | Ball |
Applications
The MCIMX283CVM4B excels in a variety of applications, such as:
· Industrial Automation: Its robust performance and versatile interfaces make it ideal for controlling complex industrial machinery.
· Consumer Electronics: This microprocessor supports devices like smart home appliances and multimedia systems.
· Networking Equipment: Its Ethernet capabilities make it suitable for routers and other networking gear.
· Embedded Systems: The MCIMX283CVM4B is a solid choice for microcontroller-based systems that require efficient processing and connectivity.
MCIMX283CVM4B's Manufacturer
Freescale Semiconductor, Inc., now seamlessly integrated into NXP Semiconductors, stands as a pioneering force in the semiconductor industry. Renowned for its cutting-edge technologies, Freescale Semiconductor played a pivotal role in shaping the landscape of embedded solutions and microcontrollers. With a commitment to innovation and a rich legacy, the company has consistently delivered high-performance semiconductor solutions, catering to a diverse range of industries. Following its merger with NXP Semiconductors, a global semiconductor powerhouse, the legacy of Freescale continues to thrive, fostering advancements in automotive, industrial, and IoT applications.
Conclusion
The MCIMX283CVM4B from NXP Semiconductors is a versatile and high-performance applications processor that can elevate your projects. With its powerful core, wide range of interfaces, and flexible programmability, this processor is a valuable asset for any electronics enthusiast or professional.
