CPLD: Driving Market Growth and Shaping the Future of Programmable Logic Devices

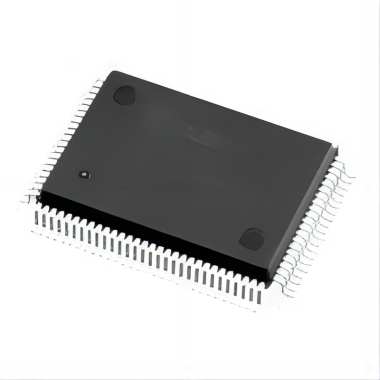

Complex Programmable Logic Device (CPLD) is an important integrated circuit in the electronic components industry. It is a programmable digital logic device with high logic density and flexibility. CPLD can achieve different logic functions through programming, making it suitable for various application domains. It can replace discrete logic gate circuits, providing higher integration and reliability. CPLD is widely used in communication equipment, industrial control, embedded systems, and consumer electronics.

The internal structure of CPLD consists of a Programmable Logic Array (PLA) and Programmable Input/Output (PIO) units. CPLD configures logic functions and signal routing into the PLA and PIO using a configuration file. The configuration file can be programmed using a programmer to achieve different logic functions. The logic density of CPLD determines the complexity of the logic functions it can implement.

In recent years, the market shipments of CPLD have shown a steady growth trend. In 2019, the global CPLD shipments were approximately 250 million units. This number increased to 280 million units in 2020. In 2021, the CPLD market continued to grow with shipments reaching around 300 million units.

There are several well-known CPLD manufacturers globally. Among them, Xilinx and Altera (now acquired by Intel) from the United States are two major manufacturers. They hold a significant position in the CPLD market, offering various series and specifications of CPLD products for a wide range of applications. Additionally, Lattice Semiconductor, Microchip Technology, Cypress Semiconductor, and other renowned manufacturers also play important roles in the CPLD market. These manufacturers are known for their high-quality, reliable, and innovative products, earning recognition from global customers.

The future prospects of CPLD are promising. With the continuous growth of digital design requirements and technological advancements, CPLD will continue to evolve and develop. Future CPLDs may become more integrated and high-performance, offering larger logic capacity, faster clock speeds, and lower power consumption.
