Transform Salvaged Drill into Precision Drilling and Tapping Machine

If you enjoy building various devices and need drilling and tapping, using just a handheld drill can be exhausting, so you can follow this guide to make a drilling and tapping machine.

Main parts list:

1. Salvaged 18V lithium drill core

2. 4 x 25cm long, 8mm diameter hard shafts

3. 4 x 8mm shaft clamps

4. 8 x 8mm sliders

5. 1 x 60 reduction motor bracket with a 44mm inner diameter to secure the drill core

6. 4 x 100*12mm springs

7. 1 x 403016mm and 1 x 302016mm bamboo anvil boards, with the larger one used as the base and the smaller one cut into a reverse Z-shape to connect the sliders and drill core

8. Several M3, M4, and M5 screws and nuts

9. 1 x 22*16mm wooden rod for the pressure rod

10. 1 x 1W LED light, 1 meter of 1.5mm² wire

11. 1 x 6-pin, 3-gear switch for forward and reverse control

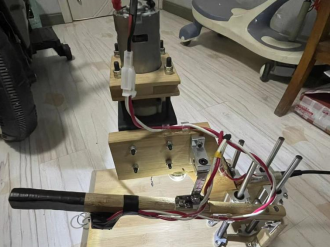

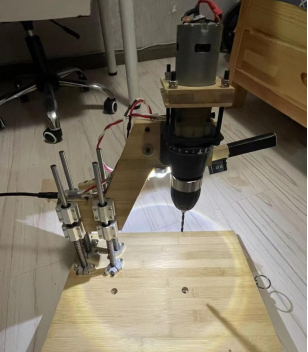

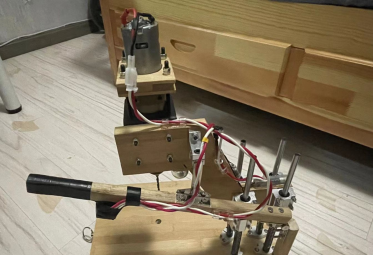

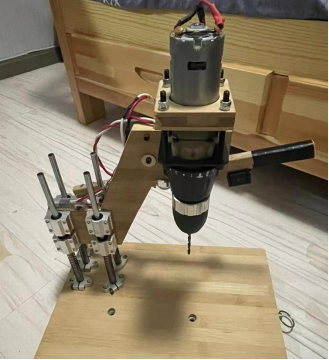

The finished product may not be aesthetically pleasing, but it has good precision and achieves the desired effect.

In conclusion, for those who enjoy DIY projects and require drilling and tapping capabilities, building a drilling and tapping machine offers a more efficient and less tiring alternative to using a handheld drill. By following the provided guide and assembling the necessary components, including a salvaged 18V lithium drill core and various supporting parts, you can create a functional machine with good precision and the desired performance. Although the final product may not be visually appealing, its practicality and effectiveness make it a valuable addition to any workshop or DIY enthusiast's toolkit.
