Upgrade Your Honda CRV Audio System for Home Use with Ease!

If you If you're struggling with how to dismantle and modify the audio system of the 2020 Honda CRV for home use, or if you have a used audio system of this model, then you can follow these steps together.

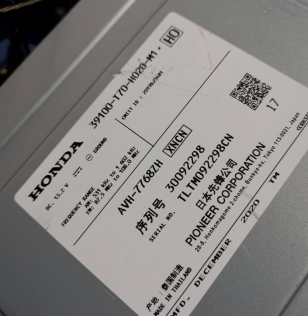

First, purchase a power cable, USB plug, and antenna online. The functionality of the used home audio system is not significantly affected. Model: HONDA 39100-T70-H020-M1.

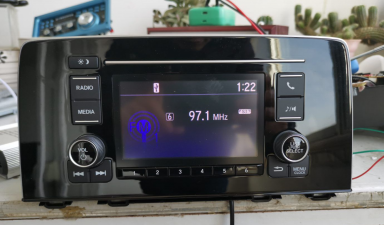

Frontal Appearance

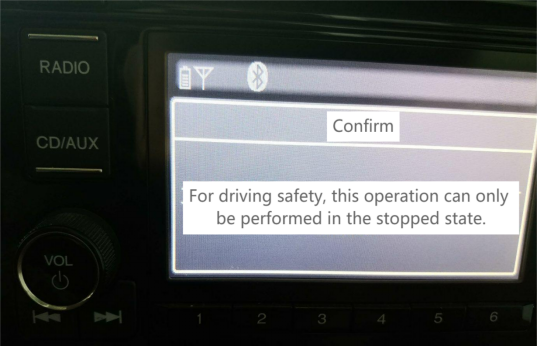

However, when connecting to Bluetooth, it displays the need to operate in a parked state for safety reasons.

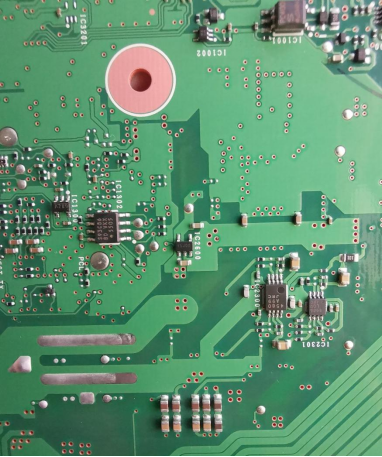

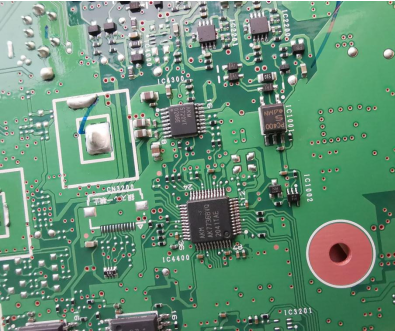

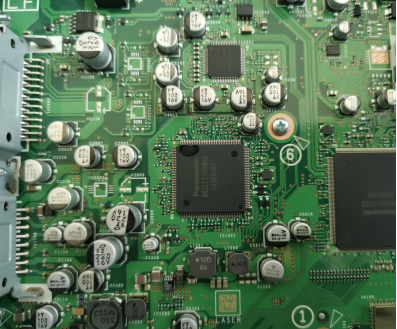

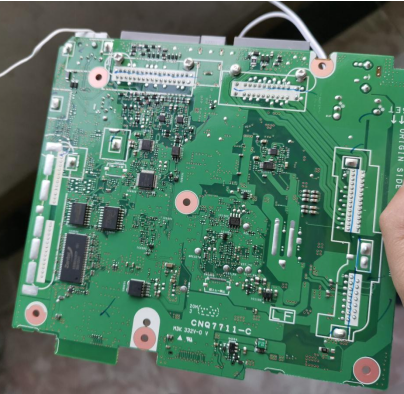

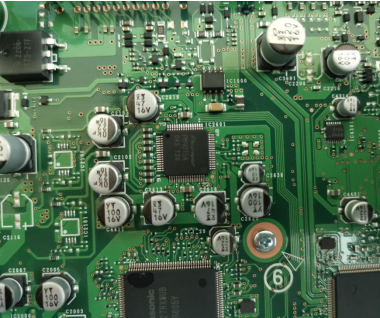

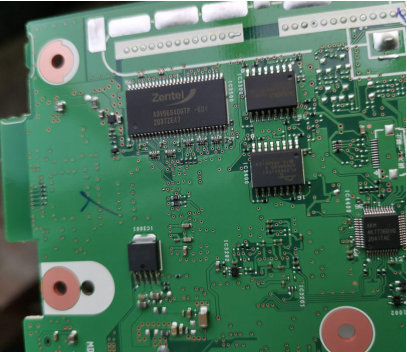

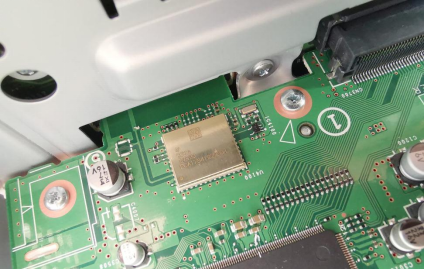

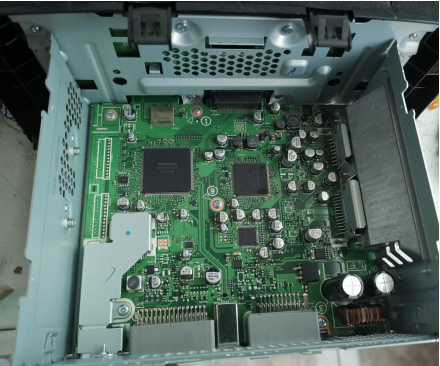

Now let's begin the dismantling process:

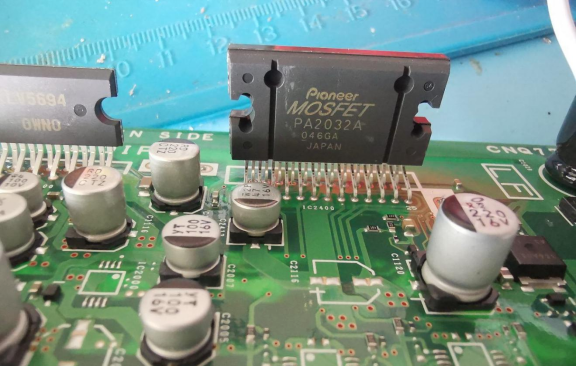

Pioneer MOSFET PA2032A power amplifier chip.

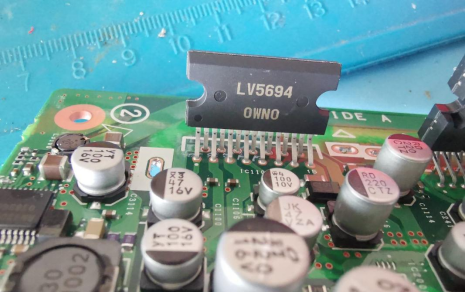

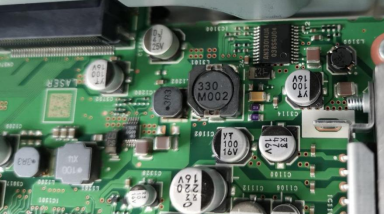

The LV5694 is designed to meet the power requirements of automotive entertainment systems. The LV5694P integrates 5 linear regulators, 2 high-end power switches, overcurrent protection, overvoltage protection, and thermal shutdown circuitry.

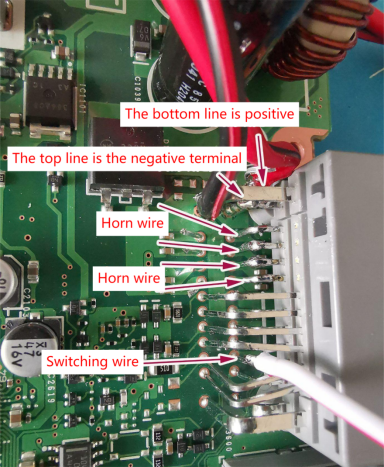

Next is the wiring method for the power cable: You can directly solder a wire. Here is the wiring diagram. Actually, it is recommended to remove the seat. If you solder the wire yourself, it will be easier for future installation.

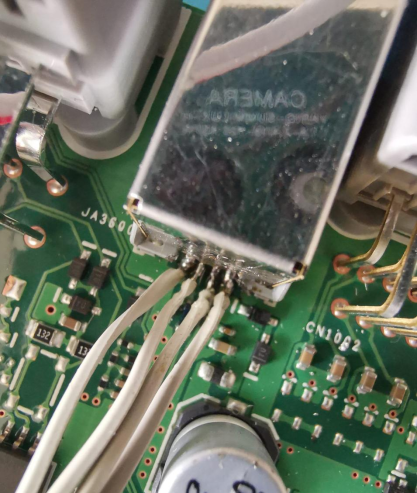

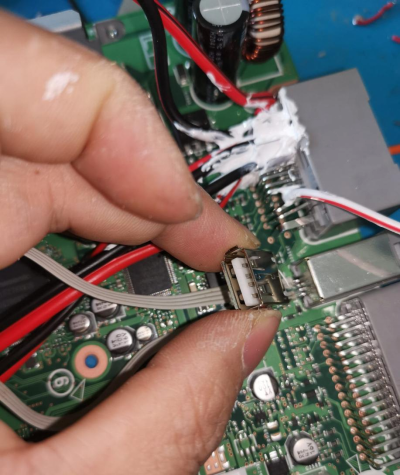

Wiring the USB socket: The USB port uses the ribbon cable from an old hard drive. Take 4 wires. Solder them as shown below.

Align the wires up and down.

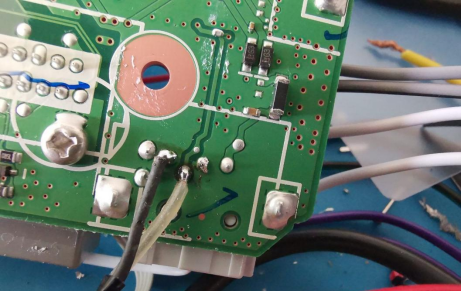

The installation of the antenna is even easier.

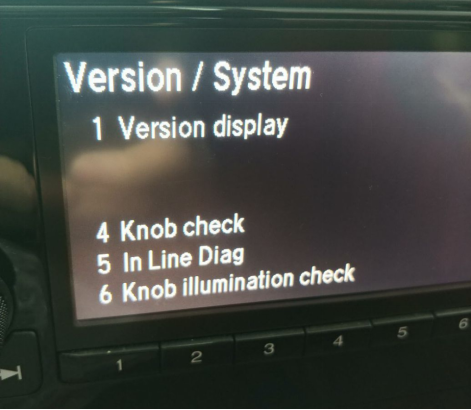

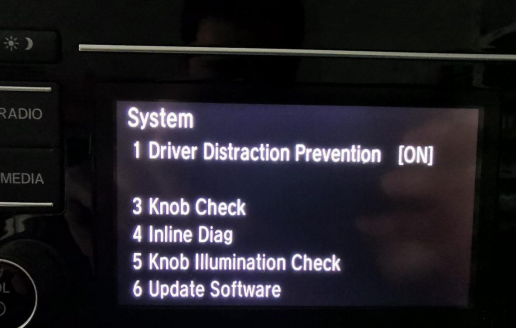

Now let's move on to cracking the Bluetooth: Cracking this device is very easy. Connect the power without turning it on, then press and hold the 1 and 6 buttons below the screen and press the power button. The engineering menu will appear.

Then press the "1" button.

After seeing the first item with "ON" at the end, press the "1" button once to switch it to "OFF". Then press the "↩" return key, disconnect the power, and turn it on again. Now you can add a new Bluetooth device in the settings.

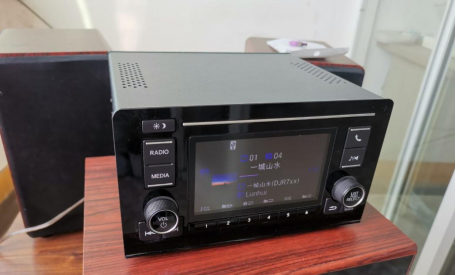

Finally, let's talk about the casing: If you don't have a suitable case, you can directly purchase an aluminum shell and put it in there.
