Nand Lite: Seamless Flash Memory Operations

Nand Lite! Nand Lite is a hardware device developed by Polish engineers, designed to support read and write operations for 48-pin flash memory chips. With its semi-open-source nature, the computer-side software is meticulously crafted using C# programming language. The latest software version, 1.0.1014.89, ensures optimal performance and compatibility for users.

TSOP48 3.3V supports most NAND flash memory available in the market. It supports SLC, MLC, and TLC storage which up to 4 CE lines are supported. It has an 8-bit data bus and automatically is recognized programmed systems. It supports reading ONFI registers (1.0-4.0) and protects hardware to prevent accidental writes. Its burst mode data transfer is 8 Mbps. It includes a record of read and write times. What's more, it can programmatically repair data for Samsung d5500 TV's K9GAG08U0E.

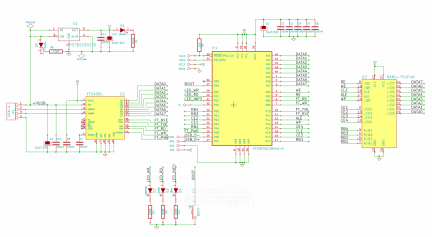

Schematic diagram

Finished product image

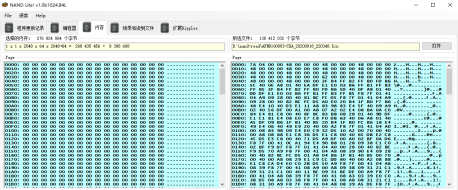

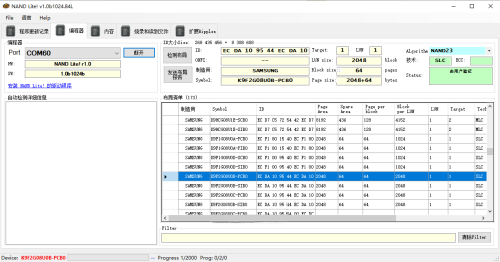

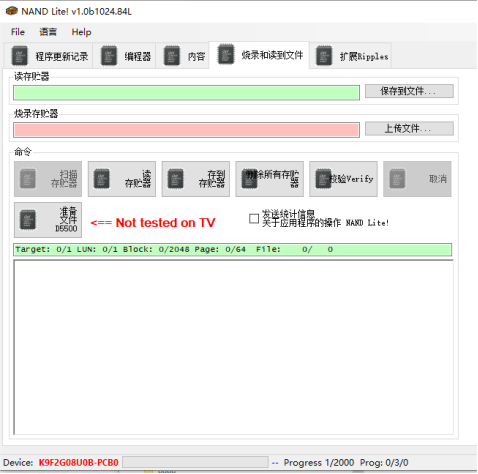

Software interface

Supported model list: You can add functionality for new storage chips yourself.

Hynix
128Mbits: HY27US08281A
256Mbits: HY27US08561A
512Mbits: H27U518S2CTR, HY27US08121A
1Gbits: HY27UF081G2A
2Gbits: HY27UF082G2B
4Gbits: H27U4G8F2D*
8Gbits: H27U8G8G5D*, HY27UG08*
16Gbits: H27UAG8T2BTR,HY27UH08*, HY27UH08AG*,
32Gbits: H27UBG8T2A, H27UBG8T2B

Samsung
128Mbits: K9F2808U0A, K9F2808U0B, K9F2808U0C-YCB0
256Mbits: K9F5608U0A, K9F5608U0B-PCB0
512Mbits: K9F1208U0A, K9F2808U0B, K9F2808U0C-PCB0
1Gbits: K9F1G08U0A, K9F1G08U0B, K9F1G08U0C-PCB0
2Gbits: K9F2G08U0A, K9F2G08U0B, K9F2G08U0C
4Gbits: K9F4G08U0A, K9F4G08U0B-PCB0, K9F4G08U0C, K9F4G08U0D-SCB0, K9G4G08U0*
8Gbits: K9G8G08U0A, K9G8G08U0M, K9K8G08U0A, K9F8G08U0M
16Gbits: K9GAG08U0D, K9GAG08U0E

Micron
128Mbits: NAND128W3A*
256Mbits: NAND256W3A*
512Mbits: NAND512W3A*
1Gbits: MT29F1G08*
2Gbits: MT29F2G08*
4Gbits: MT29F4G08*
8Gbits: MT29F8G08*
32Gbits: MT29F32G08CBACAWP

Spansion
1Gbits: S34ML01G1
2Gbits: S34ML02G1
4Gbits: S34ML04G1

ESMT
1Gbits: F59L1G81A
Toshiba
1Gbits: TC58NVG0S3, TC58DVG02D5TA00
2Gbits: TC58NVG1S3
4Gbits: TC58NVG2S3

NOR Flash:

SST
SST39VF6401B, SST39VF3201B

Micron
JS28F320C3B*, JS28F320C3T*, TE28F320C3B*, TE28F320C3T*

ST
M28W320FCB, M28W320FCT
M29W160EB, M29W160ET

In addition, Nand Lite offers an extensive list of supported models, allowing users to expand its functionality by adding new storage chips as needed. With support for major NAND flash memory brands, Nand Lite provides versatile and reliable solutions for various storage requirements.
