BGA Packaging: Advantages, Limitations, and Modules

BGA packaging, or Ball Grid Array Package, is a widely used packaging technology in the electronic components industry. Discover how it revolutionizes the way electronic devices are connected and secured.

Advantages

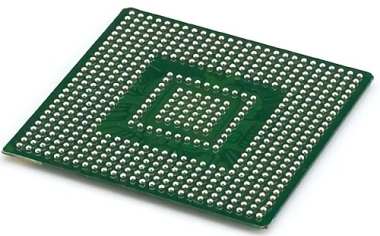

BGA packaging is well-known for its high-density design. Compared to traditional pin-type packages, BGA packaging significantly increases the number of connections by placing solder balls on the package bottom. This design helps enhance the performance of electronic devices and meets the modern demand for smaller, more integrated electronic equipment. According to market research firm Yole Développement, the global BGA packaging market is expected to have a compound annual growth rate of over 7% by 2025.

Furthermore, BGA packaging offers good heat dissipation capabilities. By directly connecting solder balls to the solder pads on the printed circuit board, heat can be efficiently transferred and dispersed. This is particularly important for high-performance electronic devices such as integrated circuits, microprocessors, and chipsets. Good heat dissipation improves the reliability, performance, and lifespan of electronic devices.

Limitations

However, BGA packaging also has certain limitations. Due to the connection method between solder balls and solder pads, BGA packaging can be relatively challenging for repair and upgrading. Specialized equipment and techniques may be required if replacement or reconnection of electronic devices is necessary. Additionally, BGA packaging is sensitive to temperature changes and mechanical stress. This sensitivity can result in solder joint fractures or other connection issues, impacting the performance and reliability of the devices.

Popular Modules

Despite these limitations, BGA packaging is home to many popular modules, including Field-Programmable Gate Arrays (FPGAs), Central Processing Units (CPUs), and Graphics Processing Units (GPUs). These modules find extensive applications in fields such as computers, communication devices, and consumer electronics.

In conclusion, the application prospects of BGA packaging remain extensive in the ever-evolving electronics market.
