Unlock the Secrets of DIY: Introducing the Ultimate Power-On Board! Are you tired of fumbling with tweezers every time you need to power on your old motherboards? Say hello to a game-changing solution that will revolutionize your tech experience! This text introduces a DIY old specialized power-on board. If you have many second-hand or third-hand motherboards at home, then you must have this! Say goodbye to the embarrassment of searching for tweezers every time you need to power on your device!

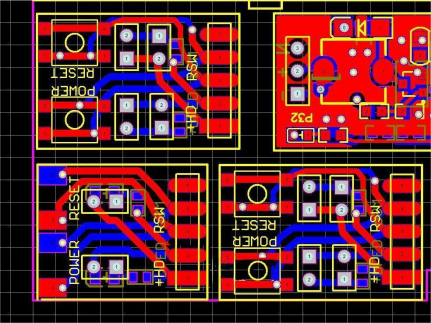

First, you need a PCB as shown in the image.

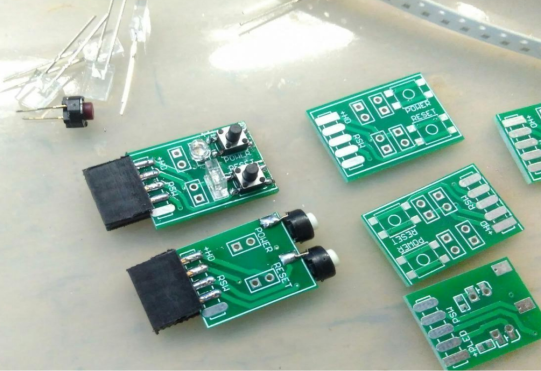

Use various tools to separate the small boards and then find those unused through-hole LEDs from the component pile and install them! Surface-mount LEDs can be soldered as well! If it's for testing purposes, for maximum compatibility, it's best to use two LEDs facing opposite directions so that it will light up no matter which way the motherboard is inserted. You only need to install a 4x2 pin header since the remaining two pins are not used.

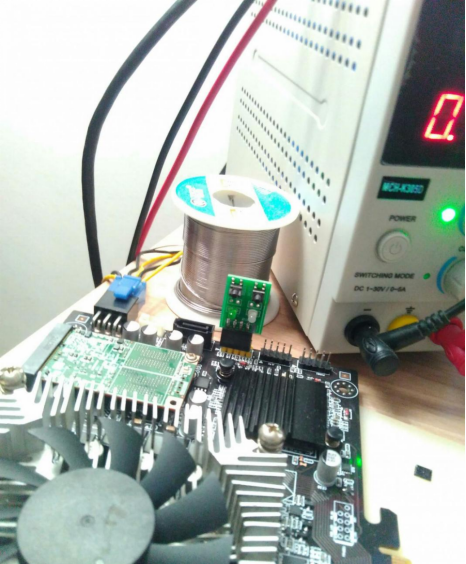

Standby mode.

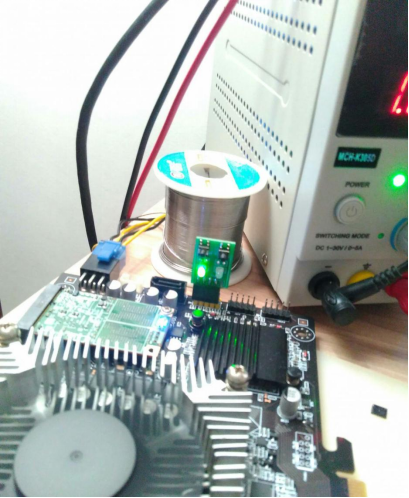

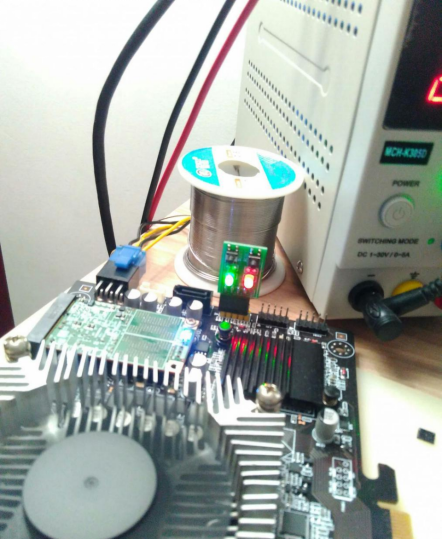

Power-on.

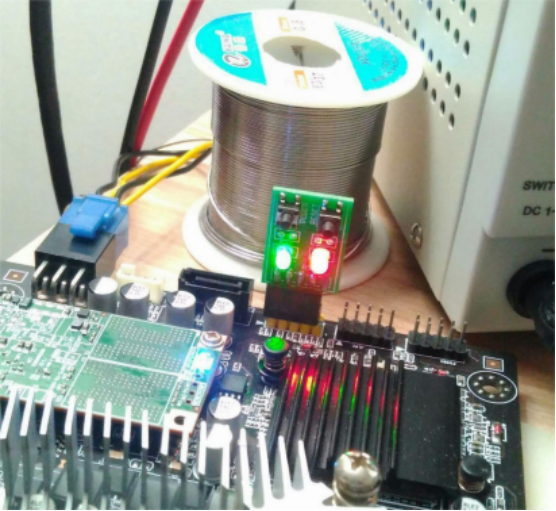

Power-on and read/write to the hard drive.

Take a closer look.

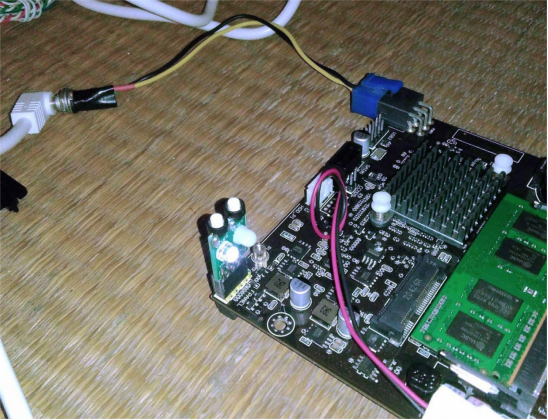

For another motherboard, you can also install a different type with buttons designed on top.

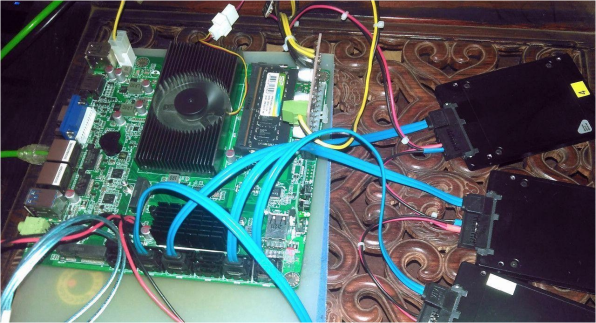

If your NAS requires you to bend over and use tweezers to power it on, then get this set up quickly!

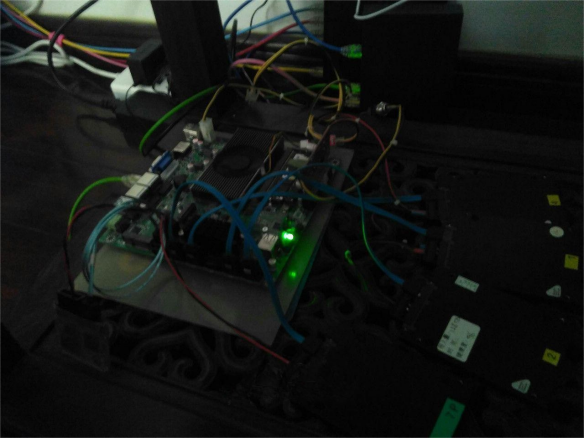

Turn on the lights and take a look.

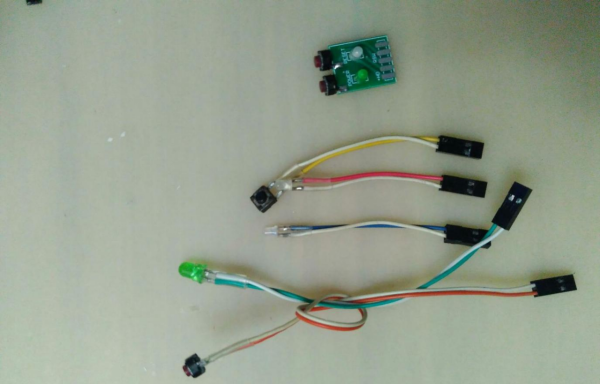

Components.

No more fumbling with tweezers or struggling with outdated power-on methods – this board is the ultimate solution to power up your old motherboards effortlessly. From the ease of installation to its versatile compatibility, the benefits of this DIY project are boundless. Embrace the thrill of building your own power-on board, unlocking a world of possibilities for your tech gadgets. So, what are you waiting for? Get your hands on the ultimate power-on board and embark on a journey of seamless power-on experiences like never before! Your tech collection will never be the same again. Happy DIY-ing!
