Toshiba's 600V Smart Power Devices for Brushless Motors

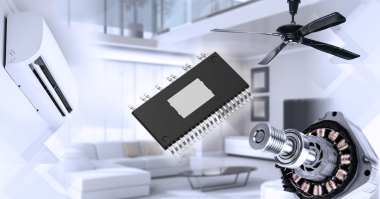

Toshiba Electronic Components and Storage Devices Corporation, a renowned industry leader, has proudly unveiled its latest technological marvels - the "TPD4163F" and "TPD4164F." These cutting-edge 600V compact intelligent power devices (IPDs) are meticulously engineered for a wide spectrum of applications, particularly in the realm of direct current brushless motor drives. Industries such as air conditioning, air purification, and pumping systems stand to benefit greatly from these innovations.

Distinguished by their exceptional performance, the "TPD4163F" and "TPD4164F" offer rated output currents (DC) of 1A and 2A respectively, meeting the demands of dynamic operational scenarios. The avant-garde design is elegantly packaged in a space-efficient surface-mount HSSOP31 package, resulting in a remarkable reduction of approximately 63% in footprint compared to prior DIP26 package products (including TPD4123K, TPD4123AK, TPD4144K, TPD4144AK, TPD4135K, and TPD4135AK). This optimization not only fosters compactness in motor drive circuit boards but also contributes to overall space efficiency.

Addressing the critical concern of voltage instability, these IPDs have been fortified to a remarkable 600V, a significant leap from the previous standard of 500V. This enhancement substantially augments operational reliability, ensuring seamless functionality even in regions plagued by power fluctuations.

Enthusiasts and industry professionals can now delve into the realms of innovation by visiting Toshiba's official website. There, they will discover the enlightening "Sensorless Brushless DC Motor Drive Circuit Reference Design," a testament to Toshiba's commitment to marrying groundbreaking hardware, as exemplified by the TPD4164F, with the sophisticated capabilities of the TMPM374FWUG microcontroller equipped with a potent vector control engine.

As Toshiba continues to chart the trajectory of innovation, it pledges to expand its repertoire of energy-efficient motor control offerings. By introducing an array of packages and refined device attributes, Toshiba aims to empower design flexibility while steering the course towards a greener, more sustainable future.

· Application Scope:

The IPDs cater seamlessly to a variety of applications, including but not limited to:

- Air conditioning

- Air purification

- Ventilation systems

- Pumping solutions

· Highlighted Features:

- Compact form factor:

Surface-mount HSSOP31: Dimensions of 17.5mm×11.93mm (typical) and a maximum thickness of 2.2mm

- Elevated rated supply voltage:

A robust VBB of 600V, ensuring operational stability even during power voltage fluctuations

· Main Specifications

(T a =25°C unless otherwise specified)
