DIY Exhaust Fan: Create Your Own Efficient Ventilation

Are you looking to make a DIY small fan, also known as an exhaust fan? If so, here's a detailed guide on how to do it using readily available materials. This project is not only a cost-effective solution but also a great way to repurpose some old electronic components. Follow these steps to assemble your own small fan for various applications.

Materials Needed:

1. Faulty Computer Power Supply: You'll need a malfunctioning computer power supply as a source for the fan.

2. Defective LED Metal Base: Find a damaged LED metal base, which will serve as the foundation for your fan.

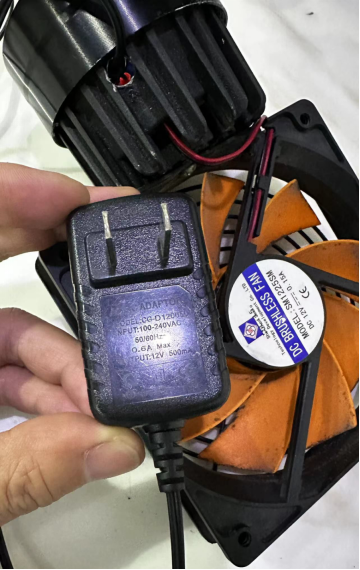

3. 12V Charger: Acquire a 12V charger to power your small fan.

4. Additional Safety Measure (Optional): Consider adding a protective fan cover for enhanced safety.

Step-by-Step Instructions:

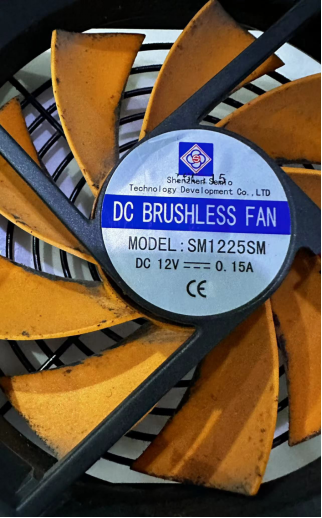

Step 1: Dismantle the Computer Power Supply Fan

Start by carefully disassembling the faulty computer power supply unit to access the fan inside. This fan will be the heart of your DIY exhaust fan.

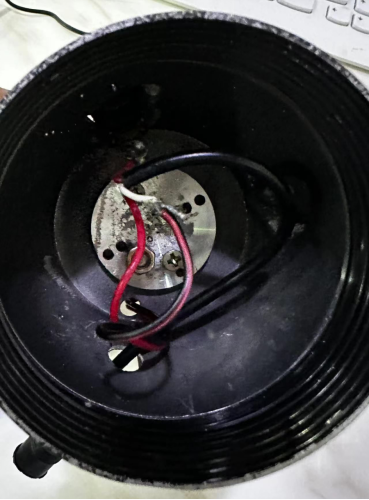

Step 2: Prepare the LED Metal Base

Locate a damaged LED metal base that can be repurposed for your project. This will serve as the sturdy base for your small fan.

Step 3: Assemble the Small Fan

Using the components you've gathered, assemble your small fan. Attach the fan from the computer power supply to the LED metal base. Ensure it is securely fixed in place.

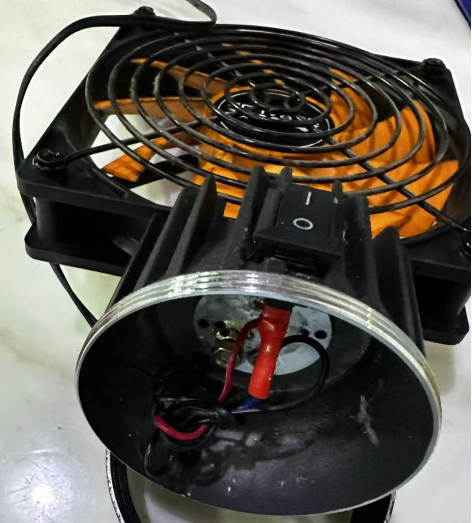

Step 4: Solder a Switch

To control your newly created fan, solder a switch into the circuit. This switch will allow you to turn the fan on and off conveniently.

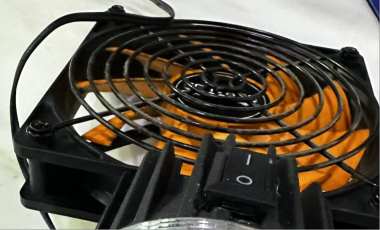

Step 5: Ready for Use

With the assembly and soldering complete, your DIY small fan is now ready for regular use. Use the front side of the fan to effectively dissipate toxic gases from soldering on motherboards, while the backside can serve as a functional small fan.

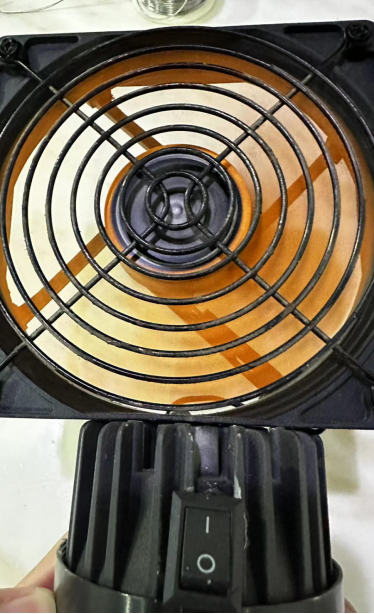

Step 6 (Optional): Add a Protective Fan Cover

For added safety, you can choose to add a protective fan cover. This extra layer of protection can prevent accidents and improve the longevity of your DIY exhaust fan.

Power Supply Requirement: 12V

By following these steps, you can create your own compact exhaust fan using easily available materials. Whether you need it for soldering or just want to circulate air in a specific area, this DIY project is a practical and budget-friendly solution. Enjoy the benefits of your customized small fan!
