Littlefuse SZSMF4L TVS Diodes: Safeguarding Sensitive Electronics

In the ever In the world of electronics, safeguarding your sensitive systems and components from high voltage transients is crucial. When it comes to reliable and efficient transient voltage suppression, Littlefuse SZSMF4L TVS diodes take the lead. In this article, we'll delve into the key features, applications, and why these diodes are an ideal choice, especially for automotive electronics.

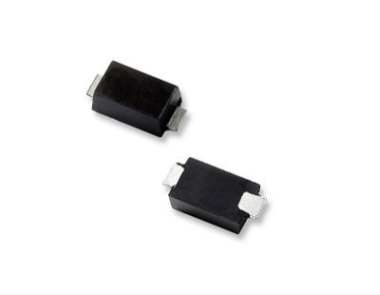

Understanding Littlefuse SZSMF4L TVS Diodes

Features

Littlefuse SZSMF4L series TVS diodes offer a comprehensive set of features that make them indispensable for protecting your valuable electronics:

1. Zener Transient Overvoltage Suppressors: These diodes are designed to suppress transient voltage spikes effectively.

2. Wide Working Peak Reverse Voltage Range: The SZSMF4L series offers a working peak reverse voltage range of 5 V to 78 V for unidirectional and 10 V to 78 V for bi-directional applications, making them versatile for various circuit needs.

3. High Surge and Clamping Capabilities: With a peak power rating of 400 watts at 1 ms, these diodes can swiftly clamp high-energy transients, keeping your circuits safe.

4. Planar Chip Design: The planar chip design ensures low leakage current performance, optimizing the diodes' functionality.

5. Rapid Response Time: With a response time typically less than 1 ns, these diodes react almost instantaneously to transient voltage spikes, offering superior protection.

6. ESD Rating: Littlefuse SZSMF4L TVS diodes boast an ESD rating of class 3, exceeding 16 kV per human body model, ensuring they can handle electrostatic discharge effectively.

7. IEC-61000-4-2 ESD: These diodes are IEC-61000-4-2 ESD certified with ratings of 30 kV (Air) and 30 kV (Contact), further showcasing their reliability.

8. Lead Orientation: When it comes to handling, SZSMF4L TVS diodes feature cathode lead orientation in tape, making them easy to work with.

9. Pb-Free and RoHS Compliant: These components are Pb-free and RoHS compliant, aligning with modern environmental standards.

10. SZ Prefix: The SZ prefix designates these diodes for automotive and other applications with control change requirements. They are also AEC−Q101 qualified and PPAP capable, ensuring they meet stringent automotive industry standards.

Applications

Littlefuse SZSMF4L TVS diodes find their applications in a range of scenarios, with a primary focus on the protection of sensitive electronics:

· I/O Interfaces: Protect your input/output interfaces from voltage surges, ensuring data integrity and device longevity.

· VCC Bus: Safeguard your VCC bus, providing a stable power supply for your circuits, minimizing the risk of damage.

· Automotive Applications: These diodes are an excellent choice for automotive electronics, where reliable protection against high-voltage transients is paramount. Their AEC−Q101 qualification makes them ideal for the automotive industry.

Conclusion

When it comes to securing your sensitive electronics from high voltage and high-energy transients, Littlefuse SZSMF4L TVS diodes stand out as a top choice. Their impressive features, rapid response time, and certifications for automotive applications make them a reliable solution for various electronics protection needs. Whether you're working on I/O interfaces, VCC buses, or automotive applications, SZSMF4L TVS diodes ensure your electronics stay safe and perform optimally.

Investing in the right protection components like the Littlefuse SZSMF4L series can save you from costly damages and downtime, making them a smart choice for electronics enthusiasts and industry professionals alike. So, equip your circuits with the best defense - choose Littlefuse SZSMF4L TVS diodes for superior transient voltage suppression.
