Advanced Battery Gauge Communication: EV2400 & EV2300

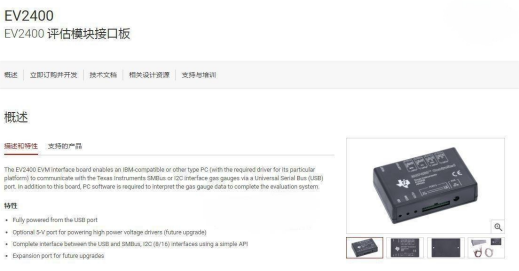

The EV2400 and EV2300 devices serve as vital communication interfaces between a computer host and Texas Instruments' battery gauge. They play a crucial role in translating USB signals into I2C/SMBUS/HDQ communication protocols, enabling seamless interaction between the computer host's software, known as BQSTUDIO, and the battery gauge. These communication boxes are commonly employed in the context of testing lithium batteries equipped with battery gauges.

Schematic Design

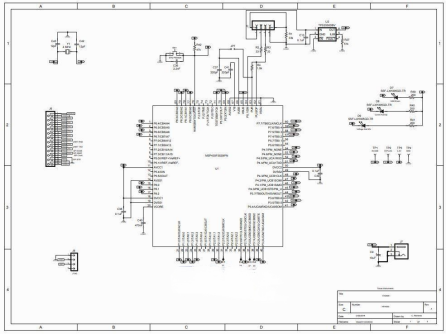

The official schematic design for the EV2400, provided by Texas Instruments, offers a versatile platform that can be customized to meet specific requirements. Extraneous components can be conveniently removed. The detailed schematic design can be effortlessly accessed and downloaded as an attachment.

PCB Layout

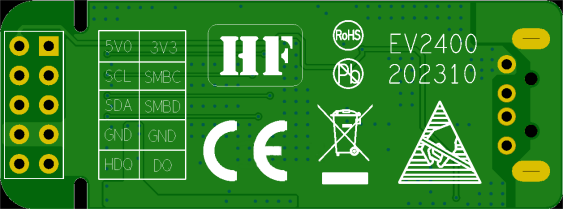

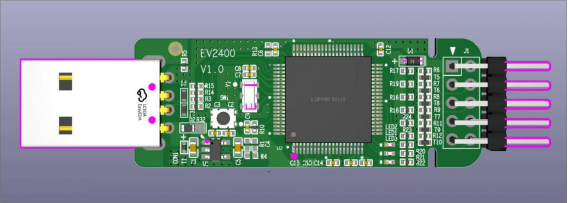

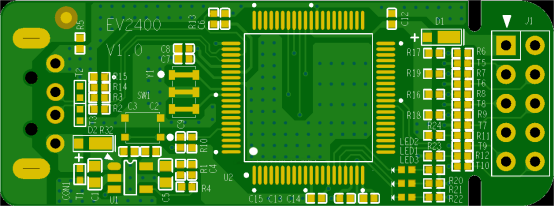

The design of the printed circuit board (PCB) is notably straightforward, making a 2-layer PCB configuration entirely suitable. However, a 4-layer PCB design has been crafted in recognition of the availability of a 4-layer PCB voucher.

Exporting Bill of Materials (BOM) and Surface Mount Technology (SMT)

Following the component selection process in the schematic design, the Bill of Materials (BOM) can be efficiently generated. Subsequently, Surface Mount Technology (SMT) assembly can be carried out to realize the PCB design.

Board Assembly

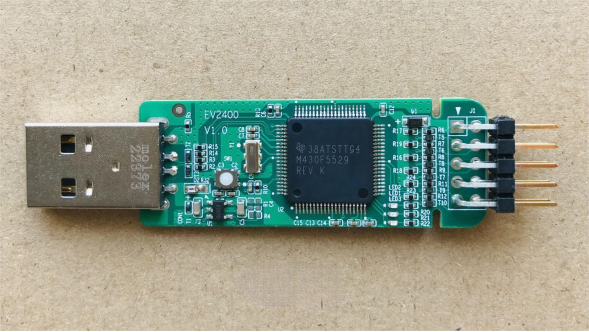

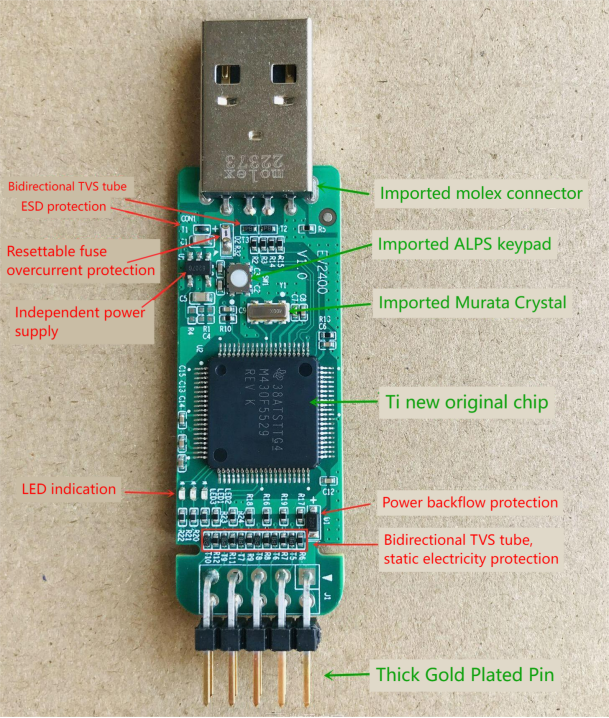

In cases where manual assembly is necessary, meticulous attention is directed towards the selection and manual soldering of essential components. After this phase, the programmed board is ready for operation.

Final Testing

In the culmination of this process, a comprehensive functionality test is conducted to ensure the seamless operation of the system. This rigorous testing assures the system's reliability and performance.

This information provides valuable insights into the EV2400 and EV2300 devices, serving as a resource for professionals and enthusiasts in the field of battery management systems. It offers in-depth guidance on their deployment and customization, making it a valuable reference for individuals seeking to effectively utilize these communication boxes in battery testing applications.
