Are Cement Resistors the Key to Precision and Thermal Stability?
Cement resistors, as electronic components, are garnering the attention of tech enthusiasts and professional engineers alike. In this article, we will provide you with a detailed understanding of cement resistors, shedding light on their structure, applications, characteristics, and their significant role in electronic circuits. We'll delve into why they are so vital and why engineers often consider them indispensable electronic components.
1. The Basic Structure and Housing Material

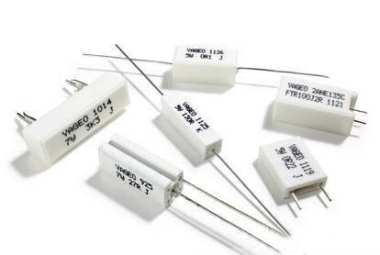

Cement resistors typically feature an outer casing made of ceramic or cement, chosen for their ability to withstand high temperatures. For instance, ceramic casings are often made of aluminum oxide, offering superior heat conductivity and insulation. In high-power applications, you might also find cement resistors encased in metal to enhance heat dissipation.
2. Uses and Applications
Cement resistors play a crucial role in electronic circuits, primarily for current control and voltage division. Consider the Texas Instruments LM386, which employs cement resistors to regulate the gain of audio signals, ensuring clear sound quality. Moreover, the Tektronix 2465 oscilloscope utilizes cement resistors to control the input signal's division, guaranteeing accurate waveform measurements.
3. Resistance Range and Tolerance
Electronics designers require a wide range of resistance values. For example, the Vishay Dale CRCW series of cement resistors offer resistance values ranging from a few ohms to several megaohms. This means that regardless of whether your circuit requires large or small resistance values, you can find a suitable cement resistor.
Tolerance is another crucial parameter, indicating that the actual value of a cement resistor may slightly deviate from the nominal value. The Panasonic ERJ series of cement resistors is renowned for their low tolerance, making them popular in applications requiring precise resistance values.
4. Power Ratings and Thermal Stability
Different applications demand cement resistors with varying power ratings. In high-power applications, the Ohmite TAH series of cement resistors can handle substantial currents, making them suitable for motor controllers and power electronic systems, ensuring system stability under high loads. For applications requiring high thermal stability, the Yageo CC Series provides excellent performance, ideal for use in high-temperature environments such as high-temperature sensors and industrial heating systems.
5. Application Areas
Cement resistors find widespread use across numerous fields. In power supply units, the Mean Well LRS series of power modules use cement resistors to stabilize current and voltage, ensuring the stable operation of electronic equipment. Additionally, the ABB ACS800 inverter employs cement resistors to control the speed and torque of motors, making them suitable for industrial automation and transportation systems.
The versatility and reliability of cement resistors make them a pivotal element in electronic design. From consumer electronics to industrial automation, cement resistors play an indispensable role in ensuring circuit performance and reliability. Understanding different models of cement resistors and their characteristics helps engineers make better choices and applications, tailored to the specific requirements of their electronic designs.
