LM9076SX-5.0/NOPB: Precise LDO Regulator & Applications
In the ever-evolving world of electronics, having a reliable voltage regulator is crucial. The Texas Instruments LM9076SX-5.0/NOPB is one such powerhouse, designed to deliver precision voltage regulation and stability in a compact form. In this comprehensive guide, we'll dive deep into the LM9076SX-5.0/NOPB, exploring its features, specifications, applications, and why it's a game-changer in the electronic components industry.
What is the LM9076SX-5.0/NOPB?
The LM9076SX-5.0/NOPB is a Low Dropout (LDO) voltage regulator, manufactured by Texas Instruments. It's engineered to provide a stable, regulated 5V output with a maximum current of 0.15A, making it ideal for a wide range of electronic applications.
Main Features:
l Precision and Accuracy: The LM9076SX-5.0/NOPB boasts an impressive accuracy of ±3%. This precision ensures that your electronic circuits receive a constant and reliable 5V output, crucial for the performance of various devices.
l Thermal Protection: This LDO regulator comes with built-in thermal protection, safeguarding your circuit from overheating, and providing added durability.
l Wide Operating Temperature Range: With a minimum operating temperature of -40°C and a maximum of 125°C, this regulator is suitable for both extreme cold and hot environments.
Technical Specifications
Type | Parameter |
Type | LDO |
Number of Outputs | 1 |
Polarity | Positive |
Accuracy (%) | ±3 |
Output Type | Fixed |
Output Voltage (V) | 5 |
Maximum Output Current (A) | 0.15 |
Minimum Input Voltage (V) | 5.35 |
Maximum Input Voltage (V) | 40 |
Maximum Dropout Voltage @ Current (V) | 0.05@10mA|0.25@150mA |
Line Regulation | 35mV |
Load Regulation | 60mV |
Junction to Ambient | 75°C/W |
Junction to Case | 2.9°C/W |
Special Features | Thermal Protection |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 4.83(Max) |
Package Width | 9.65(Max) |
Package Length | 10.67(Max) |
PCB changed | 5 |
Tab | Tab |

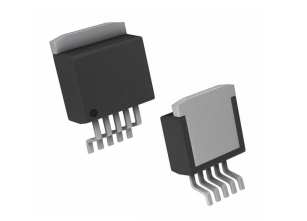

Standard Package Name | TO-263 |
Supplier Package | DDPAK |
Pin Count | 6 |
Lead Shape | Gull-wing |
Applications
The versatility of the LM9076SX-5.0/NOPB makes it a valuable addition to numerous electronic applications. Here are some of the key areas where it shines:
1. Power Supplies:
The LM9076SX-5.0/NOPB can be used to provide a stable 5V power source to the microcontroller. This ensures that the weather station can accurately collect and transmit data without voltage fluctuations affecting its performance.
2. Battery-Powered Devices:
The LM9076SX-5.0/NOPB's low dropout voltage and high efficiency are ideal for conserving battery power. This allows the remote to run for extended periods without frequent battery replacements.
3. Industrial Electronics:
In an industrial control panel that manages various sensors and actuators, the LM9076SX-5.0/NOPB can provide a reliable 5V supply to the central controller. Its ability to handle a wide range of temperatures and its thermal protection ensure consistent operation in harsh industrial environments.
4. Automotive Electronics:
While it's not specifically designed for automotive use, the LM9076SX-5.0/NOPB can serve in certain automotive applications. Consider using it to power a vehicle's infotainment system or an aftermarket GPS navigation unit. Its thermal protection becomes valuable in the sometimes extreme temperature conditions inside a car.
LM9076SX-5.0/NOPB's Manufacturer
Texas Instruments, often referred to as TI, is a renowned global semiconductor company with a rich history of innovation. As a leading manufacturer in the electronic components industry, Texas Instruments is known for producing high-quality, cutting-edge solutions that empower technological advancements across various sectors, from consumer electronics to industrial applications. With a commitment to excellence and a wide range of products, TI continues to be a trusted and influential player in the world of semiconductors and electronic components.
Conclusion
The Texas Instruments LM9076SX-5.0/NOPB is more than just an LDO regulator; it's a reliable companion for your electronic projects. Its precision, efficiency, and durability make it a standout choice in the electronic components industry.
