LM3S8962-IQC50-A2: Overview, Features, Applications
In this guide, we'll dissect the intricacies of Texas Instrument LM3S8962-IQC50-A2, providing you with a comprehensive understanding of its overview, key features, specifications, applications, and the manufacturer's insights.
LM3S8962-IQC50-A2's Overview

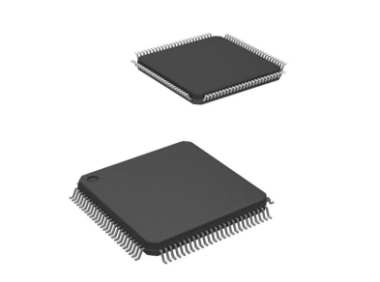

Texas Instrument LM3S8962-IQC50-A2, part of the Stellaris family, is a prime example of cutting-edge technology. This MCU boasts a 256KB Flash memory, operating seamlessly at frequencies up to 50 MHz. The ARM Cortex M3 core architecture ensures efficient and reliable performance, making it a preferred choice for various applications.
Key Features:
· Armed with a 32-bit ARM Cortex M3 RISC architecture, the LM3S8962-IQC50-A2 delivers robust and efficient processing at a maximum frequency of 50 MHz.
· Boasting 42 I/Os and multiple interfaces such as CAN, Ethernet, I2C, SSI, and UART, this MCU facilitates seamless communication and integration into diverse systems.
· With a single ADC featuring four channels and a 10-bit resolution, the LM3S8962-IQC50-A2 ensures precise analog data acquisition for a range of applications.
· Operating across a voltage range of 2.25V to 3.6V and with a temperature tolerance from -40°C to 85°C, this MCU is tailored for industrial applications demanding reliability and durability.
Specifications:
Type | Parameter |
Family Name | Stellaris |
Instruction Set Architecture | RISC |
Device Core | ARM Cortex M3 |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 50 |
Maximum Clock Rate (MHz) | 50 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 256KB |
RAM Size | 64KB |
Programmability | Yes |
Interface Type | CAN/Ethernet/I2C/SSI/UART |
Number of I/Os | 42 |
No. of Timers | 6 |
PWM | 6 |
Number of ADCs | Single |
ADC Channels | 4 |
ADC Resolution (bit) | 10 |
USART | 0 |
UART | 2 |
USB | 0 |
SPI | 0 |
I2C | 1 |
I2S | 0 |
CAN | 1 |
Ethernet | 1 |
Watchdog | 1 |
Analog Comparators | 1 |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 2.25|2.3|3 |
Typical Operating Supply Voltage (V) | 2.5|3|3.3 |
Maximum Operating Supply Voltage (V) | 2.75|3.6 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.45(Max) |
Package Width | 14.2(Max) |
Package Length | 14.2(Max) |
PCB changed | 100 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 100 |
Lead Shape | Gull-wing |
Applications:
The LM3S8962-IQC50-A2's versatility opens doors to a myriad of applications, including but not limited to:
· Industrial Automation: Powering automated processes and control systems with its high-performance capabilities.
· Embedded Systems: Serving as the brains behind embedded solutions, from smart devices to sophisticated control systems.
· Motor Control Systems: Enabling precise and efficient control in motor-driven applications with its multiple timers and PWM channels.
· IoT (Internet of Things) Devices: Fueling the Internet of Things revolution by providing a versatile and powerful platform for connected devices.
LM3S8962-IQC50-A2's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
In conclusion, the Texas Instrument LM3S8962-IQC50-A2 stands as a testament to the relentless pursuit of excellence in electronics. Its powerful features, robust design, and broad applicability make it a go-to choice for engineers and developers pushing the boundaries of what's possible in the digital landscape.
