TPS92513DGQR: Overview, Features, Applications & More
In this comprehensive article, let's delve into the Texas Instrument TPS92513DGQR, exploring its key features, specifications, applications, and the prowess of its manufacturer.
TPS92513DGQR's Overview
The TPS92513DGQR is a state-of-the-art LED driver designed with precision and efficiency in mind. With 7 segments and a DC/DC input/output type, it stands out as a versatile solution for various lighting applications.
Key Features:
· Boasting 7 segments, this LED driver allows for intricate and customizable lighting configurations, catering to diverse design needs.
· With a minimum operating supply voltage of 4.5V and a maximum of 42V, the TPS92513DGQR adapts seamlessly to different power environments.
· Operating at typical voltages of 5V, 9V, 12V, 15V, 18V, and 24V, this driver offers flexibility and efficiency in diverse scenarios.
· Ranging from 0.2V to 40V, the TPS92513DGQR ensures a stable and dynamic output for optimal lighting performance.
· With a maximum supply current of 407uA, this LED driver emphasizes energy efficiency without compromising on performance.
· Capable of delivering up to 1500mA, the TPS92513DGQR stands as a robust solution for demanding LED applications.
Specifications:
Type | Parameter |
Number of Segments | 7 |
Input/Output Type | DC/DC |
Minimum Operating Supply Voltage (V) | 4.5 |
Maximum Operating Supply Voltage (V) | 42 |
Typical Operating Supply Voltage (V) | 5|9|12|15|18|24 |
Output Voltage (V) | 0.2 to 40 |
Maximum Supply Current (uA) | 407 |
Maximum Output Current (mA) | 1500 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.95(Max) |
Package Width | 3.1(Max) |
Package Length | 3.1(Max) |
PCB changed | 10 |
Standard Package Name | SO |

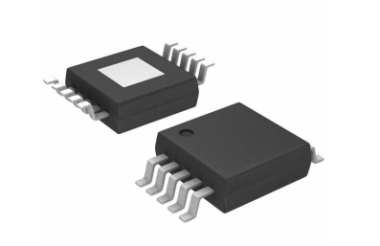

Supplier Package | HVSSOP EP |
Pin Count | 10 |
Lead Shape | Gull-wing |
Applications:
The versatility of the TPS92513DGQR LED Driver extends to a myriad of applications:
· LED Displays: Harness the power of segmentation for vivid and attention-grabbing LED displays.
· Automotive Lighting: Illuminate the road with precision and efficiency in automotive lighting systems.
· Architectural Lighting: Create captivating lighting designs for architectural marvels with the adaptive features of this LED driver.
TPS92513DGQR's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion:
In conclusion, the Texas Instrument TPS92513DGQR LED Driver emerges as a beacon of innovation in the electronics landscape. Its versatile features, robust specifications, and applications across diverse industries position it as a go-to solution for those seeking efficient and reliable LED drivers.
