REF5030AIDR: Overview, Features, Applications, and More
In this article, post, we dive deep into the Texas Instrument REF5030AIDR, a V-Ref Precision component that stands as a testament to cutting-edge technology. From its inception to its application, let's explore the key facets that make REF5030AIDR an indispensable asset in the realm of electronics.
REF5030AIDR's Overview

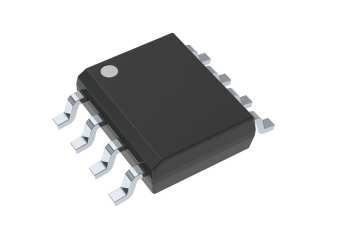

The REF5030AIDR is a Precision Voltage Reference with a Series Topology. Characterized by its 8-pin SOIC T/R packaging and a series topology, this state-of-the-art component redefines accuracy in electronic applications, making it a versatile choice for a spectrum of precision-driven scenarios.
Key Features
· The REF5030AIDR nails precision with an Initial Accuracy of 0.1%.
· It handles extreme temperatures like a pro. With a Maximum Temperature Coefficient of 8ppm/°C, the REF5030AIDR ensures stable performance.
· Maintaining a stable output voltage is easy for the REF5030AIDR. It tackles Load Regulation (30ppm/mA) and Line Regulation (1ppm/V) effortlessly.
· Packed in a compact 8-pin SOIC format, the REF5030AIDR is not just small; it's versatile. With dimensions of 1.5mm x 3.98mm x 5mm, it fits seamlessly into various applications.
Specifications
Here's a quick glance at the specifications that make the REF5030AIDR a standout component:
Type | Parameter |
Reference Type | Precision |
Topology | Series |
Initial Accuracy | 0.1% |
Maximum Temperature Coefficient | 8ppm/°C |
Load Regulation | 30ppm/mA |
Line Regulation | 1ppm/V |
Output Voltage (V) | 3 |
Maximum Input Voltage (V) | 18 |
Maximum Output Current (mA) | 10 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.5(Max) |
Package Width | 3.98(Max) |
Package Length | 5(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | SOIC |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The REF5030AIDR finds its application in a multitude of scenarios where precision and reliability are non-negotiable. Some of the key applications include:
· Precision Instrumentation: Ideal for precise measurement equipment and instrumentation setups.
· Power Supply Voltage Reference: Ensures stability in power supply systems.
· Automotive Electronics: With its robust temperature range, it's well-suited for automotive applications.
· Industrial Control Systems: Maintains accuracy in industrial control and automation setups.
REF5030AIDR's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
In the dynamic world of electronics, precision is power, and the REF5030AIDR by Texas Instruments is your key to unlocking it. With simplicity in its features and reliability in its DNA, this component elevates your electronic designs to new heights.
