BZX55C3V3-TR: Features, Specifications & More
In this article, we will unravel the fascinating details of the Vishay Semiconductor BZX55C3V3-TR, a diode Zener that stands out for its exceptional performance and versatility. Let's delve into its key features, specifications, applications, and the manufacturer's insights.
BZX55C3V3-TR's Overview

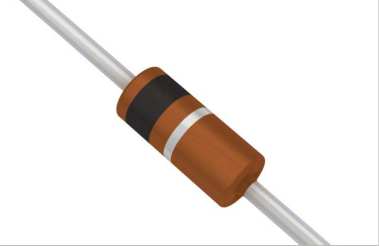

The BZX55C3V3-TR is a Single Configuration Voltage Regulator, designed to maintain a steady 3.3V Zener Voltage, ensuring consistent and accurate regulation in various electronic circuits. This component plays a pivotal role in maintaining stability and preventing voltage fluctuations.
Key Features
· The BZX55C3V3-TR excels in single-configuration voltage regulation, maintaining a reliable 3.3V Zener Voltage with a tight 6% tolerance.
· With a robust Maximum Power Dissipation of 500mW, this diode Zener confidently handles demanding tasks in various applications.
· Operating seamlessly from a chilling -65°C to a scorching 175°C, the BZX55C3V3-TR ensures consistent performance even in extreme conditions.
· Boasting a Maximum Zener Impedance of 85 Ohms and a Typical Voltage Temperature Coefficient of -0.065%/K, this diode Zener guarantees precision in every operation.
Specifications
Let's take a closer look at the technical specifications that make the BZX55C3V3-TR stand out in the electronics realm:
Type | Parameter |
Type | Voltage Regulator |
Configuration | Single |
Nominal Zener Voltage (V) | 3.3 |
Zener Voltage Tolerance | 6% |
Maximum Power Dissipation (mW) | 500 |
Test Current (mA) | 5 |
Maximum Reverse Leakage Current (uA) | 2 |
Maximum Zener Impedance (Ohm) | 85 |
Maximum Power Dissipation @ 25C (mW) | 500 |
Minimum Operating Temperature (°C) | -65 |
Maximum Operating Temperature (°C) | 175 |
Typical Voltage Temperature Coefficient | -0.065%/K |
Packaging | Tape and Reel |
Diameter | 1.7(Max) |
Mounting | Through Hole |
Package Length | 3.9(Max) |
PCB changed | 2 |
Standard Package Name | DO |
Supplier Package | DO-35 |
Pin Count | 2 |
Lead Shape | Through Hole |
Applications
The BZX55C3V3-TR's versatility extends to various applications, thanks to its robust design and precision. Consider integrating this diode Zener in:
· Electronic Circuits: Achieve stable voltage levels for optimal performance.
· Industrial Equipment: Ensure reliability and longevity in challenging environments.
· Communication Devices: Experience enhanced signal integrity with precise voltage regulation.
BZX55C3V3-TR's Manufacturer
Founded in 1962, Vishay Semiconductor is a global leader in electronic components and semiconductors. With a rich history spanning over six decades, the company has consistently pushed the boundaries of innovation, establishing itself as a trusted name in the electronics industry. Vishay Semiconductor is renowned for its commitment to quality, precision, and reliability in manufacturing a wide range of components, including resistors, capacitors, diodes, and MOSFETs.
Conclusion
In conclusion, the BZX55C3V3-TR from Vishay Semiconductor stands as a testament to excellence in the world of electronics. Its precision, efficiency, and wide-ranging applications make it a valuable addition to any electronic project.
