ATMEGA16A QFP to DIP Conversion Guide

The microcontroller's suffix signifies its packaging method:

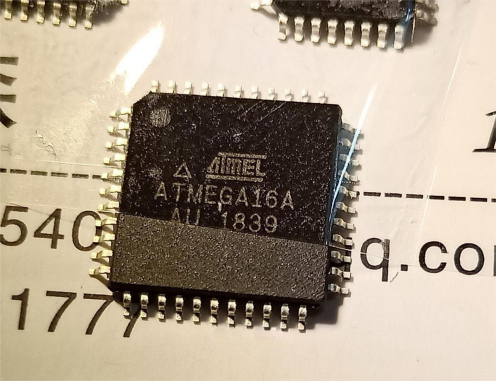

· "Au" denotes QFP packaging.

· "Pu" signifies DIP packaging.

· "Mu" is indicative of BGA packaging.

In the context of DIY electronics, if a circuit originally utilized DIP packaging and the microcontroller in use becomes defective with only QFP packaging available as a replacement, one may opt to modify the packaging for a viable solution. The specific case mentioned pertains to an ATMEGA16A AU.

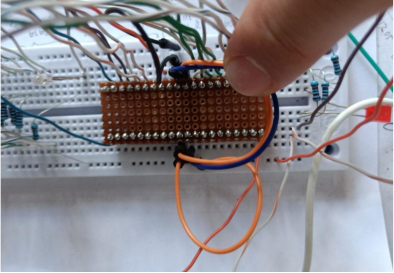

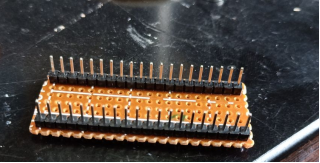

The envisioned end product is depicted in the accompanying diagram.

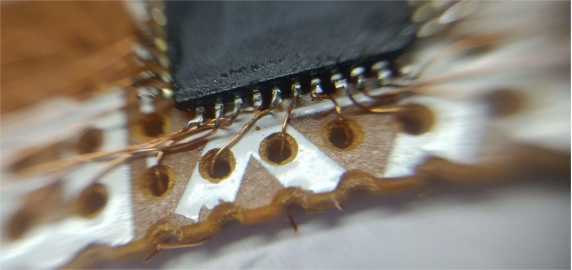

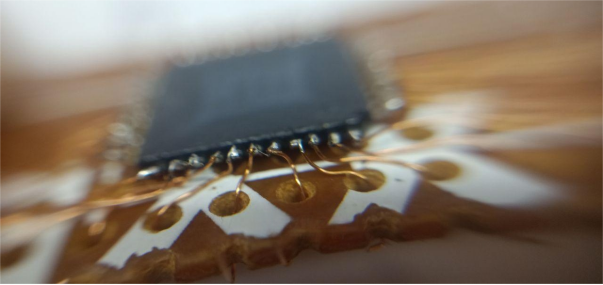

However, when executing wiring connections to individual pins, careful consideration must be given to insulation on the perforated board. An alternative approach involves reorienting the chip to prevent climbing, positioning it with its legs facing upward. Further details are provided below.

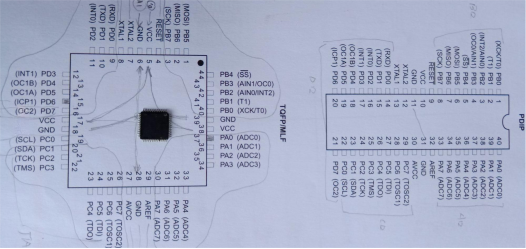

· Identify and designate pin positions.

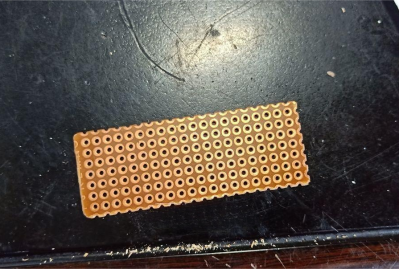

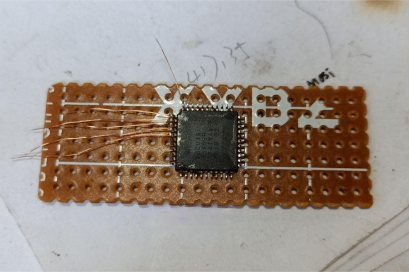

· Cut a section of perforated board and invert it.

· Position the chip accordingly.

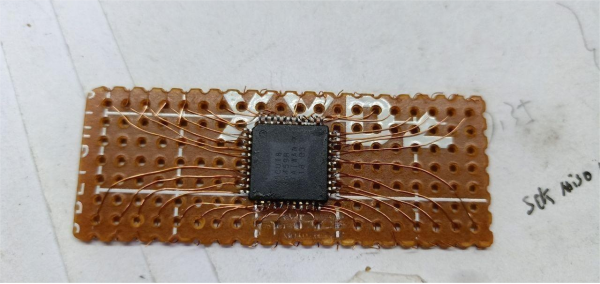

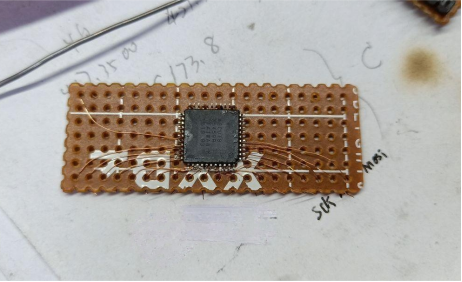

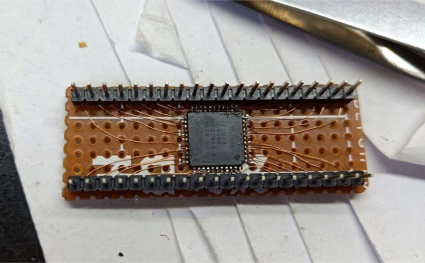

· Establish wired connections to the designated pin positions.

· Address any local considerations.

Upon completion of all connections, it is noteworthy that QFP packaging will entail two additional sets of power and ground, which may be left unconnected.

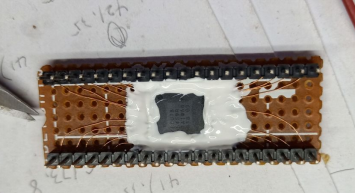

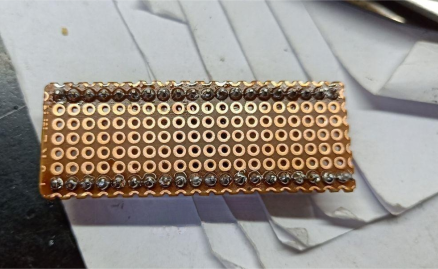

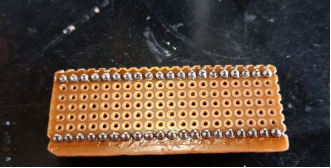

Other notable features include the top row of pins, the reverse side, and securing the assembly with 704.

This comprehensive approach enables a seamless transition into practical utilization.
