LT3094IMSE#PBF: Features, Specifications & More
In this comprehensive article, we'll delves into the intricacies of the ADI LT3094IMSE#PBF, an exceptional Low Dropout (LDO) regulator. Let's delve into the definition, key features, specifications, applications, and the manufacturer behind this remarkable component.
LT3094IMSE#PBF's Overview

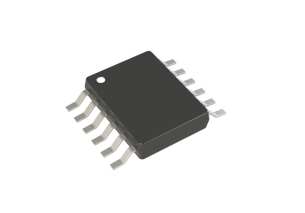

At its core, the ADI LT3094IMSE#PBF is an LDO regulator designed to provide a stable and precise negative voltage output. With a voltage range of 0V to -19.5V and a maximum output current of 0.5A, this component stands out for its accuracy, making it an ideal choice for applications demanding reliability.
Key Features
Let's explore the standout features that make the ADI LT3094IMSE#PBF a preferred choice for engineers:
· With a negative polarity, the LT3094IMSE#PBF ensures stability and precision in voltage regulation.
· Tailor the output voltage according to your project's requirements, ranging from 0V to -19.5V.
· Boasting an impressive accuracy of ±1%, this regulator guarantees reliability in voltage regulation.
· The LT3094IMSE#PBF is equipped with special features like current limit and thermal protection, ensuring longevity and safety in operation.
· Operating flawlessly between -40°C to 125°C, this LDO regulator is built to withstand diverse environmental conditions.
Specifications
Now, let's delve into the technical specifications that make the T3094IMSE#PBF a standout choice for electronic projects:
Type | Parameter |
Type | LDO |
Number of Outputs | 1 |
Polarity | Negative |
Accuracy (%) | ±1 |
Output Type | Adjustable |
Output Voltage (V) | 0 to -19.5 |
Maximum Output Current (A) | 0.5 |
Minimum Input Voltage (V) | -20 |
Maximum Input Voltage (V) | -2.3 |
Maximum Dropout Voltage @ Current (V) | 0.225@1mA|0.225@50mA|0.23@100mA|0.31@500mA |
Line Regulation | 6uV/V |
Load Regulation | 0.1nA(Typ) |
Maximum Quiescent Current (mA) | 0.008 |
Junction to Ambient | 33°C/W |
Junction to Case | 8°C/W |
Special Features | Current Limit|Thermal Protection |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Industrial |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 0.86 |
Package Width | 3 |
Package Length | 4.04 |
PCB changed | 12 |
Standard Package Name | SO |
Supplier Package | MSOP EP |
Pin Count | 12 |
Applications
Now that we've dissected the specifications, let's explore the diverse applications where the ADI LT3094IMSE#PBF can shine:
· Power Supply Modules: Ideal for powering various electronic components within a circuit.
· Signal Processing Circuits: Ensures stable and precise negative voltage supply for signal processing applications.
· Industrial Control Systems: With its industrial-grade temperature rating, it's well-suited for robust industrial environments.
· Audio Amplifiers: Provides a reliable negative voltage source for audio amplification circuits.
· Testing and Measurement Equipment: Ensures accurate and stable voltage supply in testing setups.
LT3094IMSE#PBF's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
In conclusion, the ADI LT3094IMSE#PBF LDO regulator is a powerhouse in the realm of electronics, offering precision, reliability, and versatility.
