TPS2H160BQPWPRQ1: Features, Specifications & More
Today, we're diving deep into the Texas Instrument TPS2H160BQPWPRQ1, a component that's making waves in the electronics industry. In this comprehensive article, we will delve into its definition, key features, specifications, applications, and a closer look at its manufacturer.
TPS2H160BQPWPRQ1's Overview

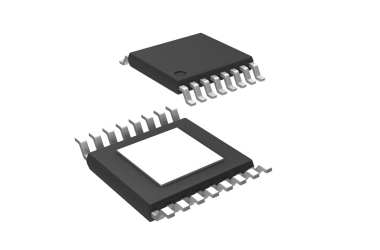

The TPS2H160BQPWPRQ1 is a Current Limit Switch with 2 inputs and 2 outputs. Designed to operate within a wide voltage range of 3.4V to 40V, this automotive-grade device boasts a maximum output current of 2.5A, making it a powerhouse in various applications.
Key Features
Let's delve into the standout features that make TPS2H160BQPWPRQ1 a game-changer:
· Its dual input and dual output design offer unparalleled versatility for handling complex circuitry.
· Operating seamlessly between 3.4V and 40V, it accommodates various applications with ease.
· With a robust maximum output current of 2.5A, it ensures reliable and efficient power delivery.
· Automotive AEC-Q100 qualification makes it resilient to challenging conditions, ideal for automotive applications.
· With an operating temperature range from -40°C to 125°C, it excels in both freezing and scorching environments.
Specifications
Now, let's delve into the technical specifications that make the TPS2H160BQPWPRQ1 a standout choice for electronic projects:
Type | Parameter |
Number of Inputs | 2 |
Number of Outputs | 2 |
Maximum Output Current (A) | 2.5 |
Minimum Input Voltage (V) | 3.4 |
Maximum Input Voltage (V) | 40 |
Switch On Resistance (MOhm) | 155 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Automotive |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.05(Max) |
Package Width | 4.5(Max) |
Package Length | 5.1(Max) |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | HTSSOP EP |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The TPS2H160BQPWPRQ1 finds its application in various scenarios, including:
· Automotive Electronics: TPS2H160BQPWPRQ1 excels in automotive applications, ensuring precise current control and reliable performance in diverse electronic systems within vehicles.
· Power Management Systems: Its high output power and dual configuration make it an ideal component for managing power distribution in complex power management systems.
· Industrial Control Systems: Tackling the demands of industrial environments, the TPS2H160BQPWPRQ1 thrives in ensuring efficient current regulation in control systems.
· Consumer Electronics: From smart devices to home electronics, its wide voltage range and compact form factor make it suitable for various consumer electronics applications, enhancing overall functionality and reliability.
TPS2H160BQPWPRQ1's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
In conclusion, the TPS2H160BQPWPRQ1 from Texas Instruments is a game-changer in the realm of current limit switches. With its dual inputs, high output current, and automotive-grade reliability, it's a go-to choice for engineers seeking a robust solution for their electronic projects.
