What Are RF Mixers?
With the rapid development of wireless communications, radar, satellite communications, and the Internet of Things (IoT), RF mixers have become a crucial component in electronic systems for frequency conversion. Whether it's upconversion and downconversion in cellular base stations or frequency processing in radar signals, mixers play an indispensable role. This article will provide a detailed introduction to this key component, covering its definition, working principle, types, characteristics and advantages, applications, and more.
Catalog
IV. Characteristics and Advantages
I. What Are RF Mixers?

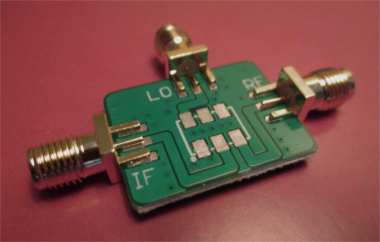

An RF mixer, also known as a frequency mixer, is an active or passive circuit with three ports: the RF input, the local oscillator (LO) input, and the intermediate frequency (IF) output. Its main function is to multiply or switch two electromagnetic signals of different frequencies using nonlinear devices, thereby generating sum (RF + LO) and difference (|RF – LO|) frequency components. The primary goal is to convert frequencies while preserving the phase and amplitude characteristics of the signal as much as possible.
II. Working Principle
At the heart of the mixer is a nonlinear element—such as a diode or a field-effect transistor (FET)—that performs the multiplication of the two input signals. Specifically, when the RF and LO signals combine and pass through this nonlinear device, the output contains the original frequencies, as well as their sum and difference frequencies. A filtering circuit then selects the desired frequency component to achieve frequency conversion.
In addition, switching-type mixers use the LO signal to drive switching elements, enabling periodic sampling and spectral inversion of the signal. These are often employed in applications requiring high linearity and isolation.
III. Types of Mixers
1. Passive Mixers vs. Active Mixers
· Passive mixers typically use diode rings or FET structures. They do not provide gain but can handle high input power, making them suitable for high-power scenarios.
· Active mixers integrate amplifiers or utilize the variable transconductance of FETs to provide conversion gain and lower noise figures, though their linearity is somewhat lower compared to passive mixers.
2. Single-Balanced vs. Double-Balanced Mixers
· Single-balanced mixers suppress interference from one signal (either LO or RF) and feature a simpler structure, but offer limited isolation.
· Double-balanced mixers employ diode bridges or baluns to suppress both LO and RF signal leakage, providing higher port isolation and lower intermodulation distortion.
IV. Characteristics and Advantages
· High Isolation: Effectively reduces signal leakage from LO to IF and RF to IF ports, minimizing interference and ensuring signal purity.
· Low Noise Figure: Helps improve the overall system signal-to-noise ratio, especially critical for weak signal reception.
· Wide Bandwidth Coverage: Modern mixers can operate from hundreds of MHz up to tens of GHz, meeting the demands of various communication and radar applications.
· High Linearity and Dynamic Range: Reduces intermodulation distortion and ensures stable performance in complex signal environments.
· Integration and Miniaturization: Adapted to the size and power consumption requirements of mobile communications and embedded systems.
V. Applications
· Wireless Communications: Frequency upconversion and downconversion in 4G/5G base stations and user equipment.
· Radar and Electronic Warfare: Frequency conversion in transmit/receive chains of pulse and continuous-wave radar systems.
· Satellite Communications: Uplink and downlink frequency conversion in ground stations and satellite links.
· Test and Measurement: Local oscillator reference and IF output in spectrum analyzers and vector network analyzers.
· IoT and Automotive Electronics: Signal processing in low-power sensor nodes and automotive radar systems.
VI. Conclusion
As the industry transitions from 5G to 6G and embraces millimeter-wave communications, RF mixers face increasing demands for higher frequencies, broader bandwidths, and lower power consumption. Future mixers will become more integrated, combining with RF front-end modules (FEM) to deliver all-in-one solutions. Meanwhile, advances in digital and intelligent design will enhance mixers' adaptability and performance stability.
