ERJ-UP8J100V: Features, Specs & More
If you're designing for automotive or industrial systems where performance and durability are non-negotiable, the Panasonic ERJ-UP8J100V deserves your attention. This compact surface-mount resistor packs a surprising level of resilience and reliability—especially when dealing with harsh conditions like high heat or sulfur-rich environments. In this comprehensive article, we'll delve into the intricacies of the ERJ-UP8J100V, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ERJ-UP8J100V's Overview

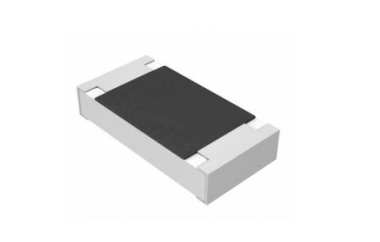

The ERJ-UP8J100V is a thick film surface-mount resistor produced by Panasonic, a trusted leader in electronic components. With a resistance value of 10 ohms, it features 5% tolerance, 0.667W power rating, and strong resistance to sulfur contamination. It's built to meet AEC-Q200 standards, making it ideal for automotive and high-reliability industrial applications.
Key Features
Let's delve into the standout features that make the ERJ-UP8J100V a standout in the world of electronics:
· The resistor is rated for 0.667 watts (2/3W) power handling.
· It has a 10-ohm resistance with a ±5% tolerance.
· It uses thick film technology for enhanced durability.
· The package size is 1206 (3.2mm × 1.6mm).
· It is sulfur-resistant, suitable for polluted or corrosive environments.
· The design supports anti-surge protection for transient voltages.
· It operates in temperatures from -55°C to +155°C.
· The temperature coefficient is ±200ppm/°C for moderate thermal stability.
· It is AEC-Q200 qualified, ensuring automotive-grade reliability.
· It features a surface-mount (SMD) design with pad-style terminations.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ERJ-UP8J100V:
Type | Parameter |
Resistance Value (Ohm) | 10 |
Tolerance | 5% |
Maximum Voltage Rating (V) | 500 |
Current Sensing | No |
Power Rating (W) | 0.667 (2/3) |
Technology | Thick Film |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 155 |
Temperature Coefficient (ppm/°C) | ±200 |
Temperature Range @ Derated Power (°C) | 70 to 155 |
Fail Safe Fusible Resistor | No |
Anti-Surge | Yes |
Anti-Sulfurated | Yes |
Case Size | 1206 |
Termination Style | Pad |
Number of Terminals | 2 |
Packaging | Tape and Reel |
Package Type | SMD |
Package Shape | Rectangular |
Package/Case | 1206 |
Product Length (mm) | 3.2 |
Product Depth (mm) | 1.6 |
Product Height (mm) | 0.6 |
Product Weight (g) | 0.01 |
Mounting | Surface Mount |
Applications
Thanks to its rugged design and AEC-Q200 certification, the Panasonic ERJ-UP8J100V is well-suited for:
· Automotive electronics (ECUs, lighting, infotainment)
· Industrial machinery exposed to chemical pollutants
· Power management circuits with potential voltage surges
· Consumer electronics needing compact, heat-tolerant resistors
· IoT devices in outdoor or high-sulfur environments
ERJ-UP8J100V's Manufacturer
Founded in 1918, Panasonic Corporation has established itself as an industry titan in the electronic components sector. With a rich history spanning over a century, Panasonic has been at the forefront of technological innovation, consistently shaping the landscape of electronic advancements. Renowned for its commitment to quality and precision, Panasonic has become a trusted name in the global market. The company's dedication to pushing the boundaries of what's possible in electronic engineering has led to the creation of cutting-edge products, including the PANASONIC 4TPE470MCL capacitor.
