Are you looking to create your own MP3 USB flash drive player? If you have a small board that can play files from an SD card, then you're in luck! By following these instructions, you can modify the key layout, enhance the USB flash drive playback, and even upgrade the screen display. In this guide, we'll walk you through the process, step by step, so you can enjoy the convenience and versatility of your very own MP3 player.

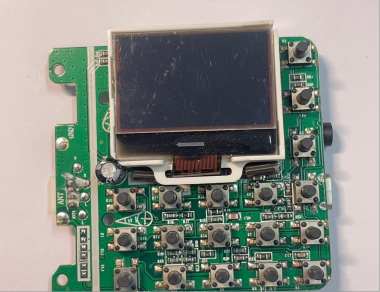

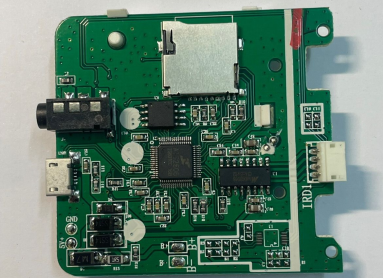

First, let's take a look at this MP3 board, and its general contents are as follows:

Modifying the key layout, USB flash drive playback, and enlarging the screen display.

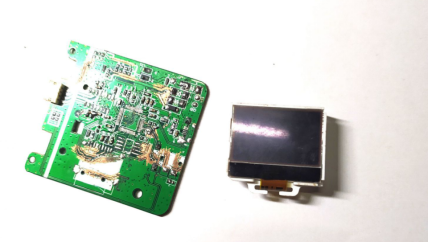

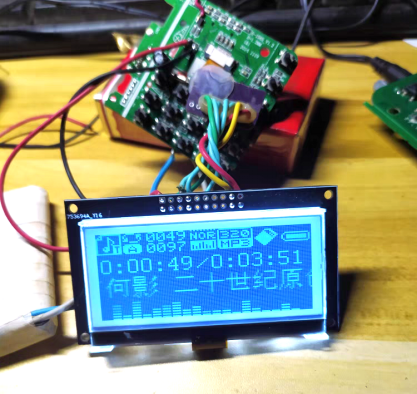

If you want the ATS2506 controller to have more diverse functions, you can remove it, run some wires, and get familiar with its circuitry.

Brief overview of features: USB flash drive playback (abandoning the SD card circuitry) FM radio reception Recording Remote control

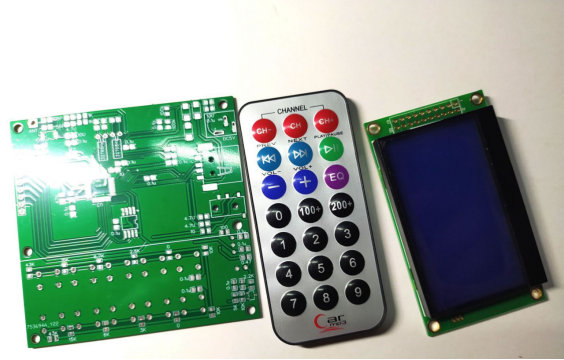

You can find a blue screen for the display online. For the remote control, you can use a simple 21-key 51 MP3 remote control.

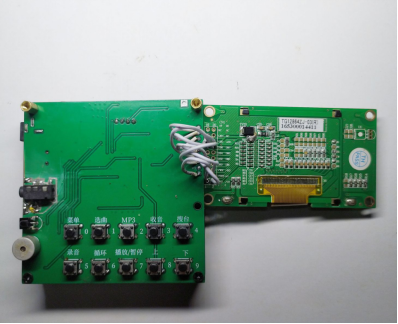

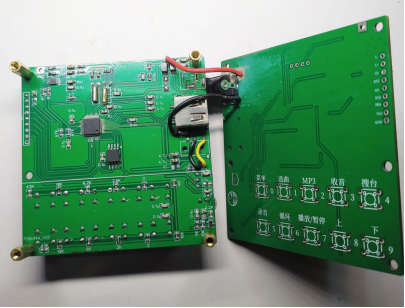

After soldering the board, use a knife to engrave the circuit lines and attach the DC connector to the bottom board using jumper wires. Similarly, attach the headphone jack to the front panel. This arrangement should suffice for now.

Soldering is done by connecting one pin to another with a soldering iron. The components have been tested before assembly, so as long as the circuitry is correct, it should be successful.

MP3 playback

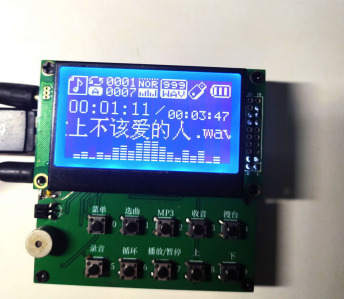

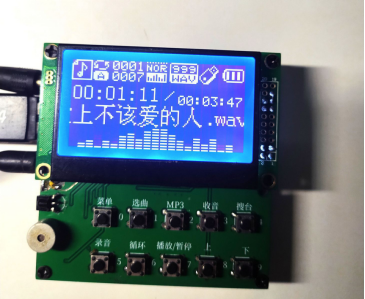

WAV playback

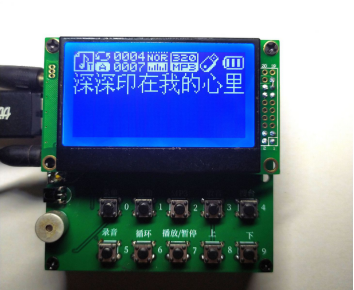

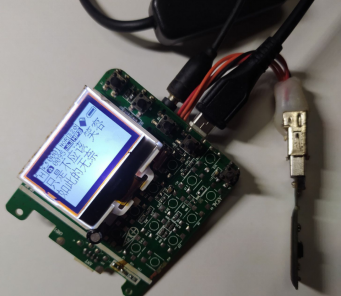

Lyric display

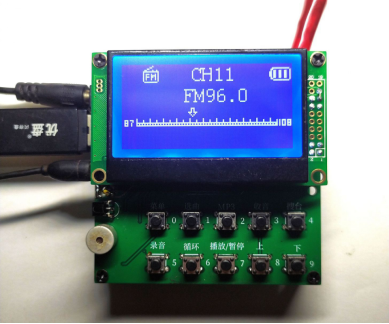

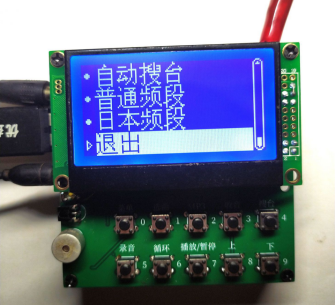

The radio reception is quite good, and you can receive over 20 stations using a flexible wire as an antenna.

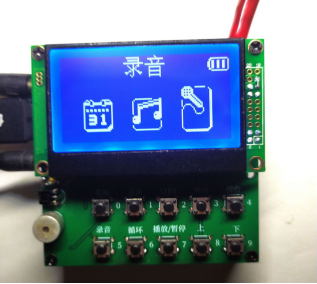

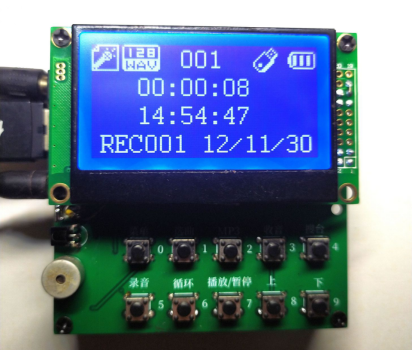

Recording display

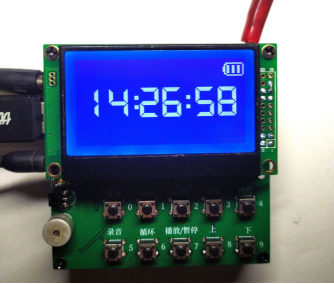

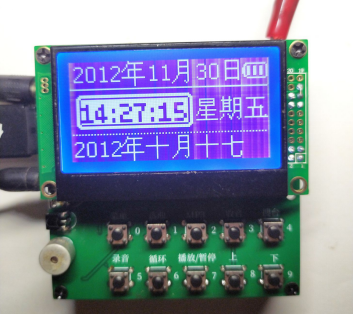

Time and calendar

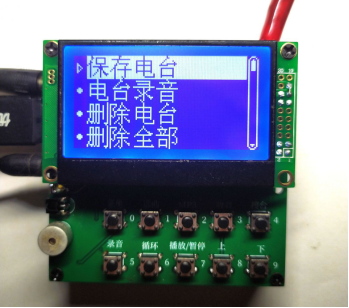

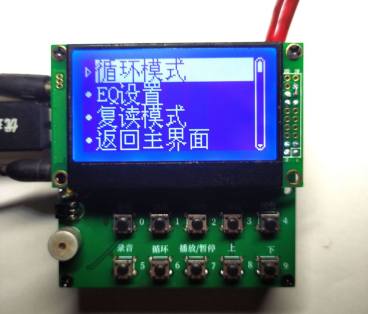

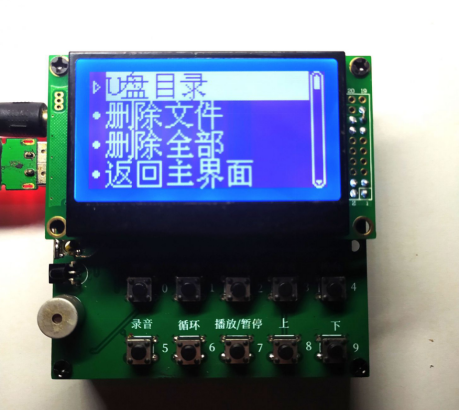

Other functions are displayed and demonstrated.

Main page display

With your newly assembled MP3 USB flash drive player, the possibilities are endless. Whether you're in the mood for music, want to listen to your favorite radio stations, record voice memos, or even control it remotely, this versatile device has got you covered. The crisp display and intuitive interface make navigating through your music library a breeze. So why wait? Start enjoying your customized MP3 player today and immerse yourself in a world of audio entertainment like never before.
