What Are SMD Inductors?
As technology continues to advance, electronic devices are becoming increasingly compact, with high-density circuit boards becoming the norm for modern electronic products. In this process, Surface Mount Device (SMD) inductors, quietly play a crucial and irreplaceable role as a key electronic component. This article delves deep into the realm of SMD inductors.
I. What Are SMD Inductors?

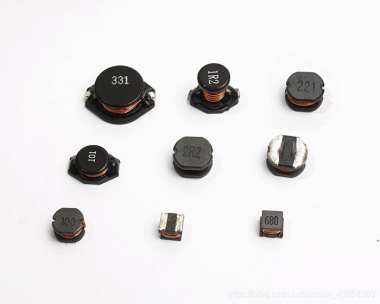

SMD inductors, also known as surface mount inductors, are components embedded in circuit boards using Surface Mount Technology (SMT). Unlike traditional through-hole inductors, SMD inductors are better suited for highly integrated circuit boards and automated production processes. Their characteristics of being compact, lightweight, and high-performing make them an indispensable part of modern electronic devices.
II. Types and Characteristics
SMD inductors come in various types, including ceramic core, ferrite core, and metal oxide core, each with unique characteristics suitable for different applications. The dimensions of these inductors are typically represented by length, width, and height, such as 0603, 0805, and 1206, allowing engineers to make precise selections based on space requirements.
III. Applications
SMD inductors find wide applications in power supplies, Radio Frequency (RF) circuits, communication devices, and more.
· Power Supplies: In power supply applications, SMD inductors are extensively used in voltage regulator circuits. For instance, the LM7805 is a commonly used positive fixed voltage regulator. By incorporating SMD inductors, high-frequency noise in the power supply can be effectively filtered, ensuring a more stable output voltage. This is particularly significant in applications with high demands for power stability, such as microprocessors and microcontrollers.
· RF Circuits: SMD inductors play a crucial role in RF circuits, especially in wireless communication modules. Bluetooth, Wi-Fi, and RFID modules often include SMD inductors to construct antenna matching networks, impedance matching networks, and RF filters, ensuring the stability and reliability of signal transmission.
· Automotive Electronics: In modern automotive electronic systems, power filtering is essential to guarantee the normal operation of various electronic devices. SMD inductors are widely used in automotive power filtering circuits, such as in-car entertainment systems, Engine Control Units (ECUs), and induction power supplies. This helps reduce electromagnetic interference, enhancing the stability of automotive electronic systems.
· Consumer Electronics: In mobile phone chargers, SMD inductors play a crucial role in building the switched-mode power supply circuit. Through SMD inductors, effective filtering of input voltage can be achieved, ensuring the stability and safety of the output voltage. A typical example includes ceramic SMD inductors used in mobile phone chargers.
· Industrial Automation: In the field of industrial automation, Programmable Logic Controllers (PLCs) are common control devices. SMD inductors are used in PLC power modules, and by adding inductors at the power input, noise in the power supply can be effectively suppressed, improving the interference resistance of power modules and ensuring the reliable operation of industrial equipment.
IV. Current Capacity and Inductance Value
The current capacity of SMD inductors depends on their design and size. When selecting SMD inductors, engineers need to carefully consider the current requirements of the circuit, ensuring that the chosen inductor can withstand and stably transmit the required current. Simultaneously, the inductance value is another crucial parameter, measured in henries (H). The choice of inductance value directly affects the response speed and performance of the inductor in the circuit, necessitating detailed circuit analysis and matching during the design phase.
V. Temperature Characteristics and Manufacturing Standards
SMD inductors may be influenced by temperature during operation, making their temperature characteristics crucial. Some SMD inductor designs exhibit excellent temperature stability, maintaining performance within a specified temperature range. Moreover, to ensure product quality and consistency, SMD inductors typically need to comply with a series of manufacturing standards and specifications. Standards set by organizations such as the International Electrotechnical Commission (IEC) and the Electronic Industries Alliance (EIA) play a crucial role in ensuring the reliability and interoperability of SMD inductors.
In conclusion, SMD inductors, as unsung heroes in the electronics components industry, play a pivotal role in modern technology. Their compact design and high performance provide a solid foundation for the development of electronic devices, making them an indispensable part of modern electronic products.
