STM32F103R8T6: Features, Applications, and More
In the ever-evolving realm of electronics, the STM32F103R8T6 stands as a beacon of technological prowess. In this article, let’s delve in its overview, key features, applications, specifications and more.

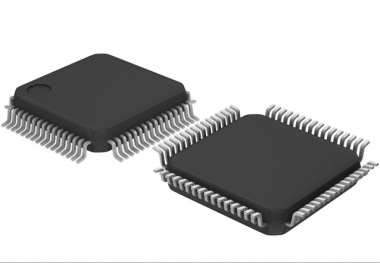

STM32F103R8T6's Overview
The STM32F103R8T6, part of the STM32F family, is a robust microcontroller that employs the 32-bit ARM Cortex M3 core architecture. RISC technology ensures efficient instruction execution, making it a powerhouse for diverse applications.
Key Features
· With a maximum CPU frequency of 72 MHz, the STM32F103R8T6 flexes its computational muscles, supported by a 32-bit data bus, 64KB of Flash memory, and a nimble 20KB of RAM.
· Offering unparalleled versatility, this microcontroller boasts a whopping 51 I/Os, 4 timers, and a dedicated PWM channel, making it a powerhouse for diverse applications.
· The STM32F103R8T6 ensures accuracy in data acquisition with its dual ADC channels (16/16) and an impressive 12-bit ADC resolution, paving the way for meticulous sensor-based projects.
· With multiple communication interfaces, including 3 USART, 1 USB, 2 SPI, 2 I2C, and 1 CAN, the STM32F103R8T6 becomes the linchpin for devices that demand seamless and efficient data exchange.
Specifications
Type | Parameter |
Family Name | STM32F |
Instruction Set Architecture | RISC |
Device Core | ARM Cortex M3 |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 72 |
Maximum Clock Rate (MHz) | 72 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 64KB |
RAM Size | 20KB |
Programmability | Yes |
Interface Type | CAN/I2C/SPI/USART/USB |
Number of I/Os | 51 |
No. of Timers | 4 |
PWM | 1 |
Number of ADCs | Dual |
ADC Channels | 16/16 |
ADC Resolution (bit) | 12/12 |
USART | 3 |
UART | 0 |
USB | 1 |
SPI | 2 |
I2C | 2 |
I2S | 0 |
CAN | 1 |
Ethernet | 0 |
Watchdog | 2 |
Parallel Master Port | No |
Real Time Clock | Yes |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 2 |
Typical Operating Supply Voltage (V) | 2.5|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Maximum Power Dissipation (mW) | 444 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 10 |
Package Length | 10 |
PCB changed | 64 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 64 |
Lead Shape | Gull-wing |
Applications:
The STM32F103R8T6's versatility opens the door to a myriad of applications:
· Industrial Automation: With its industrial-grade temperature range, it's a stalwart in demanding environments.
· Communications: Seamlessly integrates into communication systems with multiple interfaces.
· Sensor Networks: Efficient data processing and communication make it ideal for sensor-driven applications.
STM32F103R8T6's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
For those seeking a balance between performance and efficiency, the STM32F103R8T6 emerges as a compelling choice. Its robust features, versatile connectivity, and precision make it a cornerstone for a wide array of applications. As technology evolves, so does the need for reliable and powerful microcontrollers, and the STM32F103R8T6 is ready to meet those demands head-on.
