STM32F469IIT6: Features, Applications, and More
In the fast-paced realm of electronics, one component stands out for its exceptional capabilities - the STM32F469IIT6. In this comprehensive article, let's delve into its overview, features, specifications, applications, and more.
STM32F469IIT6's Overview

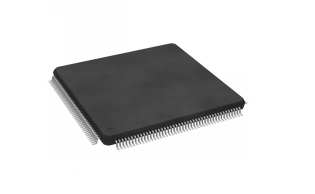

The STMicroelectronics STM32F469IIT6 is a powerful 32-bit ARM Cortex M4 RISC microcontroller unit (MCU) manufactured by STMicroelectronics, featuring a maximum CPU frequency of 180 MHz, 2MB Flash Program Memory, versatile connectivity interfaces, and robust ADC and DAC capabilities.
Key Features
· The STM32F469IIT6 is powered by the ARM Cortex M4 core architecture, clocking in at a speedy 180 MHz, making it ideal for demanding industrial tasks.
· With a substantial 2MB Flash Program Memory and 388KB RAM, the MCU excels not just in size but in performance, ensuring seamless application execution.
· Boasting versatile connectivity options such as CAN, Ethernet, I2C, I2S, SPI, UART, USART, and USB, the STM32F469IIT6 seamlessly integrates into a variety of electronic systems.
· Its ADC and DAC capabilities include triple ADC channels with 24-bit resolution and a single DAC with 12-bit resolution, ensuring precision in analog-to-digital and digital-to-analog conversions.
· The MCU offers a robust communication framework with 4 USART, 4 UART, 2 USB, 6 SPI, 3 I2C, and 2 I2S channels, covering diverse needs from data transmission to device interaction.
Specifications
Type | Parameter |
Family Name | STM32F |
Instruction Set Architecture | RISC |
Device Core | ARM Cortex M4 |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 180 |
Maximum Clock Rate (MHz) | 180 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 2MB |
RAM Size | 388KB |
Programmability | Yes |
Interface Type | CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB |
Number of I/Os | 131 |
No. of Timers | 14 |
PWM | 4 |
Number of ADCs | Triple |
ADC Channels | 24/24/24 |
ADC Resolution (bit) | 12/12/12 |
Number of DACs | Single |
DAC Channels | 2 |
DAC Resolution (bit) | 12 |
USART | 4 |
UART | 4 |
USB | 2 |
SPI | 6 |
I2C | 3 |
I2S | 2 |
CAN | 2 |
Ethernet | 1 |
Watchdog | 2 |
Parallel Master Port | No |
Real Time Clock | Yes |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 1.7 |
Typical Operating Supply Voltage (V) | 2.5|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Maximum Power Dissipation (mW) | 526 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.45(Max) |
Package Width | 24.1(Max) |
Package Length | 24.1(Max) |
PCB changed | 176 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 176 |
Lead Shape | Gull-wing |
Applications
The STM32F469IIT6, with its robust features and specifications, finds its place in a myriad of industrial applications:
· Automotive Systems: Powering control units and sensor interfacing.
· Communication Equipment: Enabling seamless data transfer.
· Medical Devices: Ensuring precision in healthcare electronics.
· Industrial Automation: Driving efficiency in manufacturing processes.
· Consumer Electronics: Enhancing the performance of smart devices.
STM32F469IIT6's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
In conclusion, the STM32F469IIT6 is not just a microcontroller; it's a game-changer in the electronics landscape. Its impressive features, technical specifications, and versatile applications make it an indispensable component for engineers and enthusiasts alike.
