FQD20N06TM: Features, Specifications & More
In this comprehensive article, we'll delve into the intricate details of the ON Semiconductor FQD20N06TM, a Trans MOSFET that's redefining the landscape of power electronics. From its core definition to its key features, specifications, applications, and the manufacturer's insights, join us on a journey through the heart of innovation.
FQD20N06TM's Overview

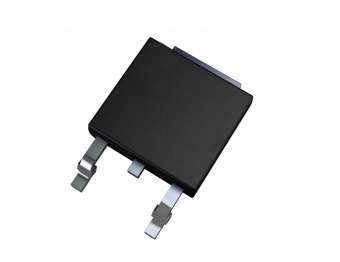

The onsemi FQD20N06TM is a high-performance Power MOSFET designed for enhanced power management applications. This single-channel Trans MOSFET operates in the enhancement mode, harnessing the power of DMOS technology for optimal efficiency.
Key Features
Let's delve into its standout features:
· With a maximum drain-source voltage of 60V, the FQD20N06TM ensures robust performance in diverse electronic setups.
· Boasting a maximum continuous drain current of 16.8A, this MOSFET effortlessly handles power-intensive tasks.
· The DMOS configuration enhances channel efficiency, making the FQD20N06TM a standout performer in the power MOSFET category.
Specifications
Let's delve deeper into the specifications that set the FQD20N06TM apart:
Type | Parameter |
Product Category | Power MOSFET |
Configuration | Single |
Process Technology | DMOS |
Channel Mode | Enhancement |
Channel Type | N |
Number of Elements per Chip | 1 |
Maximum Drain Source Voltage (V) | 60 |
Maximum Gate Source Voltage (V) | ±25 |
Maximum Continuous Drain Current (A) | 16.8 |
Maximum Drain Source Resistance (MOhm) | 63@10V |
Typical Gate Charge @ Vgs (nC) | 11.5@10V |
Typical Gate Charge @ 10V (nC) | 11.5 |
Typical Input Capacitance @ Vds (pF) | 450@25V |
Maximum Power Dissipation (mW) | 2500 |
Typical Fall Time (ns) | 25 |
Typical Rise Time (ns) | 45 |
Typical Turn-Off Delay Time (ns) | 20 |
Typical Turn-On Delay Time (ns) | 5 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 150 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 2.39(Max) |
Package Width | 6.22(Max) |
Package Length | 6.73(Max) |
PCB changed | 2 |
Tab | Tab |
Standard Package Name | TO-252 |
Supplier Package | DPAK |
Pin Count | 3 |
Lead Shape | Gull-wing |
Applications
· Power Supplies: Leveraging its high voltage and current capacities, the FQD20N06TM is a cornerstone in power supply units.
· Motor Controls: The efficient channel management makes it an ideal choice for motor control applications.
· Switching Converters: With rapid turn-on and turn-off times, this MOSFET excels in switching converter circuits.
FQD20N06TM's Manufacturer
ON Semiconductor, stylized in lowercase as "onsemi", stands at the forefront of technological innovation, driving advancements that power intelligent and energy-efficient systems worldwide. With a commitment to delivering cutting-edge solutions, ON Semiconductor provides a comprehensive portfolio of semiconductor products, spanning power management, analog, sensor, and connectivity solutions. Leveraging a legacy of over 20 years, the company has solidified its position as a trusted partner for industries ranging from automotive and industrial to consumer electronics and healthcare.
Conclusion
In conclusion, the onsemi FQD20N06TM stands as a testament to innovation in the electronics industry. Its powerful features, efficient design, and versatility in applications make it a go-to choice for engineers and enthusiasts alike.
