NVTFS4C05NTAG: Features, Specifications & More
In this article, we'll delve into the intricacies of the Onsemi NVTFS4C05NTAG, a Trans MOSFET that's causing ripples in the automotive sector. From its definition to key features, specifications, applications, and the manufacturer's insights, we've got you covered.
NVTFS4C05NTAG's Overview

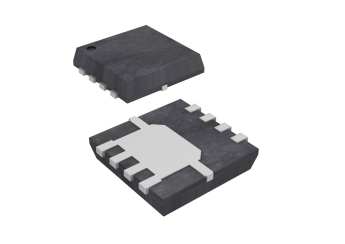

At its core, the Onsemi NVTFS4C05NTAG is a Power MOSFET designed for high-performance applications in the automotive industry. This component is a single quad drain triple source configuration, employing enhancement mode technology with an N-channel.
Key Features
Let's delve into its standout features:
· The NVTFS4C05NTAG operates in enhancement mode, enhancing its efficiency and performance.
· With a temperature grade tailored for the automotive industry, this MOSFET is built to withstand challenging conditions.
· A single quad drain triple source configuration ensures precision in its operation, making it a reliable choice for various applications.
Specifications
Let's delve deeper into the specifications that set the NVTFS4C05NTAG apart:
Type | Parameter |
Product Category | Power MOSFET |
Configuration | Single Quad Drain Triple Source |
Channel Mode | Enhancement |
Channel Type | N |
Number of Elements per Chip | 1 |
Maximum Drain Source Voltage (V) | 30 |
Maximum Gate Source Voltage (V) | ±20 |
Maximum Gate Threshold Voltage (V) | 2.2 |
Maximum Continuous Drain Current (A) | 22 |
Maximum Gate Source Leakage Current (nA) | 100 |
Maximum IDSS (uA) | 1 |
Maximum Drain Source Resistance (MOhm) | 3.6@10V |
Typical Gate Charge @ Vgs (nC) | 14.5@4.5V |
Typical Input Capacitance @ Vds (pF) | 1988@15V |
Maximum Power Dissipation (mW) | 3200 |
Typical Fall Time (ns) | 5|8 |
Typical Rise Time (ns) | 30|25 |
Typical Turn-Off Delay Time (ns) | 20|26 |
Typical Turn-On Delay Time (ns) | 11|8 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 175 |
Supplier Temperature Grade | Automotive |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.75(Max) |
Package Width | 3.05 |
Package Length | 3.05 |
PCB changed | 8 |
Standard Package Name | DFN |
Supplier Package | WDFN EP |
Pin Count | 8 |
Lead Shape | No Lead |
Applications
The Onsemi NVTFS4C05NTAG's versatility extends to various applications, including but not limited to:
· Automotive Electronics: The Onsemi NVTFS4C05NTAG finds its stride in automotive applications, ensuring robust and efficient performance in critical electronic systems within vehicles.
· Power Management Systems: This Power MOSFET is a cornerstone in power management setups, offering precise control and high-performance capabilities for optimized energy distribution.
· Industrial Automation: In the realm of industrial automation, the NVTFS4C05NTAG plays a vital role, enhancing the efficiency and reliability of automated processes with its advanced features.
· Robotics: For cutting-edge robotics applications, this MOSFET is a go-to component, providing the necessary power and precision for the seamless operation of robotic systems in various industries.
NVTFS4C05NTAG's Manufacturer
ON Semiconductor, stylized in lowercase as "onsemi", stands at the forefront of technological innovation, driving advancements that power intelligent and energy-efficient systems worldwide. With a commitment to delivering cutting-edge solutions, ON Semiconductor provides a comprehensive portfolio of semiconductor products, spanning power management, analog, sensor, and connectivity solutions. Leveraging a legacy of over 20 years, the company has solidified its position as a trusted partner for industries ranging from automotive and industrial to consumer electronics and healthcare.
Conclusion
In the realm of electronics, staying abreast of technological advancements is key. The Onsemi NVTFS4C05NTAG, with its impressive features and specifications, is a game-changer for those seeking reliability and performance in their electronic designs.
