IXFH20N80P: Features, Specifications & More
In this comprehensive article, we'll explore the Littlefuse IXFH20N80P, a Power MOSFET that's revolutionizing the electronics industry. Let's delve into its key features, specifications, applications, and the manufacturer's insights.
IXFH20N80P's Overview

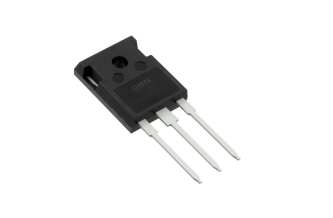

The Littlefuse IXFH20N80P is a Power MOSFET, a Single Configuration, Enhancement Mode, N-Channel device. Its significance lies in its ability to enhance electronic performance by controlling the flow of power with precision.
Key Features
· The IXFH20N80P operates in a single-channel mode, optimizing its performance for specific applications.
· With an enhancement channel type, this MOSFET ensures efficient signal processing, making it ideal for power applications.
· Boasting a Maximum Drain Source Voltage of 800V, the IXFH20N80P empowers devices with robust voltage handling capabilities.
· Handling up to 20A of continuous drain current, this MOSFET is a go-to choice for high-performance electronic systems.
· With a maximum drain source resistance of 520mΩ at 10V, the IXFH20N80P minimizes power loss and enhances overall efficiency.
· Experience rapid signal processing with typical fall and rise times of 24ns, ensuring quick transitions in electronic circuits.
Specifications
Now, let's delve into the technical specifications that make the IXFH20N80P a standout choice for electronic projects:
Type | Parameter |
Product Category | Power MOSFET |
Configuration | Single |
Channel Mode | Enhancement |
Channel Type | N |
Number of Elements per Chip | 1 |
Maximum Drain Source Voltage (V) | 800 |
Maximum Gate Source Voltage (V) | ±30 |
Maximum Continuous Drain Current (A) | 20 |
Maximum Drain Source Resistance (MOhm) | 520@10V |
Typical Gate Charge @ Vgs (nC) | 86@10V |
Typical Gate Charge @ 10V (nC) | 86 |
Typical Input Capacitance @ Vds (pF) | 4685@25V |
Maximum Power Dissipation (mW) | 500000 |
Typical Fall Time (ns) | 24 |
Typical Rise Time (ns) | 24 |
Typical Turn-Off Delay Time (ns) | 85 |
Typical Turn-On Delay Time (ns) | 30 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 150 |
Mounting | Through Hole |
Package Height | 21.45(Max) |
Package Width | 5.3(Max) |
Package Length | 16.24(Max) |
PCB changed | 3 |
Tab | Tab |
Standard Package Name | TO |
Supplier Package | TO-247AD |
Pin Count | 3 |
Lead Shape | Through Hole |
Applications
The versatility of the IXFH20N80P extends across various applications:
· Power Electronics: Ideal for high-power electronic devices due to its voltage and current handling capabilities.
· Switching Power Supplies: Ensures efficient energy transfer in power supply units.
· Motor Control Systems: Facilitates precise control over motors, enhancing overall system performance.
IXFH20N80P's Manufacturer
Littlefuse, a prominent player in the electronic components industry, has established itself as a leading provider of innovative solutions for circuit protection, power control, and sensing applications. With a rich history dating back to its founding in 1927, Littlefuse has consistently been at the forefront of technological advancements, delivering high-quality and reliable products. Specializing in fuses, sensors, and other critical components, Littlefuse is renowned for its commitment to safety, efficiency, and cutting-edge design.
Conclusion
In conclusion, the Littlefuse IXFH20N80P is a game-changing Power MOSFET that opens doors to unparalleled power efficiency.
