AT25256B-SSHL-T: Features, Specifications & More
In this comprehensive article, we're shining a spotlight on the Microchip AT25256B-SSHL-T, an EEPROM Serial-SPI 256K-bit marvel that's redefining the landscape of electronic memory solutions. Let's delve into its definition, key features, specifications, applications, and a closer look at its manufacturer.
AT25256B-SSHL-T's Overview

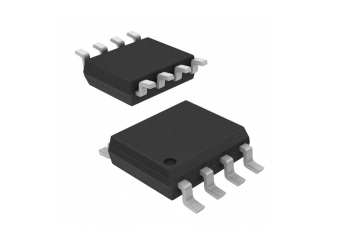

The AT25256B-SSHL-T is an EEPROM (Electrically Erasable Programmable Read-Only Memory) that operates on the Serial-SPI interface. This memory device boasts a chip density of 256K bits, organized into 32Kx8 configuration. Its 15-bit address bus width enables efficient data storage and retrieval.
Key Features
· The AT25256B-SSHL-T boasts a balanced 256K-bit chip density, catering to diverse storage needs with efficiency.
· With a maximum access time of 80 ns, this EEPROM ensures rapid data retrieval, ideal for applications demanding quick responsiveness.
· Operating seamlessly between 1.8V to 5.5V, the AT25256B-SSHL-T accommodates projects with varying power requirements.
· Its Serial-SPI interface enhances communication efficiency, facilitating seamless integration into a wide array of applications.
· Automotive AEC-Q100 qualified, this EEPROM thrives in harsh conditions, offering reliability in temperatures ranging from -40°C to 85°C.
Specifications
Now, let's delve into the technical specifications that make the AT25256B-SSHL-T a standout choice for electronic projects:
Type | Parameter |
Chip Density (bit) | 256K |
Organization | 32Kx8 |
Address Bus Width (bit) | 15 |
Programmability | Yes |
Data Retention (Year) | 100(Min) |
Max. Access Time (ns) | 80 |
Maximum Operating Frequency (MHz) | 20 |
Interface Type | Serial-SPI |
Minimum Operating Supply Voltage (V) | 1.8 |
Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Operating Current (mA) | 10 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Hardware Data Protection | Yes |
Packaging | Tape and Reel |
Number of Bits per Word (bit) | 8 |
Mounting | Surface Mount |
Package Height | 1.48(Max) |
Package Width | 3.99(Max) |
Package Length | 4.98(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | SOIC N |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The AT25256B-SSHL-T finds its application in various domains, including but not limited to:
· Automotive Electronics: The AT25256B-SSHL-T finds its niche in automotive applications, contributing to the efficient functioning of electronic systems within vehicles.
· Data Logging Systems: Ideal for data logging, this EEPROM ensures secure and reliable storage of critical information in a variety of logging applications.
· Industrial Control Systems: With its industrial-grade reliability, the AT25256B-SSHL-T seamlessly integrates into industrial control systems, providing a robust solution for data storage and retrieval.
· Consumer Electronics: From smart devices to entertainment systems, this EEPROM caters to the data storage needs of various consumer electronics, ensuring reliable and efficient performance.
AT25256B-SSHL-T's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
In conclusion, the Microchip AT25256B-SSHL-T stands as a pinnacle of excellence in the world of EEPROMs. Its robust features, versatile applications, and the backing of a reputable manufacturer make it a go-to choice for engineers and designers alike.
