000IRGS4062DTRLPBF: Features, Specifications & More
In this comprehensive article, we unravel the mysteries of the Infineon Technologies IRGS4062DTRLPBF Trans IGBT Chip. Let's delve into its definition, key features, specifications, applications, and a closer look at its manufacturer.
IRGS4062DTRLPBF's Overview

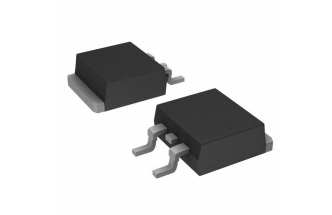

The Infineon Technologies IRGS4062DTRLPBF is a Single Configuration Trans IGBT Chip with a remarkable set of attributes. It operates within a Maximum Collector-Emitter Voltage of 600V and boasts a Maximum Continuous Collector Current of 48A.
Key Features
· The IRGS4062DTRLPBF ensures precise control with a wide ±20V gate emitter voltage range.
· With a robust 600V capability, this chip excels in high-voltage applications.
· Boasting a low 1.6V saturation voltage, it minimizes power loss for enhanced efficiency.
· Ready for demanding tasks, the chip handles a hefty 48A current continuously.
· The low 0.1uA gate emitter leakage current ensures efficient and controlled operation.
· Capable of handling up to 250mW, it ensures reliable performance under diverse conditions.
Specifications
Now, let's delve into the technical specifications that make the IRGS4062DTRLPBF a standout choice for electronic projects:
Type | Parameter |
Configuration | Single |
Maximum Gate Emitter Voltage (V) | ±20 |
Maximum Collector-Emitter Voltage (V) | 600 |
Typical Collector Emitter Saturation Voltage (V) | 1.6 |
Maximum Continuous Collector Current (A) | 48 |
Maximum Gate Emitter Leakage Current (uA) | 0.1 |
Maximum Power Dissipation (mW) | 250 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 175 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 4.83(Max) |
Package Width | 9.65(Max) |
Package Length | 10.67(Max) |
PCB changed | 2 |
Tab | Tab |
Standard Package Name | TO-263 |
Supplier Package | D2PAK |
Pin Count | 3 |
Applications
The versatility of the IRGS4062DTRLPBF extends to various applications, thanks to its robust features and specifications. Some key application areas include:
· Power Supplies: The high voltage handling capability makes the IRGS4062DTRLPBF an ideal choice for power supply systems.
· Motor Drives: With its high current-carrying capacity, this chip is well-suited for motor control applications.
· Inverters: The low saturation voltage ensures efficient energy conversion in inverter circuits.
· Electronic Appliances: From home appliances to industrial machinery, the IRGS4062DTRLPBF finds its place in a wide range of electronic devices.
IRGS4062DTRLPBF's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
In conclusion, the Infineon Technologies IRGS4062DTRLPBF Trans IGBT Chip is a powerhouse that redefines electronic performance. From its robust features to versatile applications, this chip is a game-changer in the world of electronics.
