DIY LED Work Light: Portable & Rechargeable

Enhance your DIY workspace with a customized LED work light designed for optimal convenience and portability. This versatile solution ensures ample illumination during welding or other DIY activities, addressing common issues associated with traditional lighting setups.

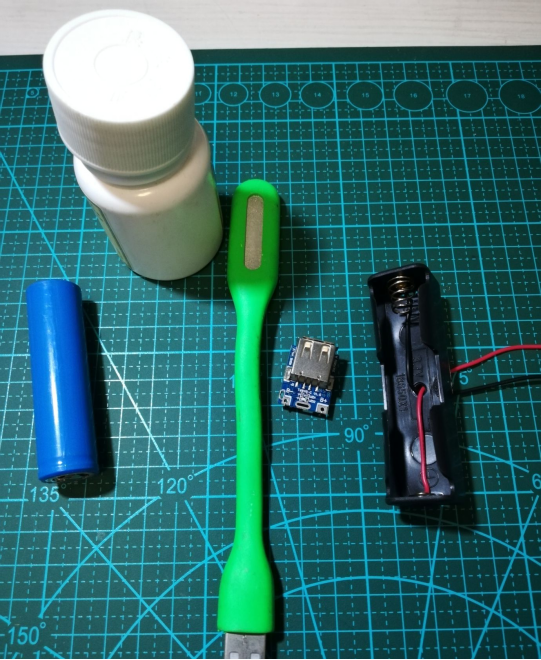

Materials required for this project include:

1 x 18650 battery

1 x Integrated USB charging module

1 x 18650 battery holder

1 x USB flexible light

1 x Empty Western medicine bottle

Follow these straightforward steps to create your own adjustable LED work light:

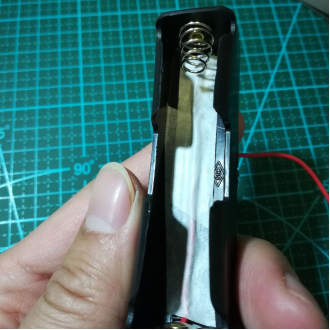

Prepare the battery holder by threading its wires through the center hole for easy insertion into the medicine bottle. Secure the wires in place with masking tape.

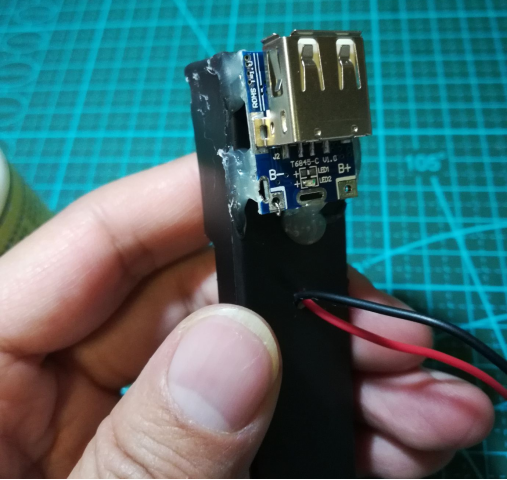

Affix the integrated USB charging module to the positive end of the battery holder using hot glue.

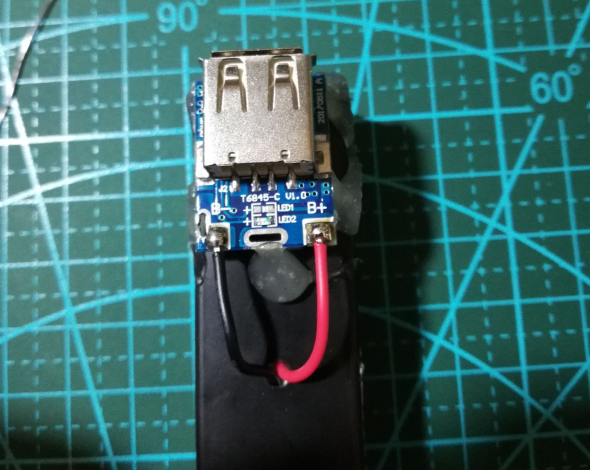

Connect the battery holder and charging module through soldering for a secure and reliable assembly.

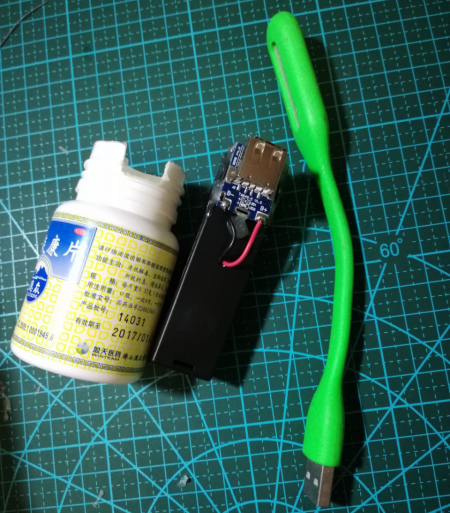

If the medicine bottle opening is too small for the USB plug, carefully widen it using a craft knife to accommodate the battery holder.

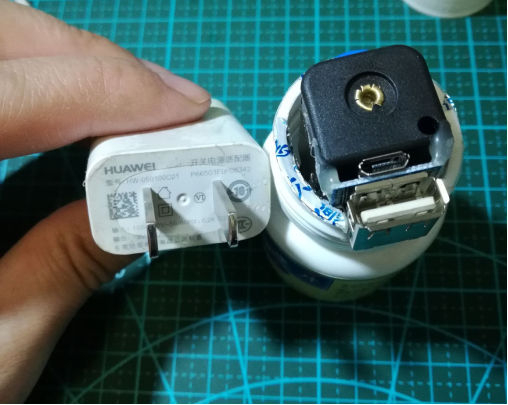

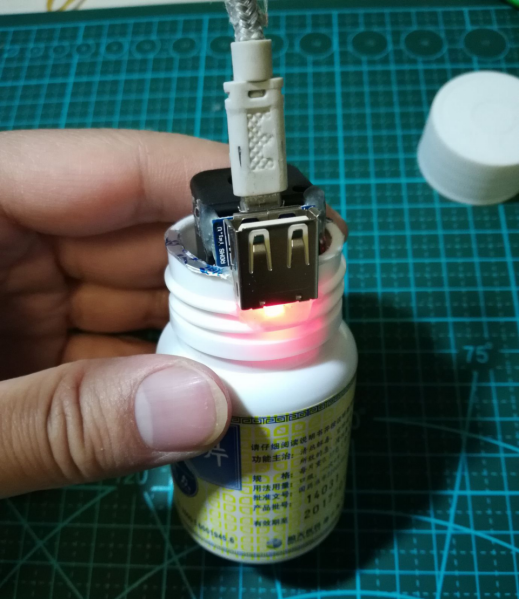

Utilize a 5V phone charger to recharge the 18650 battery, observing the red flashing indicator during the charging process.

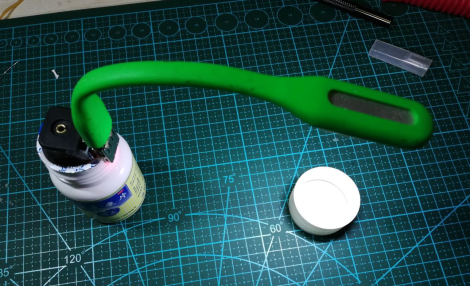

Upon completion, simply connect the USB light, and enjoy the benefits of a practical, non-intrusive lighting solution that is adjustable for proximity, making it especially advantageous for welding tasks.

This DIY LED work light not only improves visibility but also offers extended use through its rechargeable functionality. Its innovative design ensures an unobstructed line of sight, providing an efficient and user-friendly solution for various applications, particularly during welding activities
