In the ever-evolving world of electronics, the Infineon Technologies FM24V01A-GTR stands out as a remarkable feat of engineering. In this comprehensive article, we will delve into its definition, key features, specifications, applications, and a closer look at its manufacturer.

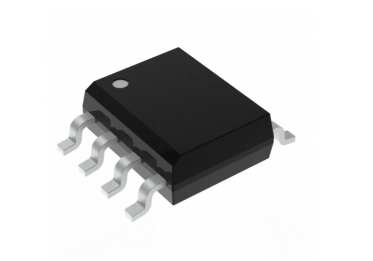

The Infineon Technologies FM24V01A-GTR is a FRAM module with a chip density of 128Kbits, falling within the range of 1K to 256K. Organized in a 16Kx8 configuration, this component boasts an 8-bit data bus width, ensuring efficient data transfer and storage capabilities.
Let's delve into the standout features that make FM24V01A-GTR a game-changer:
· Packed with 128K bits, the FM24V01A-GTR offers substantial storage capacity, catering to a broad range of applications.
· With a flexibility range spanning from 1K to 256K bits, this device adapts to varying memory needs, making it an ideal solution for diverse projects.
· The memory is organized in a 16Kx8 configuration, ensuring efficient data handling and retrieval.
· Boasting a maximum access time of 450 nanoseconds, the FM24V01A-GTR ensures rapid and responsive data retrieval.
· The interface type facilitates seamless communication, enhancing the device's compatibility with a wide array of systems.
· With a minimum operating voltage of 2V and a maximum of 3.6V, this FRAM accommodates different power requirements.
· Designed to withstand harsh conditions, the FM24V01A-GTR operates flawlessly within an industrial temperature range of -40°C to 85°C.
Now, let's delve into the technical specifications that make the FM24V01A-GTR a standout choice for electronic projects:
Type | Parameter |
Chip Density (bit) | 128K |
Density Range (bit) | 1K to 256K |
Organization | 16Kx8 |
Data Bus Width (bit) | 8 |
Max. Access Time (ns) | 450 |
Interface Type | Serial-I2C |
Minimum Operating Supply Voltage (V) | 2 |
Typical Operating Supply Voltage (V) | 2.5|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Operating Current (mA) | 1 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.48(Max) |
Package Width | 3.99(Max) |
Package Length | 4.98(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | SOIC |
Pin Count | 8 |
Lead Shape | Gull-wing |
The versatility of the FM24V01A-GTR extends across various applications, including but not limited to:
· Embedded Systems: Integrate seamlessly into embedded systems, enhancing data storage and retrieval capabilities for improved performance.
· Industrial Automation: Power industrial automation systems with reliable and high-density data storage solutions, ensuring efficient and streamlined operations.
· Smart Sensors: Elevate smart sensor technologies by leveraging the FM24V01A-GTR's Serial-I2C interface and swift data access for real-time information processing.
· Internet of Things (IoT): Enable efficient data handling in IoT devices, ensuring a seamless flow of information for connected systems.
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
In conclusion, the Infineon Technologies FM24V01A-GTR exemplifies the pinnacle of FRAM technology. From its efficient Serial-I2C interface to its compact design and broad application spectrum, this component is a testament to innovation and performance.
