000TMK325ABJ476MM-P: Features, Specifications & More
In this comprehensive article, we will delve into its definition, key features, specifications, applications, and a closer look at its manufacturer.
TMK325ABJ476MM-P's Overview

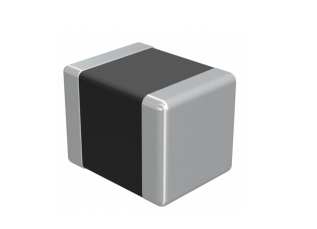

The Taiyo Yuden TMK325ABJ476MM-P is a ceramic chip capacitor designed to elevate electronic circuits to new heights. With a capacitance value of 47uF, a voltage rating of 25VDC, and a tolerance of 20%, this capacitor is crafted to meet the demanding requirements of modern electronics.
Key Features
Let's delve into the standout features that make TMK325ABJ476MM-P a game-changer:
· Boasting a high dielectric, this capacitor ensures optimal performance, making it a preferred choice for various electronic applications.
· The flat construction of TMK325ABJ476MM-P is designed for efficiency, making it ideal for space-conscious electronic designs.
· With surface mount technology (SMT), this capacitor facilitates easy and secure installation on PCBs.
· The pad termination style ensures a reliable connection, contributing to the overall stability of electronic systems.
Specifications
Now, let's delve into the technical specifications that make the TMK325ABJ476MM-P a standout choice for electronic projects:
Type | Parameter |
Capacitance Value | 47uF |
Tolerance | 20% |
Voltage | 25VDC |
Dielectric | X5R |
Technology | Standard |
Microwave Application | No |
Special Features | High Dielectric |
Construction | Flat |
Mounting | Surface Mount |
Termination Style | Pad |
Number of Terminals | 2 |
Case Style | Ceramic Chip |
Dissipation Factor (%) | 10 |
Size (mm) | 3.2 X 2.5 X 2.5 |
Package/Case | 1210 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Product Length (mm) | 3.2 |
Product Depth (mm) | 2.5 |
Product Height (mm) | 2.5 |
Length Tolerance (mm) | ±0.3 |
Depth Tolerance (mm) | ±0.3 |
Height Tolerance (mm) | ±0.3 |
Applications
The versatility of the TMK325ABJ476MM-P extends across various electronic domains. Its proficiency in surface mount technology makes it an invaluable asset in:
· Consumer Electronics: Enhancing the performance and reliability of gadgets.
· Automotive Electronics: Meeting the stringent demands of automotive applications.
· Industrial Electronics: Ensuring stability in industrial automation systems.
TMK325ABJ476MM-P's Manufacturer
TAIYO YUDEN, established in 1950, has been engaged in research, development and production of capacitors, inductors, circuit modules, and SAW/FBAR devices under the philosophy that the process of product commercialization should start with material development. TAIYO YUDEN's extensive range of products demonstrates world-leading support of development and progress in the information technology and electronics industries. In addition, TAIYO YUDEN is proactively pursuing and expanding business activities into energy-related fields as well as strengthening their position in existing applications such as smartphones, PCs and TVs.
Conclusion
In the dynamic world of electronics, choosing the right components is pivotal for success. The TMK325ABJ476MM-P capacitor from Taiyo Yuden emerges as a beacon of excellence, combining advanced technology with practical design features
