DIY Voltage Regulator: XL4015 Module Guide

How to construct a DIY adjustable voltage regulator for convenient troubleshooting?

In this article, let's discover a straightforward method to create a customizable power supply, ideal for tackling minor electronic repairs at your convenience. Employ the 5A module, specifically the XL4015, to craft a rudimentary yet versatile step-down power supply.

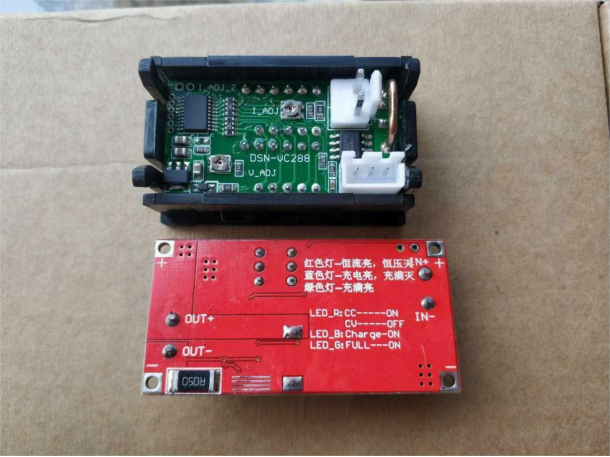

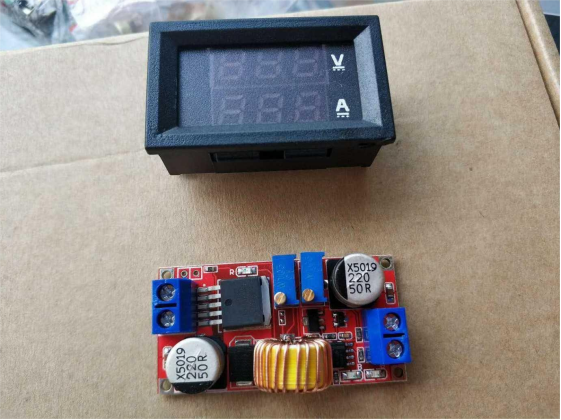

Essential materials encompass a digital voltage and current meter, along with various modules, as elucidated in the accompanying diagram:

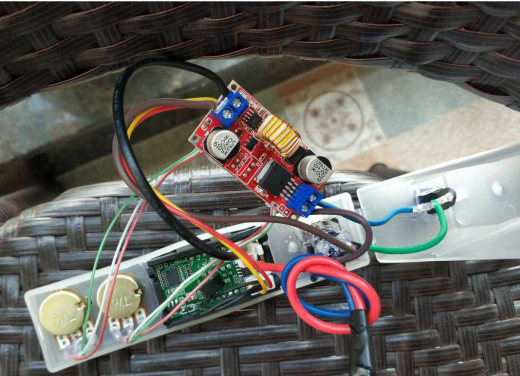

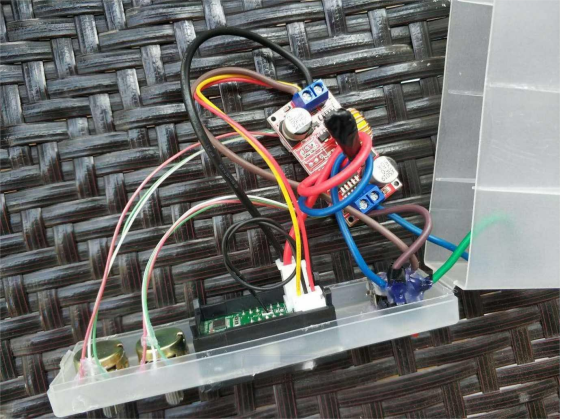

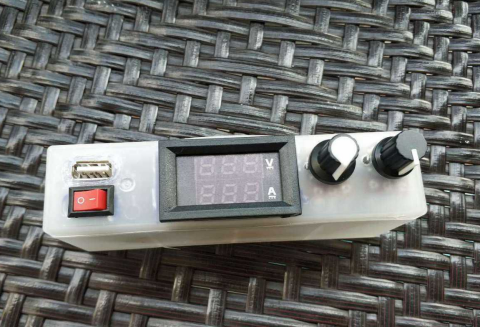

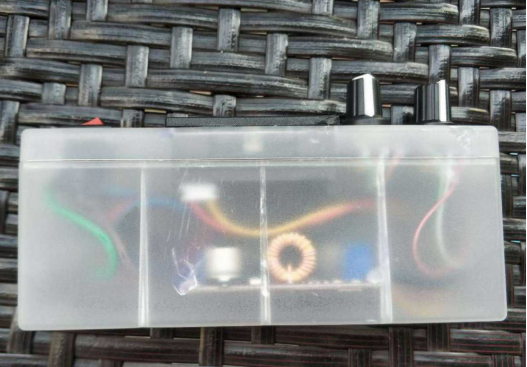

Effortlessly interconnect these modules, utilizing a plastic-wrapped casing from a standard data cable as the outer enclosure.

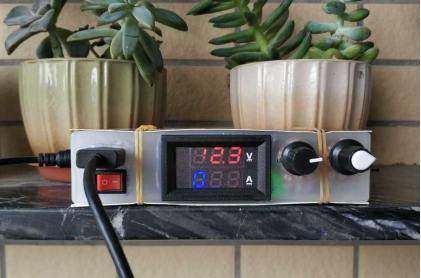

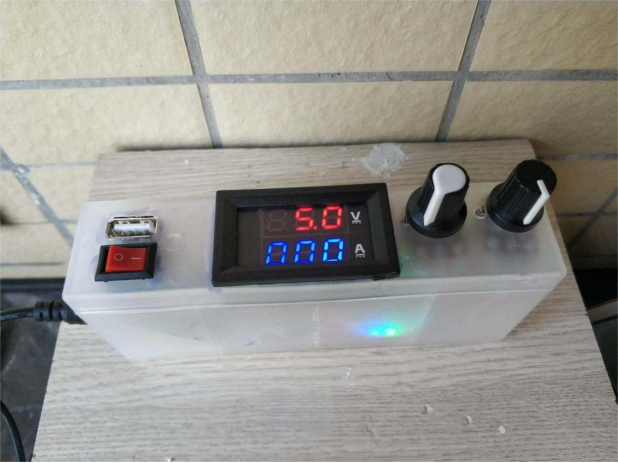

Initiate a brief power test with an external power supply, ensuring smooth functionality.

Upon completion, the resulting product can double as a proficient charger.

Important to note is the consideration of heat dissipation for these modules, especially when operating at currents exceeding 3A. To mitigate potential heating issues, contemplate acquiring modules equipped with integrated heat dissipation mechanisms or implement a custom heat sink for optimal performance. Elevate your troubleshooting capabilities with this accessible and efficient DIY voltage regulator.
