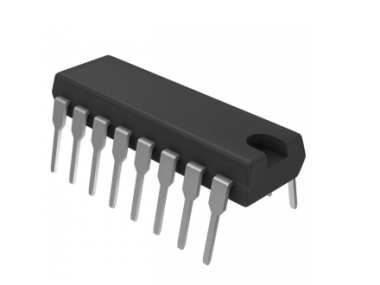

000CD4017BE: Features, Specs & More
Welcome to our article on the Texas Instruments CD4017BE, a powerful decade counter/divider widely used in electronic circuits. In this comprehensive article, we'll delve into the intricacies of the CD4017BE, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
CD4017BE's Overview
The TI CD4017BE belongs to the CD4000 logic family and is specifically designed as a decade counter/divider. This means it can count in decimal digits and divide a clock frequency by 10 in digital circuits. Its operation mode is primarily a UP counter, making it ideal for various applications where sequential counting is required. With its uni-directional design and positive/negative edge triggering capability, the CD4017BE offers flexibility and efficiency in diverse circuit designs.
Key Features
Let's delve into the standout features that make CD4017BE a game-changer:
· The uni-directional design ensures seamless functionality, enhancing the efficiency of your circuits.
· Positive-edge/negative-edge triggering provides flexibility, allowing integration into diverse circuit configurations.
· From 3V to 18V, the CD4017BE adapts to various power supply setups, accommodating different project requirements.
· With a maximum quiescent current of 0.1mA, this component prioritizes energy efficiency, making it an eco-friendly choice.
· Operating flawlessly in temperatures ranging from -55°C to 125°C, the CD4017BE is built to withstand harsh environments.
Specifications
Now, let's delve into the technical specifications that make the CD4017BE a standout choice for electronic projects:
Type | Parameter |
Type | Decade |
Logic Family | CD4000 |
Logic Function | Counter/Divider |
Operation Mode | UP Counter |
Number of Elements per Chip | 1 |
Number of Element Inputs | 1 |
Number of Count Input Enables | 0 |
Number of Selection Inputs per Element | 0 |
Number of Element Outputs | 10 |
Number of Stages | 5 |
Direction Type | Uni-Directional |
Triggering Type | Positive-Edge/Negative-Edge |
Maximum Propagation Delay Time @ Maximum CL (ns) | 650@5V|270@10V|170@15V |
Absolute Propagation Delay Time (ns) | 650 |
Process Technology | CMOS |
Minimum Operating Supply Voltage (V) | 3 |
Typical Operating Supply Voltage (V) | 3.3|5|9|12|15 |
Maximum Operating Supply Voltage (V) | 18 |
Maximum Quiescent Current (mA) | 0.1 |
Propagation Delay Test Condition (pF) | 50 |
Parallel Enable Input | No |
Terminal Count Output | Yes |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Military |
Packaging | Tube |
Mounting | Through Hole |
Package Height | 5.08(Max) - 0.51(Min) |
Package Width | 6.6(Max) |
Package Length | 19.69(Max) |
PCB changed | 16 |
Standard Package Name | DIP |
Supplier Package | PDIP |
Pin Count | 16 |
Lead Shape | Through Hole |
Applications
The versatility of the TI CD4017BE makes it suitable for various applications in electronics, including:
· Sequential LED Lighting: Utilize its decade counter functionality to sequentially light up LEDs, creating eye-catching visual effects in displays and signage.
· Frequency Division: Employ it as a frequency divider in clock generation circuits, dividing high-frequency signals into lower frequencies for synchronization purposes.
· Sequential Logic Circuits: Design complex sequential logic circuits for applications such as automotive electronics, industrial control systems, and consumer electronics.
· Counting and Control Systems: Implement it in counting and control systems for automation, robotics, and process control applications.
CD4017BE's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
In conclusion, the TI CD4017BE stands as a testament to the ingenuity driving the field of electronics forward. With its robust features, versatile applications, and reputable manufacturer, it continues to empower creators worldwide.
