Have you heard about the Winbond Electronics Corporation W25Q128JVFIQ and wondered what makes it stand out? If so, you're in the right place. In this comprehensive article, we'll delve into the intricacies of the W25Q128JVFIQ, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

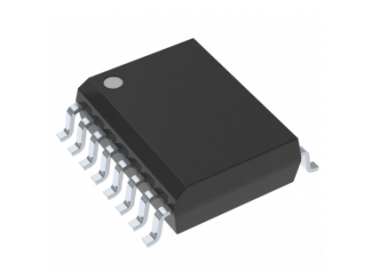

The Winbond Electronics Corporation W25Q128JVFIQ is a cutting-edge NOR Flash Serial with various interfaces including SPI, Dual SPI, and Quad SPI. Designed with precision and efficiency in mind, this component boasts a chip density of 128M-bit, offering exceptional performance for a wide range of applications.
Let's delve into the standout features that make W25Q128JVFIQ a game-changer:
· With a chip density of 128M-bit, the W25Q128JVFIQ provides ample storage space for your data-intensive applications.
· Offering Serial, Dual SPI, and Quad SPI interfaces, this component ensures seamless integration into diverse electronic systems.
· The W25Q128JVFIQ operates with synchronous timing, enhancing data transfer rates and overall system performance.
· Supporting voltage levels from 2.7V to 3.6V, this component accommodates various power supply configurations.
· Built to withstand harsh environments, the W25Q128JVFIQ features an industrial temperature grade, ensuring reliability in extreme conditions.
Now, let's delve into the technical specifications that make the W25Q128JVFIQ a standout choice for electronic projects:
Type | Parameter |
Cell Type | NOR |
Chip Density (bit) | 128M |
Architecture | Sectored |
Boot Block | No |
Block Organization | Symmetrical |
Address Bus Width (bit) | 24 |
Sector Size | 4Kbyte x 4096 |
Page Size | 256byte |
Number of Bits/Word (bit) | 8 |
Number of Words | 16M |
Programmability | Yes |
Timing Type | Synchronous |
Max. Access Time (ns) | 6 |
Maximum Erase Time (S) | 200/Chip |
Maximum Programming Time (ms) | 3/Page |
Process Technology | 58nm |
Interface Type | Serial (SPI, Dual SPI, Quad SPI) |
Maximum Operating Frequency (MHz) | 532 |
Minimum Operating Supply Voltage (V) | 2.7 |
Typical Operating Supply Voltage (V) | 3|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Programming Voltage (V) | 2.7 to 3.6 |
Operating Current (mA) | 25 |
Program Current (mA) | 25 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Command Compatible | Yes |
ECC Support | No |
Support of Page Mode | No |
Minimum Endurance (Cycles) | 100000 |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 2.31 |
Package Width | 7.49 |
Package Length | 10.31 |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | SOIC W |
Pin Count | 16 |
Lead Shape | Gull-wing |
The versatility and reliability of the W25Q128JVFIQ make it suitable for a wide range of applications, including but not limited to:
· Embedded Systems: Ideal for use in embedded systems requiring high-speed data storage and retrieval.
· Consumer Electronics: Used in various consumer electronics devices such as smart TVs, set-top boxes, and gaming consoles.
· Industrial Automation: Critical for industrial automation systems where robust performance and data integrity are paramount.
· Automotive Electronics: Plays a vital role in automotive electronics applications, ensuring efficient data storage and management.
Winbond Electronics Corporation is a Taiwan-based corporation founded in 1987. It's a Specialty memory IC company. It produces semiconductors and several types of integrated circuits (ICs) including dynamic random-access memory, static random-access memory, serial flash, microcontrollers, and Super I/O chips. The Company is the only one in Taiwan with the ability to develop DRAM and FLASH products in-house.
In conclusion, the Winbond Electronics Corporation W25Q128JVFIQ represents the pinnacle of NOR Flash Serial technology, offering exceptional performance, versatility, and reliability. Embrace the power of innovation with W25Q128JVFIQ and unlock endless possibilities in the world of electronics.
