LTV-814S-TA1: Features, Specs & More
Welcome to our comprehensive guide on the LITEON LTV-814S-TA1 – an absolute game-changer in the realm of electronics. In this comprehensive article, we'll delve into the intricacies of the LTV-814S-TA1, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LTV-814S-TA1's Overview

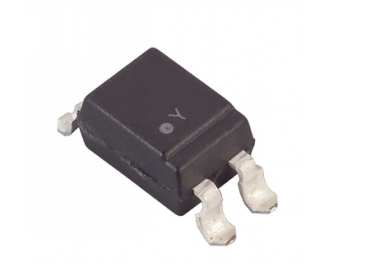

The LITEON LTV-814S-TA1 is a cutting-edge AC-IN 1-CH Transistor DC-OUT component, designed to facilitate seamless electrical transitions. Boasting a compact 4-pin PDIP SMD form factor, this powerhouse is engineered to optimize performance while minimizing space constraints. Its versatility makes it a cornerstone in various electronic applications, promising reliability and efficiency.

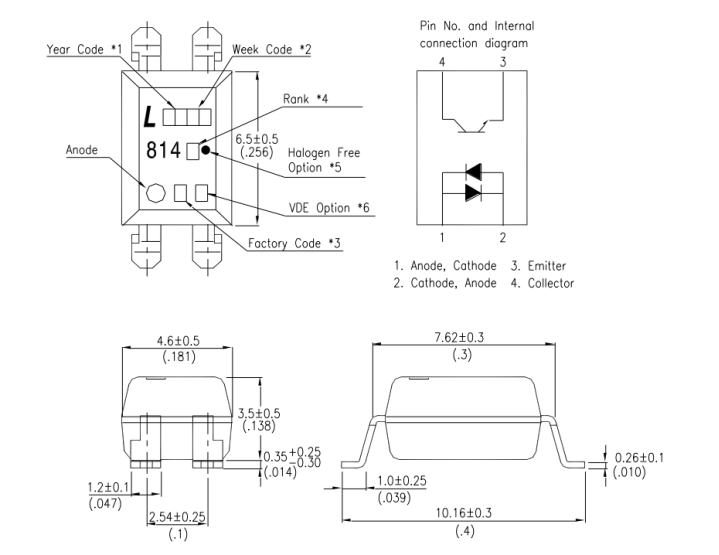

△ LTV-814S
*Note: 1. Year date code; 2. 2-digit work week; 3. Factory identification mark shall be marked ( W: China-CZ, Y: Thailand ); 4. Rank shall be or shall not be marked; 5. "●" for halogen free option; 6. "4" or "V" for VDE option.
Key Features
Let's delve into the standout features that make LTV-814S-TA1 a game-changer:
· Output Type: DC - Enables efficient conversion of AC to DC, ensuring stable power output.
· Input Type: AC - Compatible with standard AC power sources, enhancing its applicability.
· Output Device: Transistor - Utilizes transistor technology for enhanced performance and reliability.
· Isolation Voltage: 5000 Vrms - Provides robust isolation, safeguarding against electrical hazards.
· Temperature Range: -50°C to 110°C - Operates flawlessly across a wide temperature spectrum, suitable for diverse environments.
· Maximum Forward Voltage: 1.4 V - Maintains low forward voltage drop, minimizing power losses.
· Maximum Collector-Emitter Voltage: 35 V - Withstands high voltage levels, ensuring operational safety.
· Current Transfer Ratio: Up to 300% - Delivers efficient signal amplification and transfer.
Specifications
Now, let's delve into the technical specifications that make the LTV-814S-TA1 a standout choice for electronic projects:
Type | Parameter |
Output Type | DC |
Input Type | AC |
Output Device | Transistor |
Number of Channels per Chip | 1 |
Minimum Isolation Voltage (Vrms) | 5000 |
Minimum Operating Temperature (°C) | -50 |
Maximum Operating Temperature (°C) | 110 |
Maximum Forward Voltage (V) | 1.4 |
Maximum Collector-Emitter Voltage (V) | 35 |
Maximum Current Transfer Ratio (%) | 300 |
Standard | CSA|DEMKO|DIN|FIMKO|NEMKO|SEMKO|UL|VDE |
Maximum Collector Current (mA) | 50 |
Maximum Collector-Emitter Saturation Voltage (mV) | 200 |
Maximum Power Dissipation (mW) | 200 |
Typical Forward Voltage (V) | 1.2 |
Maximum Rise Time (us) | 18 |
Maximum Fall Time (us) | 18 |
Maximum Forward Current (mA) | 50 |
Packaging | Tape and Reel |
Minimum Current Transfer Ratio (%) | 20 |
Current Transfer Ratio Test Current (mA) | 1 |
Typical Rise Time (us) | 4 |
Typical Fall Time (us) | 3 |
Mounting | Surface Mount |
Package Height | 3.5 |
Package Width | 6.5 |
Package Length | 4.6 |
PCB changed | 4 |
Standard Package Name | DIP |
Supplier Package | PDIP SMD |
Pin Count | 4 |
Lead Shape | Gull-wing |
Applications
The versatility of the LITEON LTV-814S-TA1 extends across multiple sectors, including but not limited to:
· Industrial Automation: Utilized in control systems, robotics, and motor drives, where precision and reliability are paramount.
· Consumer Electronics: Integrated into appliances, audio equipment, and smart devices, enhancing their functionality and performance.
· Telecommunications: Employed in signal amplification, data transmission, and switching applications, ensuring seamless communication networks.
· Medical Devices: Incorporated into monitoring equipment, diagnostic tools, and therapeutic devices, maintaining accuracy and efficiency in healthcare settings.
LTV-814S-TA1's Manufacturer
Lite-On was started in 1975 by several Taiwanese Texas Instruments ex-employees. Lite-On (also known as LiteOn and LiteON) is a Taiwanese company that primarily manufactures consumer electronics, including LEDs, semiconductors, computer chassis, monitors, motherboards, optical disc drives, and other electronic components. The Lite-On group also consists of some non-electronic companies like a finance arm and a cultural company.
Conclusion
In conclusion, LITEON LTV-814S-TA1 stands as a testament to the ingenuity and innovation driving the electronics industry forward. With its impressive features, robust specifications, and versatile applications, it's no wonder that this AC-IN 1-CH Transistor has become a cornerstone in modern electronics design.
