MOC3083: Features, Specs & More
In the realm of electronics, certain components stand out for their versatility and reliability. One such component is the LITEON MOC3083 Optocoupler Triac. In this comprehensive article, we'll delve into the intricacies of the MOC3083, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MOC3083's Overview
The LITEON MOC3083 is an optocoupler triac, an essential electronic component that enables the isolation and control of high-voltage AC circuits using low-voltage DC input signals. This device acts as a bridge between two separate electrical circuits while ensuring galvanic isolation, thereby enhancing safety and reliability in various applications.
Key Features
Let's delve into the standout features that make MOC3083 a game-changer:
· The MOC3083 features a Triac output, allowing for efficient AC power control.
· With its AC output type, it's tailored for applications requiring alternating current control.
· Boasting a minimum isolation voltage of 5000Vrms, the MOC3083 ensures safety and reliability in diverse circuit environments.
· With a typical forward voltage of 1.2V, it minimizes power losses and enhances efficiency.
· From -40°C to 100°C, this component operates seamlessly across various temperature conditions.
· Packaged in a 6-pin DIP format, it's easy to integrate into circuit designs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LITEON MOC3083:
Type | Parameter |
Output Device | Triac |
Output Type | AC |
Maximum Output Voltage (VAC) | 560 |
Minimum Isolation Voltage (Vrms) | 5000 |
Typical Forward Voltage (V) | 1.2 |
Maximum Forward Voltage (V) | 1.4 |
Repetitive Peak Off-State Voltage (V) | 800 |
Maximum Reverse Voltage (V) | 6 |
Zero-Crossing Voltage (V) | 20 |
Typical Critical Rate of Rise of Off-State Voltage (V/us) | 1500 |
Maximum Forward Current (mA) | 50 |
Minimum Trigger Current (mA) | 5 |
Repetitive Peak Off-State Current (uA) | 0.5 |
Maximum Power Dissipation (mW) | 250 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 100 |
Packaging | Tape and Reel |
Mounting | Through Hole |
Package Height | 3.5 |
Package Width | 6.5 |
Package Length | 7.3 |
PCB changed | 6 |
Standard Package Name | DIP |
Supplier Package | DIP |
Pin Count | 6 |
Lead Shape | Through Hole |
Applications
The versatility of the MOC3083 opens doors to a plethora of applications across various industries. Some common applications include:
· Lighting Control: Implementing dimming and switching functionalities in lighting systems.
· Motor Control: Regulating the speed and direction of AC motors in industrial automation.
· Power Supplies: Isolating control circuits from high-voltage power sources for enhanced safety.
· Heating Systems: Controlling heating elements in appliances for precise temperature management.

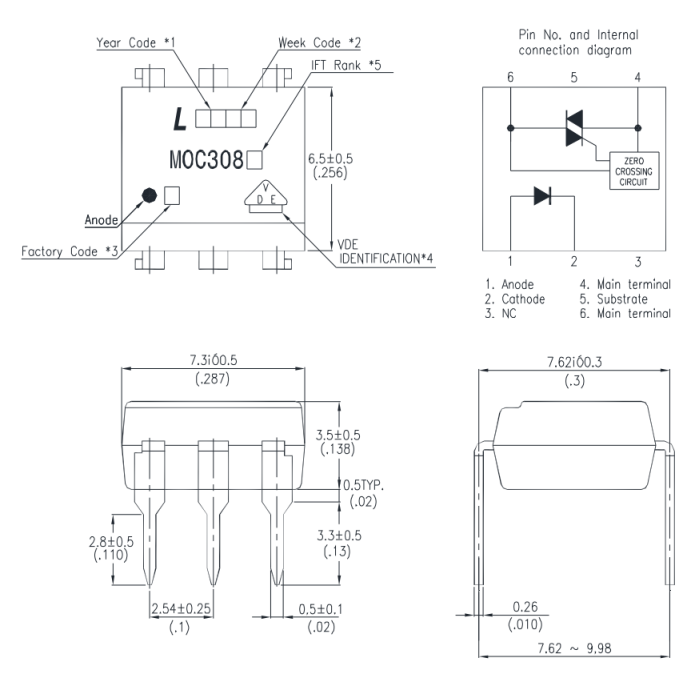

MOC3083 Package Dimensions
*Note: 1. 2-digit year code, example:2016=16; 2. 2-digit work week ranging from '01' to '53'; 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand); 4. VDE option; 5. IFT rank;
*Dimensions are in Millimeters and (Inches).
MOC3083's Manufacturer
Lite-On was started in 1975 by several Taiwanese Texas Instruments ex-employees. Lite-On (also known as LiteOn and LiteON) is a Taiwanese company that primarily manufactures consumer electronics, including LEDs, semiconductors, computer chassis, monitors, motherboards, optical disc drives, and other electronic components. The Lite-On group also consists of some non-electronic companies like a finance arm and a cultural company.
Conclusion
In conclusion, the LITEON MOC3083 is more than just a component; it's a cornerstone of modern electronics. With its impressive features, specifications, and applications, it empowers designers to create innovative solutions across a spectrum of industries.
