LT8610EMSE#TRPBF: Features, Specs & More
Among the multitude of components that power our devices, the ADI LT8610EMSE#TRPBF stands out as a remarkable example of cutting-edge technology. In this comprehensive article, we'll delve into the intricacies of the LT8610EMSE#TRPBF, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LT8610EMSE#TRPBF's Manufacturer
LT8610EMSE#TRPBF's Overview
The ADI LT8610EMSE#TRPBF is a synchronous step-down converter designed to efficiently regulate voltage in a variety of applications. With an adjustable output voltage ranging from 0.97V to 41.58V, this versatile component caters to a wide range of voltage requirements. Its compact 16-pin MSOP EP package, coupled with surface-mount mounting, ensures seamless integration into diverse electronic systems.

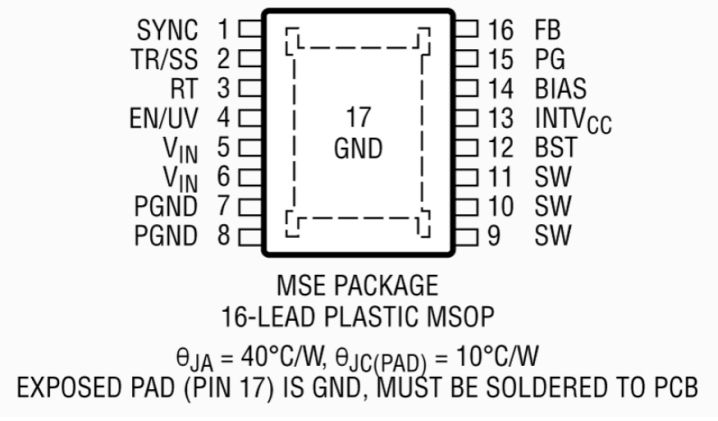

△ Top View - Pin Configuration
Key Features
Let's delve into the standout features that make LT8610EMSE#TRPBF a game-changer:
· From 3.4V to 42V, ensuring compatibility with a broad spectrum of power sources.
· Capable of delivering up to 2.5A of continuous current, empowering devices with ample power.
· With an impressive efficiency rating of 96%, the LT8610EMSE#TRPBF optimizes power usage, prolonging battery life and reducing heat dissipation.
· Operating flawlessly from -40°C to 125°C, making it suitable for harsh environments and industrial applications.
· Packaged in a 16-pin MSOP EP, it offers a space-saving solution for designs where real estate is at a premium.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LT8610EMSE#TRPBF:
Type | Parameter |
Type | Synchronous Step Down |
Output Type | Adjustable |
Switching Frequency (kHz) | 200 to 2200 |
Switching Regulator | Yes |
Number of Outputs | 1 |
Output Voltage (V) | 0.97 to 41.58 |
Maximum Output Current (A) | 2.5 |
Minimum Input Voltage (V) | 3.4 |
Maximum Input Voltage (V) | 42 |
Operating Supply Voltage (V) | 3.4 to 42 |
Typical Switch Current (A) | 4.8 |
Typical Quiescent Current (uA) | 240 |
Line Regulation | 0.02%/V |
Efficiency (%) | 96 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Extended |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.86 |
Package Width | 3 |
Package Length | 4.04 |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | MSOP EP |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The versatility of ADI LT8610EMSE#TRPBF makes it an indispensable component across various industries and applications, including but not limited to:
· Automotive Electronics: Powering onboard systems, infotainment, and advanced driver-assistance systems (ADAS).
· Industrial Automation: Enabling efficient power management in factory automation, robotics, and control systems.
· Telecommunications: Supporting stable power delivery in network infrastructure, base stations, and communication equipment.
· Renewable Energy: Facilitating energy conversion and management in solar inverters and battery charging systems.

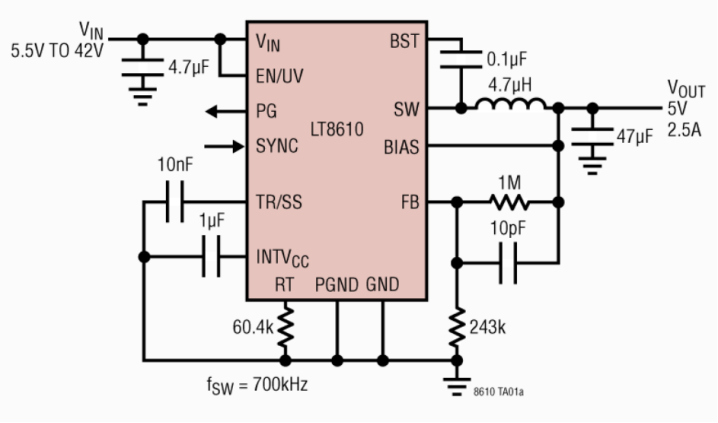

△ Typical Application - 5V 2.5A Step-Down Converter
LT8610EMSE#TRPBF's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
In a world driven by innovation, the ADI LT8610EMSE#TRPBF stands out as a beacon of excellence in voltage regulation technology. Its advanced features, robust specifications, and versatile applications make it a go-to choice for the electronic components industry.
