000RCLAMP0502A.TCT: Features, Specs & More
In the world of electronics, protecting delicate components from electrostatic discharge (ESD) is a top priority. One of the best options for this is the SEMTECH RCLAMP0502A.TCT, a cutting-edge ESD suppressor diode array. In this comprehensive article, we'll delve into the intricacies of the RCLAMP0502A.TCT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
RCLAMP0502A.TCT's Manufacturer
RCLAMP0502A.TCT's Overview

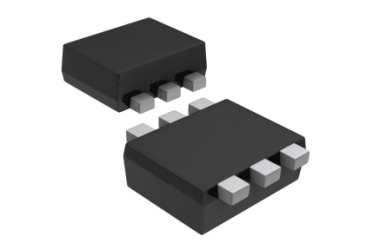

The SEMTECH RCLAMP0502A.TCT is a uni-directional ESD suppressor diode array designed to provide efficient protection for your electronic circuits. It offers dual configuration, with two elements per chip, ensuring optimal coverage against ESD threats. Its compact SC-89 package makes it suitable for various surface-mount applications.

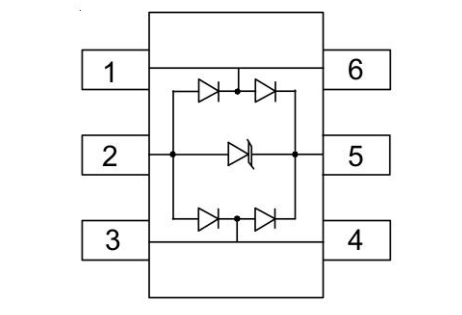

△ SC-89 6L (Top View)
Key Features
Let's delve into the standout features that make the RCLAMP0502A.TCT a standout in the world of electronics:
· This diode array consists of two elements per chip, providing robust protection for your electronic components.
· The uni-directional design ensures efficient protection against voltage spikes, safeguarding your circuits from potential damage.
· The component can handle up to 3A of peak pulse current, providing robust protection during voltage surges.
· The SC-89 package's small form factor (1.6mm x 1.2mm x 0.6mm) makes it easy to integrate into space-limited designs.
· Operating at a maximum working voltage of 5V, this diode array offers reliable protection for a range of electronic devices.
· The maximum clamping voltage of 18V ensures that your circuits remain safe during voltage surges.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the RCLAMP0502A.TCT:
Type | Parameter |
Type | Diode Array |
Configuration | Dual |
Direction Type | Uni-Directional |
Number of Elements per Chip | 2 |
Maximum Working Voltage (V) | 5 |
Minimum Breakdown Voltage (V) | 6 |
Maximum Clamping Voltage (V) | 18 |
Maximum Peak Pulse Current (A) | 3 |
Maximum Leakage Current (uA) | 1 |
Test Current (mA) | 1 |
Peak Pulse Power Dissipation (W) | 50 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.6(Max) |
Package Width | 1.2 |
Package Length | 1.6 |
PCB changed | 6 |
Standard Package Name | SC-89 |
Supplier Package | SC-89 |
Pin Count | 6 |
Applications
The SEMTECH RCLAMP0502A.TCT is widely used in various electronic applications due to its versatility and reliability. Common applications include:
· Consumer Electronics: Protection for devices such as smartphones, tablets, and wearables.
· Industrial Equipment: Safeguards sensitive components in automation systems and industrial controls.
· Automotive Electronics: Protects circuits in automotive applications, including infotainment systems and safety devices.
· Telecommunications: Used in networking equipment to protect against ESD damage.
RCLAMP0502A.TCT's Manufacturer
Semtech Corporation is a leading supplier of high performance analog and mixed-signal semiconductors and advanced algorithms. The company is dedicated to providing proprietary solutions and breakthrough technology for circuit protection (TVS), high reliability, power management, professional AV, signal integrity, smart sensing, video, wireless charging, and wireless RF. Semtech's products are used in the following applications: automotive, broadcast equipment, data centers, PONs, industrial, Internet of Things (IoT), LCD TVs, smartphones, tablets, wearables, and wireless infrastructure.
Conclusion
The SEMTECH RCLAMP0502A.TCT is a highly efficient and reliable ESD suppressor diode array that provides exceptional protection for a wide variety of electronic applications. Its robust specifications and compact design make it a top choice for engineers and manufacturers seeking quality and performance.
