TPS3808G01QDBVRQ1: Features, Specs & More
The TI TPS3808G01QDBVRQ1 Processor Supervisor stands out as a beacon of excellence in managing power with unparalleled accuracy. In this comprehensive article, we'll delve into the intricacies of the TCAN1043ADMTRQ1, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TPS3808G01QDBVRQ1's Manufacturer
TPS3808G01QDBVRQ1's Overview

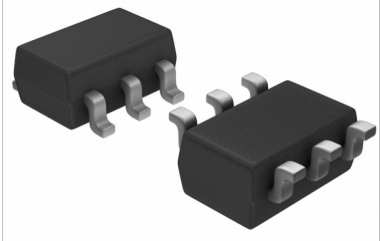

The TI TPS3808G01QDBVRQ1 is a top-tier processor supervisor designed to monitor voltage levels with unmatched precision and efficiency. With its active low/open drain output driver, this component offers a reliable solution for critical voltage monitoring applications. Its compact 6-Pin SOT-23 packaging makes it ideal for space-constrained environments, while its automotive-grade AEC-Q100 certification ensures reliability even in the most demanding conditions.
Key Features
Let's delve into the standout features that make the TPS3808G01QDBVRQ1 a standout in the world of electronics:
· With a minimum threshold of 0.3969V and a typical threshold of 0.405V, the TPS3808G01QDBVRQ1 offers precise control over reset conditions.
· From 0.4V to 5V, accommodating a wide array of voltage requirements across different applications.
· Ranging from 1.8V to 6.5V, ensuring compatibility with diverse power sources.
· Empowering users with the ability to initiate a reset manually, adding an extra layer of control and flexibility.
· Automotive-grade specifications make the TPS3808G01QDBVRQ1 suitable for deployment in automotive electronics, where resilience to extreme temperatures is essential.
· Encased in a compact 6-pin SOT-23 package, facilitating space-efficient mounting on PCBs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TPS3808G01QDBVRQ1:
Type | Parameter |
Output Driver | Active Low/Open Drain |
Minimum Reset Threshold Voltage (V) | 0.3969 |
Typical Reset Threshold Voltage (V) | 0.405 |
Maximum Reset Threshold Voltage (V) | 0.4131 |
Monitored Voltage (V) | 0.4 to 5 |
Minimum Operating Supply Voltage (V) | 1.8 |
Typical Operating Supply Voltage (V) | 0.405 |
Maximum Operating Supply Voltage (V) | 6.5 |
Maximum Supply Current (uA) | 2.7(Typ) |
Power Fail Detection | No |
Watchdog Timer | No |
Manual Reset | Yes |
Chip Enable Signals | No |
Battery Backup Switching | No |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Automotive |
Packaging | Tape and Reel |
Type | Voltage Supervisory |
Mounting | Surface Mount |
Package Height | 1.1 |
Package Width | 1.75(Max) |
Package Length | 3.05(Max) |
PCB changed | 6 |
Standard Package Name | SOT |
Supplier Package | SOT-23 |
Pin Count | 6 |
Lead Shape | Gull-wing |
* TPS3808G01QDBVRQ1's Datasheet
Applications
The TI TPS3808G01QDBVRQ1 finds applications in a wide range of electronic systems, including but not limited to:
· Automotive Electronics: With its Automotive Grade temperature range and robust design, the TPS3808G01QDBVRQ1 is ideal for use in automotive applications where reliability is paramount.
· Industrial Control Systems: From factory automation to power distribution, the TPS3808G01QDBVRQ1 ensures uninterrupted operation in industrial environments with varying voltage conditions.
· Consumer Electronics: From smartphones to home appliances, the TPS3808G01QDBVRQ1 provides essential voltage monitoring and reset functions, enhancing the reliability of consumer electronics devices.
TPS3808G01QDBVRQ1's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
In conclusion, the TI TPS3808G01QDBVRQ1 Processor Supervisor is a critical component in electronic systems, providing essential voltage monitoring and reset functions to ensure stable and reliable operation. With its impressive features, specifications, and applications, it's no wonder why engineers trust Texas Instruments for their semiconductor needs.
