What Are PIR Sensors?

In the electronics components industry, Passive Infrared Sensors (PIR sensors) stand out as a crucially important component. This article delves into the definition, working principles, characteristics, advantages, applications, and comparison with active infrared sensors, providing a comprehensive overview.

Catalog

I. What are PIR Sensors?

II. Working Principle

III. Characteristics & Advantages

IV. Applications

V. Active Infrared Sensors vs. Passive Infrared Sensors

VI. Conclusion

I. What are PIR Sensors?

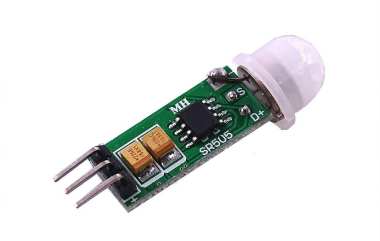

PIR sensors, commonly known as "PIR", or occasionally as "PID" for "passive infrared detector", are electronic sensors that detect infrared (IR) light emitted by objects within their field of view. Primarily utilized in PIR-based motion detectors, they detect general movement without identifying the source.

In the year 1800, experiments with thermometers conducted by the Astronomer Sir William Herschel revealed that infrared radiation is invisible radiation, with lower energy than red light. Subsequent studies showed that over half of the sun’s energy reaches Earth in the form of infrared radiation.

II. Working Principle

The operation of PIR sensors is based on the detection of infrared radiation. Internally, these sensors comprise infrared detectors and signal processing circuits. All objects emit heat energy above absolute zero, typically in the form of electromagnetic radiation, predominantly at infrared wavelengths, which can be detected by electronic devices designed for this purpose.

III. Characteristics & Advantages

· Affordable: Constructed from readily available materials, PIR sensors are cost-effective, suitable for large-scale applications.

· Easy-to-install: They come ready out of the box, often requiring no professional installation.

· Energy-efficient: Due to their passive nature, PIR sensors consume minimal energy—approximately 1 watt-hour per day in standby mode. Hence, it's increasingly common for them to be powered by solar energy.

· Privacy: As PIR sensors only detect changes in heat energy, they don't collect personal data through motion detection.

IV. Applications

PIR sensors find wide-ranging applications across various domains, including but not limited to:

· Security Systems: Detecting intrusions, triggering alarms, or video surveillance.

· Automatic Lighting: Controlling the switching on and off of lights based on human activity, thereby conserving energy.

· Smart Homes: Integrated into smart home systems for automated control and intelligent services.

V. Active Infrared Sensors vs. Passive Infrared Sensors

There are notable differences between active infrared sensors and PIR sensors in terms of working principles and application scenarios:

· Working Principle: Active infrared sensors emit infrared beams and monitor their reflection, whereas PIR sensors solely detect changes in infrared radiation in the environment.

· Application Scenarios: Active infrared sensors are suitable for distance measurement, speed detection, etc., while PIR sensors are suitable for detecting human activity, object motion, etc.

· Cost & Complexity: Due to the absence of transmitters and additional components, PIR sensors typically have lower costs and are easier to install and maintain compared to active infrared sensors.

VI. Conclusion

Passive Infrared Sensors (PIR sensors), with their high sensitivity, low power consumption, rapid response, and diverse application areas, play an indispensable role in the electronics components industry. As a vital technology, PIR sensors continue to drive the development of intelligence and automation in the industry.
