PUSB3FR4Z: Features, Specs & More
One component that plays a crucial role in safeguarding electronic systems against electrostatic discharge (ESD) is the Nexperia PUSB3FR4Z ESD Suppressor TVS Uni-Dir. In this comprehensive article, we'll delve into the intricacies of the PUSB3FR4Z, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
PUSB3FR4Z's Overview

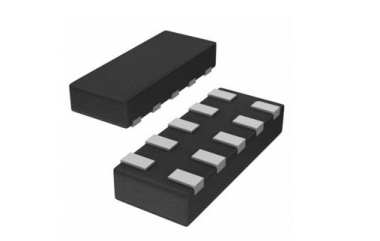

The Nexperia PUSB3FR4Z is a Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronics from voltage spikes caused by ESD events. This device, housed in a 10-pin DFN-A package, boasts a uni-directional configuration with quad common anodes, making it ideal for a wide range of applications where protection against ESD is critical.
Key Features
Let's delve into the standout features that make the PUSB3FR4Z a standout in the world of electronics:
· With a maximum working voltage of 3.3V, the PUSB3FR4Z ensures optimal protection without compromising performance.
· At just 3 volts (typical), this suppressor swiftly clamps down on transient voltages, preventing damage to sensitive electronics.
· With a maximum leakage current of 0.1μA, the PUSB3FR4Z maintains efficiency while offering reliable ESD protection.
· Packaged in a surface-mount DFN-A format, this device boasts a diminutive footprint, making it ideal for space-constrained applications.
· From a bone-chilling -40°C to a scorching 85°C, the PUSB3FR4Z thrives in diverse environmental conditions, ensuring consistent performance.
· With a capacitance value of 0.34pF, this ESD suppressor strikes the perfect balance between protection and signal integrity.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the PUSB3FR4Z:
Type | Parameter |
Type | TVS |
Configuration | Quad Common Anode |
Direction Type | Uni-Directional |
Number of Elements per Chip | 4 |
Maximum Working Voltage (V) | 3.3 |
Maximum Clamping Voltage (V) | 3(Typ) |
Maximum Leakage Current (uA) | 0.1 |
Capacitance Value (pF) | 0.34 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.45(Max) |
Package Width | 1 |
Package Length | 2.5 |
PCB changed | 10 |
Standard Package Name | DFN |
Supplier Package | DFN-A |
Pin Count | 10 |
Applications
The versatility of the PUSB3FR4Z makes it an indispensable component in a wide range of electronic devices and systems, including but not limited to:
· Consumer Electronics: From smartphones to laptops, the PUSB3FR4Z provides essential ESD protection, safeguarding delicate components from potential damage.
· Industrial Equipment: In industrial settings where electronic control systems are prevalent, the PUSB3FR4Z ensures uninterrupted operation by shielding critical circuits from ESD-induced failures.
· Automotive Electronics: With the proliferation of electronics in modern vehicles, the PUSB3FR4Z plays a vital role in enhancing the reliability of automotive electronic systems, protecting against ESD events caused by factors such as static electricity discharge.
· Telecommunications: In telecommunications infrastructure, the PUSB3FR4Z safeguards sensitive equipment from voltage surges, ensuring uninterrupted communication networks.
PUSB3FR4Z's Manufacturer
Nexperia, a leading force in the electronic components industry, stands as a testament to innovation and expertise. Born out of NXP Semiconductors in 2017, Nexperia swiftly emerged as an independent company, building on a legacy of over 60 years of semiconductor excellence. With a rich history rooted in technological advancements, Nexperia has established itself as a global powerhouse, specializing in the design and manufacturing of essential electronic components. Renowned for its commitment to quality, reliability, and cutting-edge solutions, Nexperia continues to shape the future of electronics, providing components that drive advancements in various industries, from automotive to consumer electronics.
Conclusion
In conclusion, the Nexperia PUSB3FR4Z ESD Suppressor TVS Uni-Dir stands as a testament to the relentless pursuit of excellence in electronics protection. With its advanced features, robust specifications, versatile applications, and the backing of a reputable manufacturer, this component offers unparalleled reliability in safeguarding electronic devices against the perils of electrostatic discharge.
