AT24C256C-SSHL-T: Features, Specs & More
In the fast-paced realm of electronics, every component plays a crucial role in shaping the landscape of technological innovation. In this comprehensive article, we'll delve into the intricacies of the AT24C256C-SSHL-T, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
AT24C256C-SSHL-T's Manufacturer
AT24C256C-SSHL-T's Overview

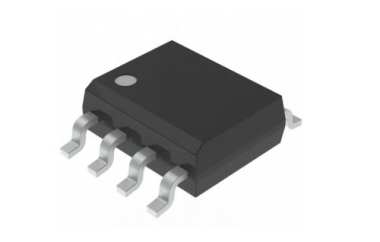

The Microchip AT24C256C-SSHL-T belongs to the family of EEPROM Serial-I2C chips, offering a remarkable capacity of 256K-bit (32K x 8). This versatile chip comes in an 8-Pin SOIC package, making it suitable for a wide array of applications across various industries.
Key Features
Let's delve into the standout features that make the AT24C256C-SSHL-T a standout in the world of electronics:
· Chip Density: With a hefty 256K-bit capacity, the AT24C256C-SSHL-T ensures ample storage for critical data.
· Organization: Organized in a 32Kx8 configuration, providing efficient data organization and access.
· Programmability: The chip offers programmability, allowing for flexible usage tailored to specific application requirements.
· Data Retention: Boasting a remarkable data retention of up to 100 years (minimum), ensuring long-term reliability.
· Max. Access Time: With a swift access time of 450 ns, the chip enables rapid retrieval of stored data.
· Interface Type: Featuring a Serial-I2C interface, facilitating seamless communication with other components.
· Operating Voltage: Compatible with a wide range of operating voltages, from 1.7V to 5.5V, ensuring versatility and adaptability.
· Temperature Range: Operating seamlessly across temperatures ranging from -40°C to 85°C, suitable for diverse environmental conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the AT24C256C-SSHL-T:
Type | Parameter |
Chip Density (bit) | 256K |
Organization | 32Kx8 |
Address Bus Width (bit) | 15 |
Programmability | Yes |
Data Retention (Year) | 100(Min) |
Max. Access Time (ns) | 450 |
Maximum Operating Frequency (MHz) | 1 |
Interface Type | Serial-I2C |
Minimum Operating Supply Voltage (V) | 1.7 |
Typical Operating Supply Voltage (V) | 1.8|2.5|3.3|5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Operating Current (mA) | 3 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Hardware Data Protection | Yes |
Packaging | Tape and Reel |
Number of Bits per Word (bit) | 8 |
Mounting | Surface Mount |
Package Height | 1.25(Min) |
Package Width | 3.9 |
Package Length | 4.9 |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | SOIC N |
Pin Count | 8 |
Lead Shape | Gull-wing |
* AT24C256C-SSHL-T's Datasheet
Applications
The Microchip AT24C256C-SSHL-T finds applications across diverse domains, including but not limited to:
· Embedded Systems: Ideal for storing configuration data, calibration parameters, and firmware updates in embedded systems.
· Consumer Electronics: Used in smart devices, IoT applications, and consumer electronics for data storage and retrieval.
· Industrial Automation: Deployed in industrial automation systems for storing operational parameters, event logs, and configuration settings.
· Automotive Electronics: Utilized in automotive electronics for storing vehicle diagnostics, user preferences, and firmware updates.
AT24C256C-SSHL-T's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
In conclusion, the Microchip AT24C256C-SSHL-T stands as a testament to innovation and versatility in the realm of EEPROM Serial-I2C chips. With its exceptional features, robust specifications, and diverse applications, this microchip remains a cornerstone in modern electronics design.
