ADUM1401CRWZ-RL: Features, Specs & More
Welcome to the definitive guide on one of the most remarkable innovations in electronics – the ADI ADUM1401CRWZ-RL digital isolator. In this comprehensive article, we'll delve into the intricacies of the ADUM1401CRWZ-RL, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ADUM1401CRWZ-RL's Overview

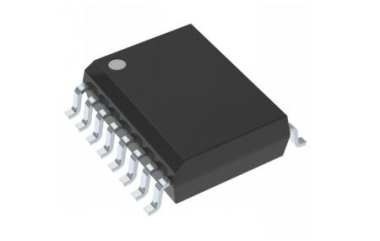

At its core, the ADUM1401CRWZ-RL is a digital isolator designed to provide robust electrical isolation between two circuits while maintaining signal integrity. This innovative component utilizes CMOS technology, boasting four channels per chip and a maximum data rate of 90Mbps. With a slew of impressive specifications and features, it's no wonder that the ADUM1401CRWZ-RL has become a staple in various electronic applications.
Key Features
Let's delve into the standout features that make the ADUM1401CRWZ-RL a standout in the world of electronics:
· With a maximum data rate of 90Mbps, the ADUM1401CRWZ-RL delivers blazing-fast transmission, catering to the demands of modern electronics.
· From its impressive rise and fall times (2.5ns Typ) to minimal pulse width distortion (2ns Max), every specification is meticulously crafted to guarantee optimal performance.
· With an operating voltage range spanning from 2.7V to 5.5V, this digital isolator adapts seamlessly to diverse environments, ensuring flexibility and compatibility.
· Boasting a minimum isolation voltage of 2500Vrms, the ADUM1401CRWZ-RL provides a robust barrier against electrical hazards, safeguarding both equipment and users.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ADUM1401CRWZ-RL:
Type | Parameter |
Type | General Purpose |
Process Technology | CMOS |
Number of Channels per Chip | 4 |
Maximum Data Rate | 90Mbps |
Maximum Rise Time (ns) | 2.5(Typ) |
Maximum Fall Time (ns) | 2.5(Typ) |
Minimum Pulse Width (ns) | 11.1 |
Maximum Pulse Width Distortion (ns) | 2 |
Maximum Propagation Delay Skew (ns) | 10 |
Output Type | CMOS |
Maximum Operating Supply Voltage (V) | 5.5 |
Minimum Operating Supply Voltage (V) | 2.7 |
Maximum Propagation Delay Time (tPHL) (ns) | 32 |
Minimum Isolation Voltage (Vrms) | 2500 |
Maximum Propagation Delay Time (tPLH) (ns) | 32 |
Maximum Working Insulation Voltage | 560Vp |
Maximum Quiescent Supply Current (mA) | 0.53/0.21 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 105 |
Packaging | Tape and Reel |
Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
Forward/Reverse Channels | 3/1 |
Minimum Common Mode Rejection (kV/us) | 25 |
Coupling Type | Magnetic Coupling |
Mounting | Surface Mount |
Package Height | 2.35(Max) |
Package Width | 7.6(Max) |
Package Length | 10.5(Max) |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | SOIC W |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The versatility of the ADUM1401CRWZ-RL extends across a myriad of applications, including but not limited to:
· Industrial Automation: From motor control to sensor interfacing, this digital isolator ensures reliable communication while maintaining crucial electrical isolation.
· Medical Devices: In medical equipment where safety is paramount, the ADUM1401CRWZ-RL plays a pivotal role in ensuring signal integrity and patient safety.
· Telecommunications: Whether in data transmission or network equipment, the robust performance of this isolator enhances system reliability in telecommunications infrastructure.
· Automotive Electronics: In the automotive sector, where ruggedness is essential, this digital isolator withstands harsh environments, making it ideal for applications such as battery management systems and powertrain control.
ADUM1401CRWZ-RL's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
In conclusion, the ADI ADUM1401CRWZ-RL digital isolator stands as a testament to innovation and reliability in the realm of electronics. With its advanced features, robust performance, and versatile applications, this component unlocks a world of possibilities for engineers and designers alike.
