AD2S1205WSTZ: Features, Specs & More
In the world of automotive electronics, precision and reliability are paramount. One of the components that stand out for its performance in these critical areas is the ADI AD2S1205WSTZ. In this comprehensive article, we'll delve into the intricacies of the AD2S1205WSTZ, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
AD2S1205WSTZ's Overview

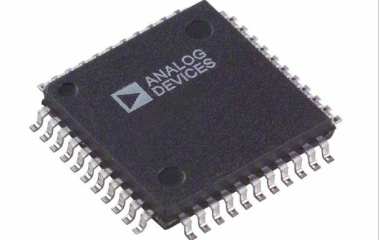

At its core, the AD2S1205WSTZ is a Resolver to Digital converter, offering unparalleled accuracy and performance. Designed to convert resolver signals into digital data with remarkable precision, this advanced device boasts a 12-bit resolution, ensuring meticulous accuracy in automotive systems.
Key Features
Let's delve into the standout features that make the AD2S1205WSTZ a standout in the world of electronics:
· With a 12-bit resolution, the AD2S1205WSTZ delivers unparalleled accuracy, ensuring precise measurements even in the most demanding scenarios.
· Boasting an impressive accuracy of ±22 arcmin, this converter leaves no room for error, making it ideal for critical automotive functions.
· Offering both serial (3-Wire, SPI) and parallel interfaces, the AD2S1205WSTZ provides flexibility in communication, seamlessly integrating into existing systems.
· Supporting differential input signals, this converter maintains signal integrity, even in noisy environments.
· From freezing cold to scorching heat, the AD2S1205WSTZ thrives in extreme conditions, with a temperature range spanning from -40°C to 125°C.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the AD2S1205WSTZ:
Type | Parameter |
Converter Type | Resolver to Digital |
Resolution (bit) | 12 |
Accuracy (arcmin) | ±22 |
Typical Reference Frequency (kHz) | 20(Max) |
Typical Tracking Rate (r/s) | 750 |
Digital Interface Type | Serial (3-Wire, SPI)|Parallel |
Input Signal Type | Differential |
Velocity Output | Yes |
Minimum Single Supply Voltage (V) | 4.75 |
Typical Single Supply Voltage (V) | 5 |
Maximum Single Supply Voltage (V) | 5.25 |
Maximum Input Voltage | 4Vp-p |
Maximum Common Mode Input Voltage | 0.1Vp |
Typical Voltage Reference | 2.47V |
Maximum Supply Current (mA) | 20 |
Power Supply Type | Single |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 10 |
Package Length | 10 |
PCB changed | 44 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 44 |
Lead Shape | Gull-wing |
Applications
The versatility and reliability of the AD2S1205WSTZ make it ideal for various applications, particularly in the automotive industry:
· Automotive: Essential for electronic power steering, stability control systems, and other precision position sensing needs.
· Industrial Machinery: Used in robotics and CNC machines where precise motor control and position feedback are critical.
· Aerospace: Suitable for flight control systems requiring high-accuracy position data.
· Renewable Energy: Employed in wind turbines and solar tracking systems for optimal alignment and performance.
AD2S1205WSTZ's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
In the ever-evolving landscape of automotive electronics, precision is non-negotiable. The ADI AD2S1205WSTZ stands as a testament to this principle, offering unrivaled accuracy, versatility, and reliability in resolver to digital conversion. From steering control systems to engine management, this innovative device redefines the benchmarks of performance in automotive applications, driving the industry towards a future of unparalleled efficiency and safety.
