AT24C02C-SSHM-T: Features, Specs & More
In the ever-evolving world of electronics, choosing the right components for your projects is crucial. One such essential component is the EEPROM (Electrically Erasable Programmable Read-Only Memory). In this comprehensive article, we'll delve into the intricacies of the AT24C02C-SSHM-T, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
AT24C02C-SSHM-T's Manufacturer
AT24C02C-SSHM-T's Overview
The Microchip AT24C02C-SSHM-T is an EEPROM (Electrically Erasable Programmable Read-Only Memory) chip designed to store and retrieve data in electronic devices. With a chip density of 2K bits and an organization of 256x8, it offers a compact yet powerful solution for various applications.
Key Features
Let's delve into the standout features that make the AT24C02C-SSHM-T a standout in the world of electronics:
· The AT24C02C-SSHM-T boasts a 2K-bit density, organized as 256 x 8, providing ample storage for small data requirements.

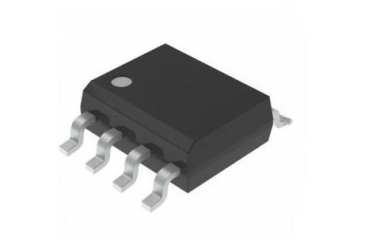

· Housed in an 8-pin SOIC package, it offers convenience and reliability in deployment.
· It operates within a wide voltage range from 1.7V to 5.5V, making it compatible with various power supplies.
· The chip uses a Serial-I2C interface, facilitating easy communication with other microcontrollers and devices.
· With an operating current of just 3 mA, it is highly power-efficient.
· It can operate in temperatures ranging from -40°C to 85°C, suitable for various environmental conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the AT24C02C-SSHM-T:
Type | Parameter |
Chip Density (bit) | 2K |
Organization | 256x8 |
Address Bus Width (bit) | 3 |
Programmability | Yes |
Data Retention (Year) | 100 |
Max. Access Time (ns) | 550 |
Maximum Operating Frequency (MHz) | 1 |
Interface Type | Serial-I2C |
Minimum Operating Supply Voltage (V) | 1.7 |
Typical Operating Supply Voltage (V) | 1.8|2.5|3.3|5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Operating Current (mA) | 3 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Hardware Data Protection | Yes |
Packaging | Tape and Reel |
Number of Bits per Word (bit) | 8 |
Mounting | Surface Mount |
Package Height | 1.48(Max) |
Package Width | 3.99(Max) |
Package Length | 4.98(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | SOIC N |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The versatility of the AT24C02C-SSHM-T makes it suitable for a variety of applications across different industries. Some of the key applications include:
· Automotive Systems: Due to its AEC-Q100 qualification, it is ideal for use in automotive electronics, including engine control units, infotainment systems, and more.
· Industrial Automation: Its robustness and wide operating temperature range make it perfect for industrial environments where reliability is paramount.
· Consumer Electronics: This EEPROM can be used in various consumer electronic devices such as digital cameras, personal computers, and home automation systems.
· Medical Devices: The chip's reliability and data retention capabilities are crucial for medical devices that require consistent performance over time.
AT24C02C-SSHM-T's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
The Microchip AT24C02C-SSHM-T EEPROM is a powerful, reliable, and versatile memory chip that excels in various applications, from automotive to consumer electronics. Its comprehensive feature set and robust specifications make it an excellent choice for projects requiring dependable data storage solutions.
