XR82C684CJ-F: Features, Specs & More
Welcome to our comprehensive guide on the MaxLinear XR82C684CJ-F, a revolutionary component in the realm of electronics. In this comprehensive article, we'll delve into the intricacies of the XR82C684CJ-F, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
XR82C684CJ-F's Overview

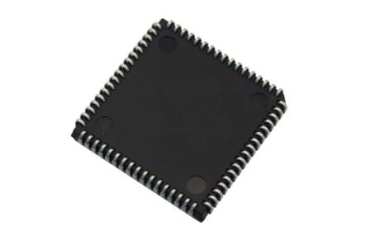

MaxLinear XR82C684CJ-F is an advanced UART (Universal Asynchronous Receiver-Transmitter) chip designed to facilitate seamless communication between devices. It boasts four channels per chip, with a 3-byte FIFO (First In, First Out) for both transmission and reception. This versatile component operates at a voltage range of 4.75V to 5.25V, making it compatible with a wide array of electronic systems.
Key Features
Let's delve into the standout features that make the XR82C684CJ-F a standout in the world of electronics:
· With four channels per chip, XR82C684CJ-F enables simultaneous communication between multiple devices.
· The 3-byte FIFO buffer ensures smooth data transmission and reception, minimizing latency and enhancing efficiency.
· Equipped with 16 General Purpose Input/Output pins, the XR82C684CJ-F facilitates seamless integration with external peripherals and sensors.
· Automatic hardware flow control enhances data integrity and prevents data loss during high-speed transmissions.
· Operating between 4.75V to 5.25V, XR82C684CJ-F ensures compatibility with various electronic systems.
· Leveraging CMOS (Complementary Metal-Oxide-Semiconductor) process technology, this chip strikes the perfect balance between performance and power efficiency.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the XR82C684CJ-F:
Type | Parameter |
Number of Channels per Chip | 4 |
Transmit FIFO (byte) | 3 |
Receive FIFO (byte) | 3 |
Number of GPIOs | 16 |
Maximum Data Rate | 1Mbps |
Transmitter and Receiver FIFO Counter | No |
Process Technology | CMOS |
Minimum Operating Supply Voltage (V) | 4.75 |
Maximum Operating Supply Voltage (V) | 5.25 |
Typical Operating Supply Voltage (V) | 5 |
Maximum Supply Current (mA) | 15 |
Minimum Operating Temperature (°C) | 0 |
Maximum Operating Temperature (°C) | 70 |
DMA Support | No |
False Start Bit Detection | No |
Automatic Software Flow Control | No |
Automatic Hardware Flow Control | Yes |
Mounting | Surface Mount |
Package Height | 3.68(Min) |
Package Width | 24.23 |
Package Length | 24.23 |
PCB changed | 68 |
Standard Package Name | LCC |
Supplier Package | PLCC |
Pin Count | 68 |
Lead Shape | J-Lead |
Applications
MaxLinear XR82C684CJ-F finds its application in a multitude of electronic systems, including but not limited to:
· Data Communication: Facilitating serial communication in networking equipment, industrial automation, and embedded systems.
· Peripheral Interface: Serving as a bridge between microcontrollers and peripheral devices such as sensors, displays, and actuators.
· Embedded Systems: Integrating into embedded systems for real-time data exchange and control in automotive, medical, and consumer electronics.
XR82C684CJ-F's Manufacturer
Founded in 2003, MaxLinear is a fabless company that provides systems-on-chip (SoC) solutions used for broadband, mobile and wireline infrastructure, data center, and industrial and multi-market applications. MaxLinear’s highly integrated semiconductor devices and platform-level solutions are primarily manufactured using low-cost CMOS process technology. It is a New York Stock Exchange-traded company.
Conclusion
In conclusion, the MaxLinear XR82C684CJ-F represents the epitome of excellence in UART technology. With its robust features, impeccable performance, and versatile applications, this chip empowers engineers and developers to bring their boldest ideas to life.
